| 0742-001

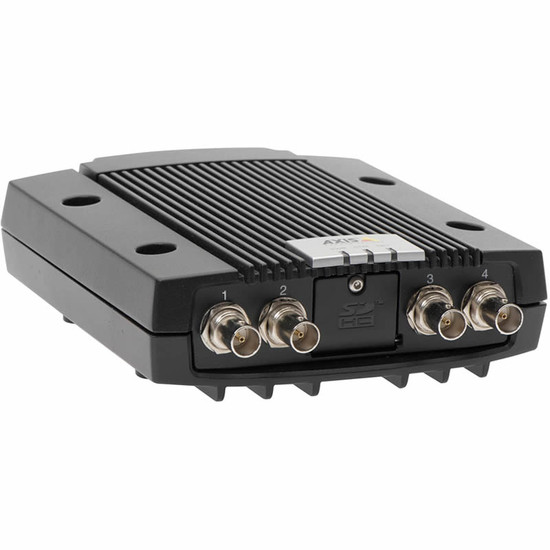

Axis Q7424-R rugged network video encoder with two-way audio, H.264, edge storage, tamper detection and PoE ~ 4 port

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
  • PoE powers camera through network cable
  • Edge storage (SD card not included)
  • Two-way audio support
  • Encode video from up to 4 analogue sources
Hurry! Only left

This product has been discontinued, for alternative models please see Network Video Encoders

Overview of the 0742-001 Axis Q7424-R

Robust and durable Q7424-R network video encoder from Axis designed for use in tough environments. With up to 4 channels, edge recording to SD card, intelligent video features including tamper, audio and motion detection, dual codec, SFP slot for fibre connection and PoE.

The Axis Q7424-R network video recorder enables up to 4 analogue CCTV cameras to be migrated to an IP video system using existing infrastructure. Rugged and able to withstand shocks, vibrations and temperature fluctuations, the Q7424-R encoder delivers a robust and hard-wearing solution suitable for demanding applications. Built-in SD card recording (card not included) provides cost-effective storage of video data without the need for a centralised device. Two-way audio support enables sound recording from the camera to assist with event analysis.

With intelligent video features including tampering alarm and video and motion detection, the Axis Q7424-R delivers powerful event management and accurate monitoring. H.264 and Motion JPEG are both supported by the Q7424-R and provide streams up to D1 resolution at full frame rate. H.264 provides reduced file size with minimal affect on quality. Power over Ethernet (PoE) provides power to the camera though the network cable, providing low-cost installation, whilst an SFP slot enables fibre connectivity for cost-effective cabling to the network over long distances.

Please note: this video encoder does not come with a power supply, please select a PoE midspan from the drop down menu above if required.

Key features & benefits

  • 4 ports enable the migration of up to 4 analogue cameras into an IP video system, ideal for small CCTV installations
  • Designed to withstand harsh conditions including shock, extreme temperatures and vibrations, suitable for demanding applications
  • External microphone or line input, and line output enables the encoder to capture audio from the camera, enhancing usefulness of recorded video data
  • On-board recording to SD card provides low-cost local storage which is ideal for small security systems
  • PoE provides cost-effective and installer-friendly set-up, allowing power to be fed through the network cable
  • Tampering alarm, audio and motion detection and Axis Camera Application Platform offer advanced event management capabilities for secure monitoring
  • H.264 and Motion JPEG are both offered as compression formats to best suit the requirement
  • Encoder can be cabled to the network over long distances cost-effectively through the SFP slot for fibre connection

Compatible recording platforms:

  • Software:
    • Axis Camera Station
    • Milestone XProtect

Typical applications

With 4 ports, PoE, SD card recording and rugged design, the Axis Q7424-R network video encoder provides an easy-to-install, robust solution to migrate up to 4 analogue CCTV cameras into an IP video system, ideal for tough environments such as airports, traffic monitoring and in factories.



  • Installation guide
  • CD with installation and management tools
  • Software and user manual
  • Windows decoder user license


  • PoE midspan (please select from the above drop down menu if required)
Back To Top

Key technical features for 0742-001 Axis Q7424-R video encoder

Power:8-28 V DC, max 10 W, 20-24 V AC, max 15.6 VA, Power over Ethernet IEEE 802.3af Class 3
Audio:two-way, AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, configurable bit rate, one external microphone or line input and one line output
Memory:512 MB RAM, 128 MB Flash
Resolution:176x120 to 720x576, 176x120 to 1536x1152 for quad view
Compression:H.264 (MPEG-4 Part 10/AVC) baseline and main profile, Motion JPEG
Image settings:compression, color, brightness, contrast, aspect ratio correction, mirroring of images, text and image overlay, privacy mask, enhanced deinterlace filter, video termination, anti-aliasing, temporal noise filtering, rotation: 90°, 180°, 270°
Frame-rate:H.264: 30/25 (NTSC/PAL) fps, 15 fps in quad view in full resolution, Motion JPEG: 30/25 (NTSC/PAL) fps, 15 fps in quad view in full resolution
Viewing, detection & recording
Video streaming:multi-stream H.264 and Motion JPEG: one H.264 and one JPEG stream on each channel (8 streams in total) in full frame rate, individually configured streams in max. resolution at 30/25 fps; more streams if identical or limited in frame rate/resolution
Audio compression:AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, configurable bit rate
Simultaneous users:not given
Alarm trigger:video motion detection, active tampering alarm, audio detection, video loss, Axis Camera Application Platform
Alarm actions:file upload via FTP, HTTP and email, notification via email, HTTP and TCP, PTZ preset, external output activation, video and audio recording to edge storage, pre- and post-alarm video buffering
Card recording:SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included); support for recording to network share (network-attached storage or file server)
Bandwidth control:controllable frame rate and bandwidth, VBR/CBR H.264
Power:8-28 V DC, max 10 W, 20-24 V AC, max 15.6 VA, Power over Ethernet IEEE 802.3af Class 3
Network:10BASE-T/100BASE-TX PoE
Audio:terminal block for mono microphone or line input, 6Vpp max, terminal block for mono audio output, 2Vpp max at 1kohm
Video:4 x analogue composite video BNC inputs
Other:terminal block for four configurable external inputs/outputs, terminal block for RS-485/422 (full duplex), AC/DC input terminal block, 1 Gbps SFP slot
Dimensions:L 167mm x W 135mm x D 45mm
Weight:1.8kg (net)
Warranty:3 years
Operating temperatures:-40°C to 75°C
Protocols supported:IPv4/v6, HTTP, HTTPSa, IEEE 802.1Xa, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Security:password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log
Software:open API for software integration, including VAPIX«; specifications at, Axis Video Hosting System (AVHS) with one-click camera connection
ONVIF compliant:yes
