A suitable solution for detailed monitoring of wide indoor locations, this PTZ dome from Axis features full pan-tilt functionality as well as intelligent video analytics and advanced imaging technologies for improved imaging.
Part of the advanced Axis Q60 series, this indoor PTZ delivers smooth HD 720p resolution at up to 50 frames per second. An ideal solution for monitoring busy locations, users can also examine regions of interest in detail using the unit's full pan/tilt functionality and 30x optical zoom. Additional features include support for Power-over-Ethernet Plus (PoE+) and a range of advanced imaging technologies for clear image capture - in any lighting condition.
Variable pan/tilt movements (including 360° pan), alongside powerful 30x optical zooming, allow users to quickly and precisely navigate across large locations - ideal when closely monitoring a person or incident. To enhance scene awareness, the unit also supports Autotracking 2 with click-and-track functionality. Additionally, the handy orientation aid enables dynamic text overlays and a compass symbol for quick orientation when using multiple monitors.
The inclusion of Axis' 7th generation ARTPEC chip enables further improvement of Axis' advanced imaging technologies - allowing the camera to deliver clear video in complex lighting conditions. Wide dynamic range (WDR) technology ensures the capture of details in high-contrast scenes, whilst Axis' advanced Lightfinder 2.0 technology supports the capture of full-colour images - even in extreme levels of low light.
Video motion detection alarms can be configured to alert users of activity in pre-defined areas. When used in conjunction with Axis' Active Gatekeeper, these alarms can also pan the camera to a preset position when motion is detected and then automatically track the object - ensuring all movement is captured. Users can also take advantage of the ability to listen to activity happening close to the camera when a microphone (not included) is connected through the integrated I/O ports.
With support for High Power-over-Ethernet (PoE+), the camera is supplied with both power and network connectivity via a single cable – simplifying installation. Axis’ Zipstream technology helps to lower bandwidth and storage levels by an average of up to 50%. It optimises the video stream in real-time, allowing important details to be retained while unnecessary data is removed. Additionally, this model includes a range of handy features to assist in the prevention of unauthorised access. Signed firmware and secure boot also help to ensure the integrity and authenticity of the camera's firmware.

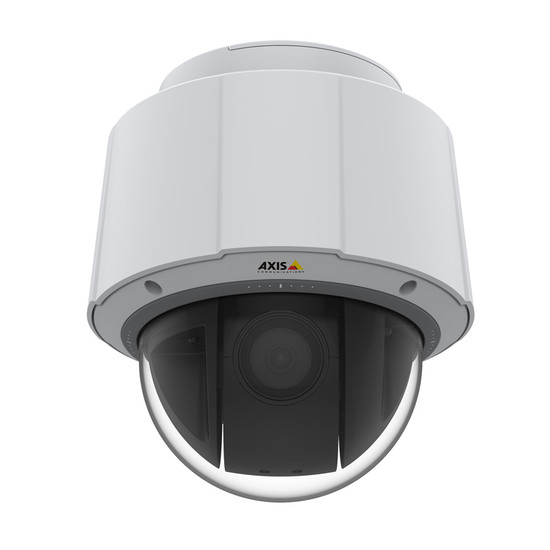

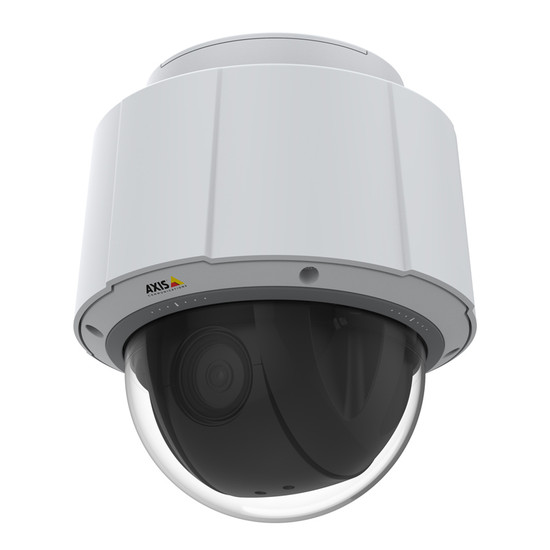

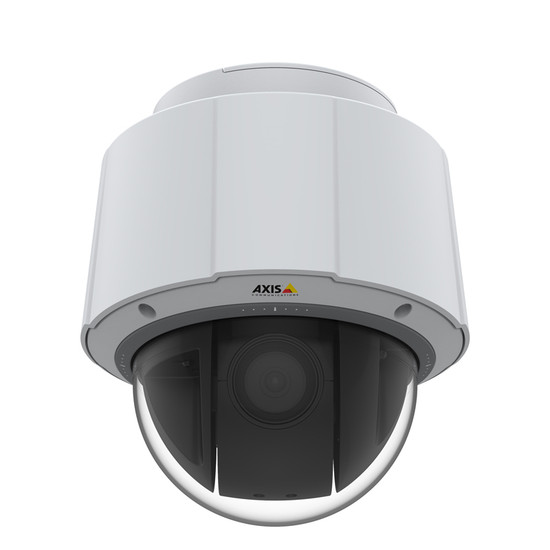

A suitable solution for detailed surveillance of wide indoor locations, the Axis Q6074 PTZ dome network camera features 360° panning, 30x optical zoom and HD 720p capability. Typical applications include large open-plan offices manufacturing plants and shopping centres.
Included:
Optional (please select from the accessories tab if required):
Camera |
|
Environment: | indoor (IP52-rated) |
Type: | PTZ dome |
Sensor: | 1/2.8” Progressive scan CMOS |
Lens: | 4.25-127.5 mm, F1.6-4.2 Horizontal field of view: 63.8°-2.6° (720p) Vertical field of view: 38.0°-1.47° (720p) Autofocus, auto-iris |
PTZ: | pan: 360° endless, 0.05°–450°/s, tilt: 180°, 0.05°–450°/s, zoom: 30x optical, 12x digital, total 360x zoom E-flip, 256 preset positions, tour recording (max 10, max duration 16 minutes each), guard tour (max 100), control queue, on-screen directional indicator, orientation aid PTZ, set new pan 0°, adjustable zoom speed, focus recall |
Power: | Axis PoE+ midspan 1–port: 100–240 V AC, max 22.4 W IEEE 802.3at Type 2 Class 4 Camera PoE consumption: typical 11 W, max 17.1 W Multiconnector: 24 V DC +/- 10%, typical 10.5 W, max 16.1 W 24 V AC +/- 10%, typical 16.5 VA, max 25.3 VA |
Memory: | 1024 MB RAM, 512 MB Flash |
Video |
|
Resolution: | HDTV 720p 1280x720 to 320x180 |
Compression: | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
Frame-rate: | up to 50/60 fps (50/60 Hz) in HDTV 720p |
Bandwidth control: | multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
Day/night: | automatically removable infrared cut-filter |
Minimum illumination: | colour: 0.1 lux at 30 IRE, F1.6, B/W: 0.002 lux at 30 IRE, F1.6, colour: 0.15 lux at 50 IRE, F1.6, B/W: 0.003 lux at 50 IRE, F1.6 |
Video overlay: | text and image |
Imaging: | manual shutter time, compression, colour, brightness, sharpness, white balance, exposure control, exposure zones, fine tuning of behaviour at low light, rotation: 0°, 180°, text and image overlay, polygon privacy masks, image freeze on PTZ, automatic defog, backlight compensation, scene profiles Wide Dynamic Range (WDR): Up to 120 dB depending on scene, highlight compensation |
Viewing, detection & recording |
|
Privacy masking: | not given |
Number of users: | not given |
Alarm detection: | audio: audio detection, device status: above operating temperature, above or below operating temperature, below operating temperature, fan failure, IP address removed, network lost, new IP address, shock detected, storage failure, system ready, within operating temperature, edge storage: recording ongoing, storage disruption, I/O: digital input, manual trigger, virtual input, PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready Scheduled and recurring: scheduled event, video: live stream open |
Alarm action: | day/night mode, overlay text, video recording to edge storage, pre- and post-alarm video buffering, send SNMP trap, PTZ: PTZ preset, start/stop guard tour File upload via FTP, SFTP, HTTP, HTTPS network share and email, notification via email, HTTP, HTTPS and TCP, external output activation, audio recording to edge storage, play audio clip |
Pre-/post-alarm buffer: | yes |
On-camera recording: | support for SD/SDHC/SDXC card and support for SD card encryption |
Direct-to-NAS storage: | yes |
Recording software supported: | Axis Camera Station, Axis Companion software |
Connections |
|
Power: | Axis PoE+ midspan 1–port: 100–240 V AC, max 22.4W IEEE 802.3at Type 2 Class 4 Camera PoE consumption: typical 11W, max 17.1W, Multiconnector: 24 V DC +/- 10%, typical 10.5W, max 16.1W 24 V AC +/- 10%, typical 16.5 VA, max 25.3 VA |
Network: | RJ45 for 10BASE-T/100BASE-TX PoE |
SD card slot: | SD card |
Other: | RJ45 10BASE-T/100BASE-TX PoE, multiconnector (cable sold separately) for AC/DC power, 4 configurable alarm inputs/outputs, mic in, line mono input, line mono output to active speaker |
Other |
|
Dimensions: | hard ceiling: Ø198mm x 240mm, drop ceiling: Ø248mm x 243mm |
Weight: | 2.85 kg, with drop-ceiling mount: 3.5 kg |
Casing: | IP52-rated metal casing (aluminium), acrylic (PMMA) clear dome |
Warranty: | 5 years |
Mounting methods: | wall or ceiling (mounting brackets not included), recessed mount for hard and drop ceilings (included) |
Operating temperatures: | 0 °C to 50 °C |
Power consumption: | Axis PoE+ midspan 1–port: 100–240 V AC, max 22.4W IEEE 802.3at Type 2 Class 4 Camera PoE consumption: typical 11W, max 17.1W |
Dynamic DNS: | yes |
Protocols supported: | IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP, LLDP |
QoS: | yes |
Security: | password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, protection of cryptographic keys with FIPS 140-2 certified TPM 2.0 module |
ONVIF compliant: | yes, profile G, S and T |
