| 0907-002

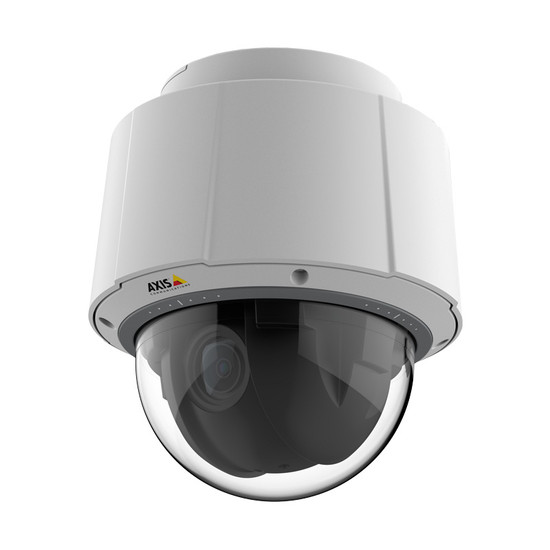

Axis Q6055 indoor PTZ dome IP camera with HD 1080p resolution, 360° pan, 32x optical zoom, Zipstream and High PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is now discontinued, an alternative model is the Axis Q6075

Overview of the Axis Q6055

This indoor PTZ dome is capable of producing smooth HD 1080p video footage at full frame rate, complete with true day/night recording. Part of the advanced Axis Q60 series, the unit includes full pan/tilt functionality and a 32x optical zoom for detailed examination of the scene. In addition, the camera supports focus recall technology and is supplied with a High Power-over-Ethernet (PoE) midspan.

Using the camera’s 360° pan and variable pan/tilt movements, users are able to precisely navigate across a wide area - particularly helpful when closely monitoring a person or incident. Focus recall is a unique feature that provides instant focus in predefined areas and improves PTZ performance in challenging lighting conditions. It removes the need to manually focus or wait for autofocus to adjust and is useful in scenarios that require a lot of manual operation using a joystick. Imaging technologies such as wide dynamic range and noise reduction are also included to help deliver clear, high quality images.

Configurable motion detection alarms help alert users of activity in pre-defined areas and when combined with Axis’ Active Gatekeeper, will pan the camera to a preset position when motion is detected and then automatically track the object - ensuring all activity is captured. Basic Analytics are also included such as object counting and object removal to help enhance scene awareness and provide reliable security monitoring. An optional multi-connector cable can be connected to enable audio recording as well as two-way communication with those close to the camera. This multi-connector also supports the connection of external devices through I/O ports to enhance alarm signalling.

Axis' advanced Zipstream technology analyses and optimises the video stream in real time, recording interesting detail in high quality, whilst filtering other areas out to reduce bandwidth and storage use. With support for High PoE, the camera can receive power and network connectivity over a single cable, resulting in a cost-effective installation solution. Additionally, an SD card (not included) can be used for local alarm recording and also as a backup solution in the case of network failure.

Key features & benefits

  • HD 1080p resolution at 25 fps delivers high quality IP CCTV monitoring
  • Full PTZ functionality and variable speed pan/tilt movements provide responsive navigation
  • True day/night recording provides 24 hour monitoring of indoor scenes
  • 32x optical zoom enables detailed, close-up viewing of specific areas for event analysis and identification
  • Focus recall improves PTZ performance and offers instant focus in predefined areas
  • Wide Dynamic Range technology improves image quality in complex lighting conditions
  • Low-light images have less noise and require less bandwidth with 3D noise reduction
  • Intelligent video analytics, motion detection alarms and Axis’ Active Gatekeeper help to provide reliable security monitoring
  • Optional multi-connector supports the connection of external devices to provide two-way audio and enhanced alarm signalling
  • Reduced bandwidth levels with Axis’ award winning Zipstream technology
  • High PoE supplies power to the camera through the network cable for cost-effective installation
  • Built-in SD card storage provides a data back up in the event of network failure

Compatible recording platforms


  • Axis Camera Station
  • Milestone XProtect

Typical applications

The Axis Q6055 PTZ dome network camera is suitable for indoor installations that require wide areas to be monitored, 24 hours a day. Typical applications include manufacturing plants, large retail stores and train station terminals.



  • Axis High PoE 60 W midspan 1-port
  • RJ45 Push-pull Connector
  • Sunshield
  • Installation Guide
  • Windows decoder 1-user license

Optional (please select from the drop down menu above if required):

  • SD card
  • Multi-connector cable (5502-491)
  • Mounting accessories
Back To Top

Key technical features of the Axis Q6055

Environment: indoor
Type: PTZ dome
Sensor: 1/2.8" progressive scan CMOS
Lens: f=4.44-142.6 mm, F1.6-4.41, autofocus, auto iris, horizontal angle of view: 62.8° - 2.23°
PTZ: pan: 360° endless, 0.05-450°/s, tilt: 180°, 0.05-450°/s, zoom: 32x Optical, 12x digital, total 384x zoom, e-flip, 256 preset positions, tour recording, guard tour, control queue, on-screen directional indicator, set new pan 0°, adjustable zoom speed, focus recall
Power: Axis High PoE midspan 1-port: 100-240 V AC, max 74W
Memory: 512 MB RAM, 128 MB Flash
Resolution: (1920 x 1080) to (320 x 180)
Compression: H.264 (MPEG-4 Part 10/AVC) baseline, main and high profiles, Motion JPEG
Frame-rate: HD 720p: 50 fps, HD 1080p: 25 fps
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, VBR/MBR H.264, Axis' Zipstream technology
Day/night: automatically removable infrared cut-filter
Minimum illumination: colour: 0.3 lux at 30 IRE F1.6, B/W: 0.03 lux at 30 IRE F1.6, colour: 0.5 lux at 50 IRE F1.6, B/W: 0.04 lux at 50 IRE F1.6
Video overlay: text and image
Imaging: compression, colour, brightness, sharpness, white balance, exposure control, exposure zones, rotation: 0°, 180°, backlight compensation, fine tuning of behaviour at low light, defog, manual shutter time, image freeze on PTZ, wide dynamic range
Viewing, detection & recording
Privacy masking: 32 individual 3D privacy masks
Number of users not given
Alarm detection: video motion detection, autotracking, Active Gatekeeper, audio detection, support for Axis Camera Application Platform, basic analytics: object removed, enter/exit detector, fence detector, object counter
Alarm action: day/night mode, overlay text, video recording to edge storage, send SNMP trap, PTZ preset, start/stop guard tour, file upload via FTP, SFTP, HTTP, HTTPS network share and email, notification via email, HTTP, HTTPS and TCP, external output activation, audio recording to edge storage, play audio clip
Pre-/post-alarm buffer: yes
On-camera recording: support for SD/SDHC/SDXC card
Direct-to-NAS storage: yes
Recording software supported: Axis Camera Station
Power: High PoE midspan 1-port: 100-240 V AC (included)
Network: RJ45 for 10BASE-T/100BASE-TX PoE
SD card slot: SD card
Other: multi-connector cable (not included)
Dimensions: hard ceiling: Ø198 x 240 mm, drop ceiling: Ø248 x 243 mm
Weight: camera: 2.6kg, with drop ceiling mount: 3.2kg
Casing: IP52-rated, metal casing (aluminium) acrylic (PMMA) clear dome
Warranty: 3 years
Mounting methods: ceiling mount included, other brackets sold separately
Operating temperatures: 0°C - 50°C
Power consumption: typical: 16 W, max: 60 W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, NTCIP
QoS: yes
Security: password protection, IP address filtering, HTTPS encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralised certificate management
ONVIF compliant: yes
