| 0664-001

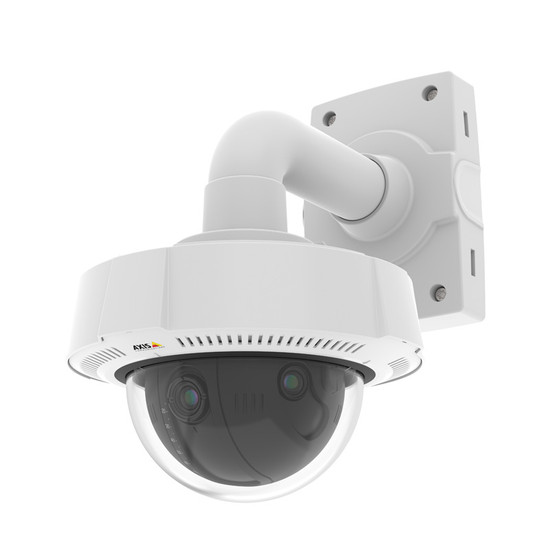

Axis Q3709-PVE outdoor IP camera with 4K Ultra HD, multiple sensors, panoramic viewing and digital PTZ

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

Suitable for exposed locations, this vandal-resistant Axis dome IP camera features multiple sensors that enable panoramic overviews of the scene. This makes it an ideal choice for observing large external areas - 24 hours a day.

  • Digital PTZ controls
  • IP66 & IK10-rated casing
  • PoE+ supplies power and connectivity
  • 3 sensors enable a 180° panoramic view
  • 4K Ultra HD resolution
Hurry! Only left

This product is discontinued, an alternative model is the Axis Q3819-PVE

Overview of the Axis Q3709-PVE

This advanced dome network camera by Axis features a protective housing suitable for exposed external conditions. Featuring multiple sensors that are able to provide 180° panoramic views and capture movement smoothly in 4K Ultra HD. The camera's infrared (IR) cut filter enables round the clock surveillance and is a robust 24/7 CCTV solution, ideal for city surveillance or large warehouse loading bays. Additional features of this high quality model include digital PTZ viewing and easy installation with PoE+.

The camera features three 1/2.3" progressive scan CMOS sensors that combine to provide a 180° panoramic view of the scene. The ability to capture complete coverage of the scene in high detail makes this model ideal for use within large external installations such as university campuses. With 4K Ultra HD capability at 25 fps or 11 megapixel resolution at 16 fps, this advanced IP camera provides the user with highly detailed images and smooth video quality. Installation is made quick and easy with the factory-focused fixed lenses, eliminating the need for manual focusing during set-up.

The camera’s housing is IP66 and IK10 rated, providing durable protection against rain, dust and vandalism attempts. Additionally, the camera's housing features a NEMA 4X rating, offering protection against the damage from external ice formation, salt spray and windblown dust.

Video motion detections such as cross line detection and tampering alarm technologies enable dynamic scene awareness and when triggered, can send alerts to the user via email notification.

With support for digital pan, tilt, zoom (PTZ) viewing, the user is able to examine the original image in greater detail – helpful for identification purposes.

Privacy masking enables the user to mask out areas within the field of view that may be private or sensitive and it can also lower bandwidth and storage by masking out irrelevant areas that do not need to be captured. Compression via either H.264 or Motion JPEG allows flexible storage and bandwidth management and with support for PoE+, both network connection and power are able to be fed to the camera through a single cable.

Please note: there is no power supply included with this unit. It is power over ethernet capable.

Key features & benefits

  • Capable of capturing 4K Ultra HD resolution at up to 25 fps - ideal for the coverage of large areas such as cities or industrial sites
  • 24 hour high quality video capture with built-in IR-cut filter for true day/night functionality
  • 3 separate sensors enable a 180° panoramic view of the scene, obtaining complete coverage of the desired area
  • Factory-focused lenses eliminate the need for manual focusing - enabling quick and easy installation
  • IP66 and IK10 rated for durable outdoor use in harsh weather conditions
  • Provides secure and accurate surveillance with intelligent video analytics
  • H.264 or Motion JPEG compression provides flexible storage and bandwidth management
  • PoE+ supplies power to the camera through the network cable for cost-effective installation

Compatible recording platforms

  • Axis Camera Station
  • Milestone XProtect

Typical applications

The Axis Q3709-PVE is an advanced CCTV solution providing smooth video at up to 4K Ultra HD resolution. Its multiple sensors enable a 180° panoramic view of the scene, making it an ideal choice for the observation of large external areas such as airports, cities and industrial depots.



  • RJ45 Push-pull connector (IP66)
  • L-key, Weather shield
  • Installation Guide
  • Windows decoder 3-user license


  • PoE+ midspan
  • Mounting accessories
Back To Top

Key technical features of the Axis Q3709-PVE


Environment: outdoor (IP66, IK10, NEMA 4X rated)
Type: fixed dome
Sensor: 3 x 1/2.3” progressive scan CMOS
Lens: 3 x lenses, fixed focus, 5.0 mm, F2.8, combined horizontal angle of view: 180°
Power: Power over Ethernet IEEE 802.3at Type 2 Class 4, max. 23.1 W, typical 16.7 W
Memory: 3 GB RAM, 768 MB Flash
Audio: not given


Resolution: 3 x (3840 x 2880 to 320 x 240)
Compression: H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG
Frame-rate: 3 x 4K Ultra HD: Up to 25/30 fps with power line frequency 50/60 Hz, 3 x 11 MP: Up to 16/20 fps with power line frequency 50/60 Hz
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, VBR/CBR H.264
Day/night: automatically removable infrared cut-filter
Minimum illumination: colour: 2 lux, F2.8, b/w: 0.4 lux, F2.8
Zoom: digital PTZ, pre-set positions, guard tour
Video overlay: text and image
Imaging: compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behaviour at different light levels, WDR - dynamic contrast, text and image overlay, privacy mask, capture alignment

Viewing, detection & recording

Privacy masking: yes
Number of users: not given
Alarm detection: video motion detection, active tampering alarm, AXIS Camera Application Platform (ACAP) enabling installation of Axis video motion detection 3, Axis cross line detection and Axis digital auto-tracking
Alarm action: file upload: FTP, SFTP, HTTP, HTTPS, network share and email, notification: email, HTTP, HTTPS, TCP and SNMP trap, video recording to edge storage, overlay text
Pre-/post-alarm buffer: yes
On-camera recording: support for recording to dedicated network-attached storage (NAS)
Direct-to-NAS storage: yes


Power: Power over Ethernet IEEE 802.3at Type 2 Class 4, max. 23.1 W, typical 16.7 W
Network: RJ45 10BASE-T/100BASE-TX/1000BASE-T


Dimensions: 205 x 205 x 172 mm
Weight: 2.2kg (with weather shield)
Casing: IP66 and NEMA 4X-rated, IK10 impact-resistant aluminium casing with transparent, polycarbonate cover and dehumidifying membrane
Warranty: 5 years
Mounting methods: optional mounting methods available
Operating temperatures: -40°C to 55°C
Power consumption: max. 23.1W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS: yes
Security: password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management, cross-origin resource sharing
ONVIF compliant: yes, profile S
