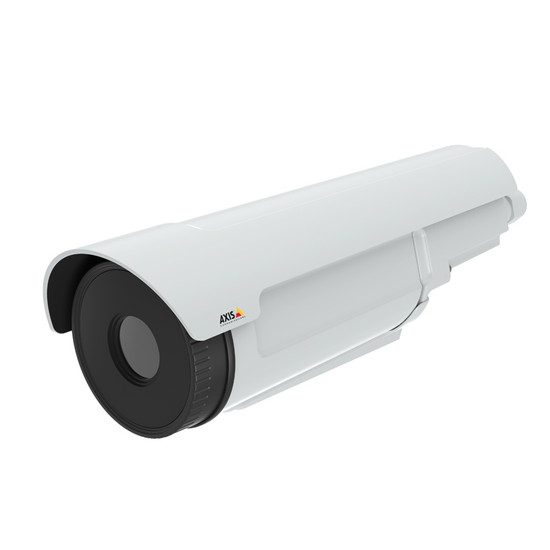

Axis Q1942-E PT outdoor thermal IP camera with 640x480 resolution thermal imaging, Zipstream and pan-tilt mount

Overview of the Axis Q1942-E PT

This outdoor-ready bullet camera from Axis delivers thermal imaging in 640 x 480 resolution that can be scaled up to 800 x 600 (SVGA). Mounted on a pan-tilt (PT) motor, this thermal IP camera offers reliable security monitoring and precise navigation across areas that are often in complete darkness or subject to smoke, haze or fog. In addition, a choice of lens sizes is available and the unit can be easily installed using Power-over-Ethernet (PoE).

Designed for use in external locations, the camera’s IP67-rated aluminium housing also features a built-in window heater and can operate in temperatures as low as -40°C. Four different lens options allow users to select the most suitable angle of view (from 10° to 63°) to meet their monitoring requirements.

The camera is also equipped with a variety of image optimisation technologies that help to ensure the delivery of high-quality IP video. Electronic Image Stabilisation (EIS) is included to reduce the effects of camera movement from wind or vibrations, and Axis Corridor Format allows viewing in narrow scenes to be optimised by rotating the sensor 90° - preventing the recording of redundant areas.

A range of configurable video motion detection alarms are available which help to enhance security monitoring. Users can also be made aware of possible vandalism attempts thanks to the unit’s integrated shock detection technology which triggers an alert if the camera is subject to impact. An ideal choice for mission-critical applications, thermal imaging cameras are less sensitive to shadows and challenging light conditions which allows them to achieve high accuracy with fewer false alarms when compared to non-thermal network cameras.

Axis Zipstream is included to help lower bandwidth and storage levels by an average of up to 50%. This advanced technology optimises the video stream in real-time, allowing important details to be retained while unnecessary data is removed. In addition, data can be stored directly to the onboard MicroSD card (not included) for a handy backup of data if network connection is suddenly lost, and PoE support delivers power and network connectivity over a single cable.

Please note: there is no power supply included with this unit. It is power over ethernet capable.

Key features & benefits

• Thermal IP cameras provide reliable security surveillance and reduce the occurrence of false alarms
• Delivers thermal imaging in 640 x 480 resolution that can be scaled up to 800 x 600 (SVGA)
• Outdoor-ready housing is IP67-rated and can operate in temperatures as low as -40°C
• Pan-tilt mount allows the user to remotely move the camera and navigate across wide outdoor scenes
• Built-in window heater enables clear viewing in harsh weather conditions
• 10mm, 19mm, 35mm, and 60mm lens options allow detection performance to be optimised
• Electronic Image Stabilisation (EIS) provides smooth video footage if the camera is subject to vibrations
• Axis Corridor Format optimises the field of view in narrow scenes – capturing only what is essential
• Enhanced security monitoring with a range of configurable video motion detection alarms
• Axis Zipstream technology lowers bandwidth by analysing and optimising the video stream in real-time
• Support for PoE reduces cabling by delivering both power and network connectivity via a single cable
• Recordings can be stored locally to the on-board MicroSD card (not included) and used as a backup if the network fails

Compatible recording platforms:

• Axis Camera Station
• Milestone XProtect
• Morphean Cloud CCTV
• CamStreamer Cloud

Typical applications

The Axis Q1942-E PT thermal network camera delivers advanced detection in areas that require accurate and reliable security monitoring. Typical applications include military bases, prisons and power stations.

Accessories

Included:

• Choice of lens
• Installation guide
• Windows decoder 1-user licence
• Torx T20 screwdriver
• Terminal block connector

Optional:

• PoE midspan
• MicroSD card

Please note:

• Thermal imaging cameras are only sold to businesses and not to private individuals
• Export restrictions apply to certain countries
• Thermal cameras are non-returnable unless faulty and covered by manufacturer warranty

IMPORTANT WARNING: Thermal cameras are not suitable for coronavirus, fever or COVID-19 detection and we do not recommend their use for this purpose.

Mounting options

• • Wall & ceiling mounting - Axis T91A04 and Axis T91B53
  • Pole mounting - Axis T91A04 , Axis T91D62 and Axis T94N01G
  • Parapet mounting - Axis T91A04 and Axis T91D62
