Axis Communications | 0922-001
Axis Q1942-E outdoor thermal IP camera with 640x480 resolution thermal imaging, two-way audio, Zipstream and edge storage
This product is discontinued. The replacement model is
Axis Q1952-E thermal camera.
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
This outdoor thermal IP camera is designed for locations that require constant monitoring and accurate detection in any condition. A choice of lens sizes are also available and this unit can be installed easily using PoE.
- Thermal imaging in 640x480 resolution
- Choice of fixed lens: up to 63° view
- Audio I/O ports support external devices
- Corridor Format for viewing narrow scenes
- Edge recording (microSD card not included)
- Axis 5-year warranty
This product is now discontinued and replaced by the Axis Q1952-E outdoor thermal IP camera

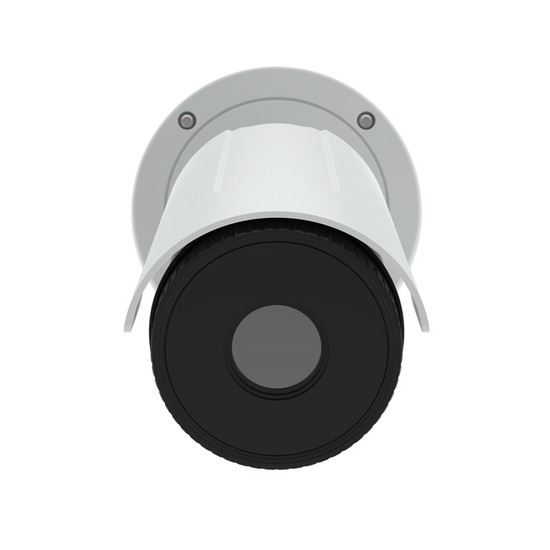

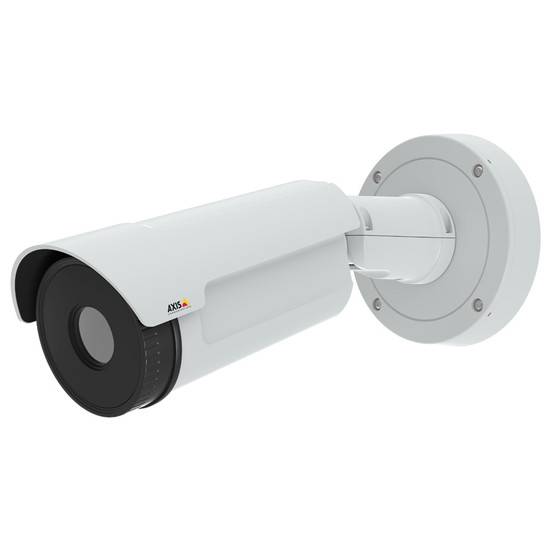

Overview of the Axis Q1942-E
This outdoor-ready thermal IP camera is part of the Axis Q19 series and delivers thermal imaging in 640 x 480 resolution that can be scaled up to 800 x 600 (SVGA). It offers reliable security surveillance in areas that are often in complete darkness or subject to smoke, haze or fog. A choice of fps options is available and the unit can be installed easily using Power-over-Ethernet (PoE).
The unit’s IP67-rated aluminium housing features an integrated window heater which allows it to be safely deployed in outdoor locations and operate continuously in temperatures as low as -40°C. A choice of lenses allows users to select the most suitable viewing angle (from 10° to 63°) for their monitoring requirements.
The camera produces high-quality images by utilising a variety of advanced features for image optimisation. Electronic Image Stabilisation (EIS) is included to ensure video is smooth and steady despite camera vibrations. In addition, Corridor Format helps to maximise the area of interest in narrow scenes by vertically orientating the video stream.
A microphone and speaker (not included) can be connected through the integrated audio I/O ports to enable two-way communication and also allow audio to be used as a detection method. Both audio and video motion detection alarms can be configured to help alert users of activity - delivering reliable and accurate IP CCTV monitoring. Support for Axis Perimeter Defender (licence available separately) enables highly accurate edge-based intrusion detection. Thermal cameras are less sensitive to issues with light conditions and shadows, achieving high accuracy with fewer false alarms when compared to non-thermal network cameras.
Axis Zipstream technology analyses and optimises the video stream in real-time, recording important details in high quality, whilst filtering out other areas to help reduce bandwidth and storage use. Data can be stored directly to the onboard MicroSD card (not included) for a handy backup of data if network connection is suddenly lost, and PoE support delivers power and network connectivity over a single cable.
Please note: there is no power supply included with this unit. It is power over ethernet capable.
Key features & benefits
- Thermal IP cameras provide reliable security monitoring with lower instances of false alarms
- Offers thermal imaging in 640 x 480 resolution that can be scaled up to 800 x 600 (SVGA)
- IP67-rated housing enables the camera to function in temperatures as low as -40°C
- Integrated window heater for clear images in harsh weather conditions
- Choice of 30 or 8.3 fps options allow detection performance to be optimised
- Electronic Image Stabilisation reduces the effects of camera movement for sharper image capture
- Axis Corridor Format maximises the coverage of important areas in narrow scenes by vertically orientating the video stream
- Audio I/O ports support two-way communication and allow sound to be recorded
- Video motion and audio detection methods can alert users of activity in the scene for reliable security monitoring
- Axis Zipstream technology helps lower bandwidth and storage requirements by analysing and optimising the video stream
- PoE support helps to reduce cabling and offers a cost-effective installation solution
- Edge recording onto MicroSD card (not included) provides a useful backup option in the event of network failure
Compatible recording platforms:
Typical applications
The Axis Q1942-E delivers reliable thermal imaging in locations that require constant surveillance and accurate detection in any condition. Typical applications include prisons, industrial sites and production lines.
Accessories
Included:
- Choice of lens
- Wall and ceiling mount bracket
- Installation guide
- Axis Motion Detection 3
- Windows decoder 1-user licence
- Torx T20 screwdriver
- Terminal block connector
Optional:
- PoE midspan
- MicroSD card
Please note:
- Thermal imaging cameras are only sold to businesses and not to private individuals
- Export restrictions apply to certain countries
- Thermal cameras are non-returnable unless faulty and covered by manufacturer warranty
IMPORTANT WARNING: Thermal cameras are not suitable for coronavirus, fever or COVID-19 detection and we do not recommend their use for this purpose.
Mounting options
-
- Wall mounting - accessories included
- Ceiling mounting - accessories included
- Pole mounting - Axis T91B47
- Parapet mounting - Axis T94V01C and Axis T91D62
Key technical features of the Axis Q1942-E
Camera |
|
| Environment: | outdoor (IP67) |
| Type: | thermal IP camera |
| Sensor: | uncooled Micro bolometer 640 x 480, pixel size: 17μm, spectral range: 8-14μm |
| Lens: | 10mm: 63° (F1.25), 19mm: 32° (F1.23), 35mm: 17° (F1.20), 60mm: 10° (F1.25) |
| Audio: | two-way, full duplex, external microphone input or line input, line output, AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, configurable bit rate |
| Power: | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3, typical 4.8 W, max 11.8 W |
| Memory: | 512 MB RAM, 256 MB Flash |
Video |
|
| Resolution: | sensor is 640 x 480, image can be scaled up to 800 x 600 (SVGA) |
| Compression: | H.264 main and baseline profiles (MPEG-4 Part 10/AVC), Motion JPEG |
| Frame-rate: | up to 8.3 fps and 30 fps |
| Bandwidth control: | controllable frame rate and bandwidth, VBR/MBR H.264, Axis Zipstream technology, at least three H.264 and Motion JPEG streams, simultaneous and individually configured in max. resolution in full frame rate |
| Light sensitivity: | NETD < 50 mK |
| Video overlay: | text and image |
| Imaging: | compression, brightness, exposure control, rotation, mirroring of images, Electronic Image Stabilisation, including Corridor Format |
Viewing, detection & recording |
|
| Privacy masking: | yes |
| Number of users: | not given |
| Alarm detection: | video motion detection 3, audio detection, shock detection, support for AXIS Camera Application Platform, temperature, external input |
| Alarm action: | file upload: FTP, SFTP, HTTP, HTTPS network share and email, notification: email, HTTP, HTTPS and TCP and SNMP trap, external output activation, video and audio recording to edge storage, play audio clip |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | support for microSD/microSDHC/microSDXC card, support for recording to dedicated network-attached storage (NAS) |
| Recording software supported: | Axis Camera Station |
Connections |
|
| Power: | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3, typical 4.8 W, max 11.8 W |
| Network: | RJ45 10BASE-T/100BASE-TX PoE |
| Audio: | external microphone or line input, line output |
| Other: | I/O connector for DC or AC input, two configurable inputs/outputs |
Other |
|
| Dimensions: | 105 (H) x 112 (W) x 344 (D) mm |
| Weight: | 10/19/35mm lens options: 2kg, 60mm |
| Warranty: | 5 years |
| Mounting methods: | wall and ceiling mount included |
| Operating temperatures: | -40°C to 60°C |
| Power consumption: | max 11.8W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb, network access control, digest authentication, user access log |
| ONVIF compliant: | yes, profile S |
