Mobotix | MX-M16TB
Mobotix M16 Thermal Radiometry IP camera
- 6MP resolution
- Thermal imaging in 336 x 252 resolution
- Various modular lens options
- Built-in microphone & speaker
- Moonlight technology included
- Mobotix 3-year warranty
Designed to provide accurate detection and reliable security monitoring, this outdoor thermal IP camera by Axis is mounted on a pan-tilt motor for precise navigation across wide scenes.

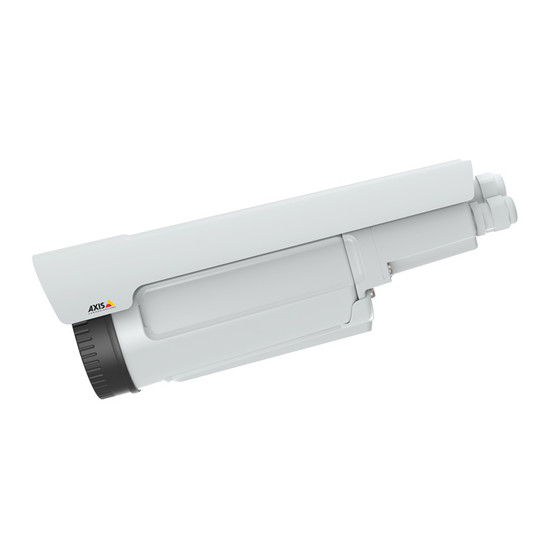

Overview of the Axis Q1941-E PT
This outdoor-ready thermal IP camera by Axis offers thermal imaging in 384 x 288 resolution that can be scaled up to 768 x 576. It delivers reliable security monitoring of areas that are often in complete darkness or subject to smoke, haze or fog. A choice of lenses is available and the unit is mounted on a pan-tilt (PT) motor for precise navigation across wide scenes. The unit also features onboard storage and support for Power-over-Ethernet (PoE).
The camera’s IP66-rated aluminium housing features a built-in window heater which allows it to be used effectively in outdoor locations and operate continuously in temperatures as low as -40°C. A selection of lens sizes allows users to choose the most suitable viewing angle (from 6.2° to 55°) for their surveillance requirements.
Using a variety of advanced image optimisation features, the camera is able to produce high-quality IP video at all times. Electronic image stabilisation (EIS) technology is included to reduce the effects of camera movement for sharper image capture. Additionally, Axis Corridor Format is a helpful feature that maximises area coverage in narrow scenes by vertically orientating the video stream.
Video motion detection alarms can be configured to enhance scene awareness and notify users of activity via notifications such as email. Integrated shock detection technology is also supported and will trigger an alert if the camera is subject to impact. Thermal imaging cameras are less sensitive to shadows and challenging light conditions, resulting in greater accuracy and fewer false alarms than non-thermal network cameras.
Axis Zipstream technology lowers bandwidth and storage requirements by an average of up to 50%, ensuring that important details in the image are retained in the video stream, while unnecessary data can be removed. Installation is simplified with support for PoE and recordings can be written to the on-board MicroSD card (not included) to provide a helpful backup of data if the network fails.
Please note: there is no power supply included with this unit. It is power over ethernet capable.
Key features & benefits
Compatible recording platforms:
Typical applications
The Axis Q1941-E PT bullet IP camera offers advanced detection in outdoor areas that require accurate and reliable security monitoring. Typical applications include industrial sites, shipping docks and manufacturing warehouses.
Accessories
Included:
Optional:
Please note:
IMPORTANT WARNING: Thermal cameras are not suitable for coronavirus, fever or COVID-19 detection and we do not recommend their use for this purpose.
Mounting options
Camera |
|
Environment: | outdoor (IP66) |
Type: | thermal IP camera |
Sensor: | uncooled Micro bolometer 348 x 288, pixel size: 17μm, spectral range: 8-14μm |
Lens: | 7mm: 55° (F1.2), 13mm: 28° (F1.0), 19mm: 19.4° (F1.23), 35mm: 10.7° (F1.2), 60mm: 6.2° (F1.25) |
Pan/Tilt: | preset positions, guard tour, driver selection, control queue |
Audio: | not given |
Power: | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3: typical: 4.8W, max: 11.8W, 8–28 V DC: typical: 6.6W, max: 13W, 20–24 V AC: typical: 11VA, max: 19VA |
Memory: | 512 MB RAM, 256 MB Flash |
Video |
|
Resolution: | sensor is 384 x 288, image can be scaled up to 768 x 576 |
Compression: | H.264 main and baseline profiles (MPEG-4 Part 10/AVC), Motion JPEG |
Frame-rate: | up to 8.3 fps and 30 fps |
Bandwidth control: | controllable frame rate and bandwidth, VBR/MBR H.264, Axis Zipstream technology, at least three H.264 and Motion JPEG streams, simultaneous and individually configured in max. resolution in full frame rate |
Light sensitivity: | NETD < 70 mK |
Video overlay: | text and image |
Imaging: | compression, brightness, exposure control, rotation, mirroring of images, Electronic Image Stabilisation, including Corridor Format |
Viewing, detection & recording |
|
Privacy masking: | yes |
Number of users: | not given |
Alarm detection: | video motion detection 3, shock detection, support for AXIS Camera Application Platform, temperature, external input |
Alarm action: | file upload: FTP, SFTP, HTTP, HTTPS network share and email, notification: email, HTTP, HTTPS and TCP and SNMP trap, external output activation, video recording to edge storage |
Pre-/post-alarm buffer: | yes |
On-camera recording: | support for microSD/microSDHC/microSDXC card, support for recording to dedicated network-attached storage (NAS) |
Recording software supported: | Axis Camera Station |
Connections |
|
Power: | Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3, typical 4.8 W, max 11.8 W |
Network: | RJ45 10BASE-T/100BASE-TX PoE |
Audio: | not given |
Other: | RS485/RS422 for pan/tilt control |
Other |
|
Dimensions: | 105 (H) x 112 (W) x 309 (D) mm |
Weight: | 7/13/19mm lenses: 1.8kg, 35mm lens: 1.9kg, 60mm lens: 2kg |
Warranty: | 5 years |
Mounting methods: | pan-tilt mount |
Operating temperatures: | -40°C to 60°C |
Power consumption: | max 11.8W |
Dynamic DNS: | yes |
Protocols supported: | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
QoS: | yes |
Security: | password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb, network access control, digest authentication, user access log |
ONVIF compliant: | yes, profile S |
