| 01223-001

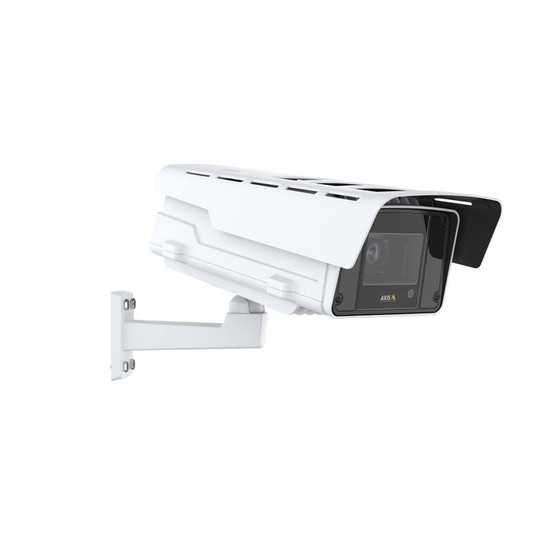

Axis Q1645-LE outdoor-ready IP camera with 2MP resolution, up to 30m Optimised-IR, i-CS lens, edge storage and PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

A high-performance choice for users requiring round-the-clock monitoring of busy environments, this IK10-rated unit features up to 30m of IR night-vision - making it ideal for use in exposed, outdoor locations.

  • Lightfinder & Forensic WDR improve imaging
  • I/O ports for connection of audio devices
  • OptimisedIR night-vision up to 30m
  • i-CS varifocal lens: 92°-42° viewing angle
  • 2MP resolution
Hurry! Only left

This product is discontinued, an alternative model is the Axis Q1656-LE

Overview of the Axis Q1645-LE

This advanced IP camera from Axis delivers 2 megapixel resolution at up to 100 frames per second (fps). The IK10-rated unit also features true day/night recording and up to 30m of infrared night vision - making it ideal for 24-hour surveillance of exposed, outdoor locations. A range of advanced imaging technologies are also supported for clear image capture in any lighting condition, and the unit can be easily installed using Power-over-Ethernet (PoE).

The camera features an innovative, intelligent CS-mount lens (i-CS) which provides horizontal views of up to 92° and allows optimum scene coverage to be set. To help simplify installation, the i-CS lens features several integrated motors which allow, users to remotely adjust lens settings. In addition, the unit's IP67-rated metal housing delivers robust protection against dust, sunlight and rain, alongside the ability to operate in temperatures ranging from -40°C to 65°C.

Advanced imaging technologies such as Forensic WDR (wide dynamic range) technology ensures the capture of details in high contrast scenes, whilst Axis' Lightfinder technology provides full colour viewing in ambient light extremes. If the camera is subject to vibrations, Axis' Electronic Image Stabilisation (EIS) technology ensures video is smooth and steady despite camera movement.

External devices can be connected through the integrated audio I/O ports to enable audio recording and verbal interaction with those close to the camera. Configurable video motion detection alarms and audio detection methods are supported to help provide reliable and accurate security surveillance. When triggered, these alerts can send notifications via email and start MicroSD card recording (card not included) - ensuring all motion is captured.

Axis' Zipstream technology is supported to help lower bandwidth and storage requirements. It does this by analysing and optimising the video stream in real-time, recording interesting detail in high quality, whilst filtering other areas out. With both H.264 and Motion JPEG supported, users can compress files using the method best suited to their application. Additionally, the integrated memory card slot provides edge storage functionality for continuous recording even during network intermittence.

Please note: there is no power supply included with this unit. It is power over ethernet capable.

Key features & benefits

  • Delivers 2MP resolution at up to 50 frames per second (WDR on) or at a maximum of 120 fps (WDR off)
  • i-CS mount varifocal lens allows optimum scene coverage to be set during installation
  • Integrated IR-cut filter provides true day/night functionality for round-the-clock monitoring of outdoor areas
  • IP67-rated, vandal-resistant housing allows for safe deployment in exposed outdoor areas
  • Forensic WDR enables the camera to produce detailed video footage in challenging light conditions
  • Axis Lightfinder increases light sensitivity for improved video capture in high contrast scenes
  • Axis Motion Guard and Fence Guard are included to help increase overall scene awareness
  • Two-way audio is supported with the connection of a microphone and speaker (not included)
  • Configurable audio, video motion detection and tampering alarms help to enhance security monitoring
  • Dual compression formats provide flexibility for the user depending on requirements
  • Axis Zipstream technology lowers bandwidth by analysing and optimising the video stream in real-time
  • PoE supplies power and network connection over one cable for quick and cost-effective installation
  • Edge recording to MicroSD card (not included) provides a data backup in the event of network failure

Compatible recording platforms

Recording software:

  • Axis Camera Station
  • Milestone XProtect
  • Morphean Cloud CCTV

Typical applications

The Axis Q1645-LE network camera is a high-performance choice for businesses requiring round-the-clock monitoring of busy outdoor environments. Typical applications include stadiums, amusement parks and industrial sites.



  • Axis T94Q01A Wall mount
  • Axis T92G20 Outdoor housing
  • Connector kit
  • ResiTorx20 tool
  • Installation guide
  • Windows decoder 1-user license


  • PoE midspan
  • SD card
Back To Top

Key technical features of the Axis Q1645-LE


Environment: outdoor
Type: fixed
Sensor: progressive scan RGB CMOS 1/2"
Lens: varifocal, IR corrected, CS-mount, 3.9-10.0mm, F1.5, 2MP horizontal angle of view: 92°~42° view, vertical field of view: 50°-23°, i-CS lens
Power:  Power over Ethernet, IEEE 802.3at Type 2 Class 4, max. 25.5W
Audio: two-way, external balanced/unbalanced microphone or line input, line output
Memory: 1 GB RAM, 512 MB Flash


Resolution: 1920x1080 to 320x180
Compression: H.264 main and baseline profiles (MPEG-4 Part 10/AVC), Motion JPEG
Frame-rate: HD 1080p (no WDR): 100/120 fps, HD 1080p (with WDR): 50/60 fps
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, Axis' Zipstream technology in H.264, VBR/MBR H.264
Day/night: automatically removable infrared-cut filter
Minimum illumination: HD 1080p 50/60 fps with WDR and Lightfinder: colour: 0.05 lux, at 50 IRE F1.5, B/W: 0.02 lux, at 50 IRE F1.5 - HD 1080p 100/120 fps: colour: 0.1 lux, at 50 IRE F1.5, B/W: 0.04 lux, at 50 IRE F1.5
Video overlay: text and image overlay
Imaging: saturation, contrast, brightness, sharpness, Forensic WDR – 120 dB, white balance, day/night threshold, exposure mode, exposure zones, compression, orientation: auto, 0°, 90°, 180°, 270°, mirroring of images, dynamic text overlay, image overlay, privacy masks, defogging, noise reduction, electronic image stabilisation, barrel distortion correction, orientation aid, fine tuning of behaviour at low light Scene profiles: forensic, vivid, traffic overview

Viewing, detection & recording

Privacy masking: yes
Number of users: not given
Alarm detection: video motion detection, active tampering alarm, audio detection, support for AXIS Camera Application Platform enabling installation of additional applications, edge storage events, external input, shock detection
Alarm action: file upload: FTP, SFTP, HTTP, HTTPS, network share and email, send video clip. notification: email, HTTP, HTTPS and TCP, video and audio recording to edge storage, pre- and post-alarm video buffering, external output activation, day/night vision mode, play audio clip, status LED, WDR mode, Defog mode, PTZ control, send SNMP Trap
Pre-/post-alarm buffer: yes
On-camera recording: SD/SDHC/SDXC slot supporting memory card up to 64 GB (card not included)
Direct-to-NAS storage: yes
Recording software supported: Axis Camera Station


Power: Power over Ethernet, IEEE 802.3af/802.3at Type 2 Class 4, max. 25.5 W
Network: RJ45 10BASE-T/100BASE-TX PoE
Audio: external balanced/unbalanced microphone or line input, line output 24 bit AD/DA-conversion


Dimensions: 178 (L) x 206 (WD) x 494 (D) mm
Weight: 0.64kg
Warranty: 5 years
Mounting methods: Wall mount and outdoor housing included
Operating temperatures: -40 °C to 65 °C
Power consumption: max. 25.5 W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa, SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP
QoS: yes
Security: password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb, network access control, digest authentication, user access log, centralised certificate management
ONVIF compliant: yes, profile S
