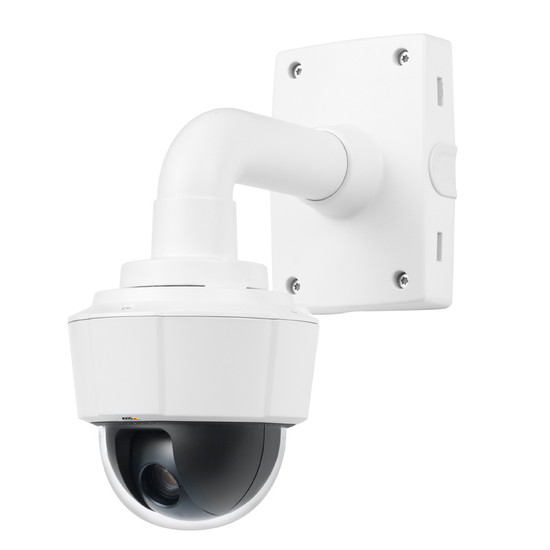

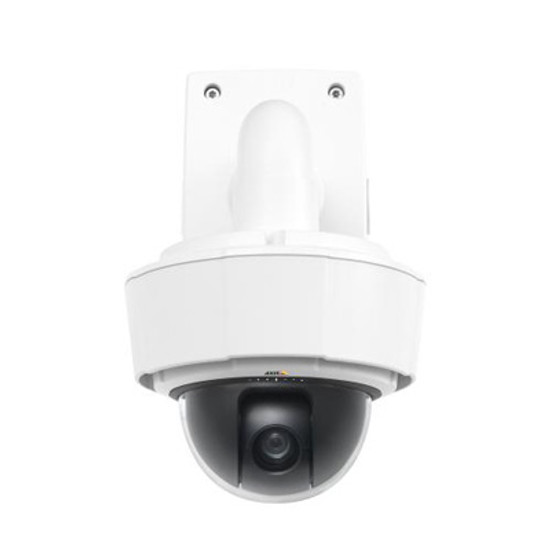

Axis P5514-E PTZ outdoor IP camera with HD 720p resolution, 12x optical zoom, 360° pan with auto-flip

This product is now discontinued, an alternative model is the Axis M5525-E

Overview of the Axis P5514-E

Featuring full pan/tilt/zoom (PTZ) functionality with 360° pan and auto-flip, this IP camera by Axis is capable of delivering HD 720p at up to 60 frames per second (fps) - providing smooth, high quality video footage. Housed in an IP66 rated weather proof housing, this network camera is able to capture a wide field of view in an external installation. A 12x optical zoom enables the user to obtain a closer view of areas of interest and the integrated infrared (IR) cut filter provides true day/night capability. In addition, the camera supports edge storage and PoE.

To ensure continued operation in challenging outdoor conditions, the camera is capable of operating in temperatures as low as -20°C (-4°F). The external-ready camera is housed in an IP66 and NEMA 4X-rated casing, which offers robust protection against rain, snow and dust. With the capability of capturing full colour images in the day and monochrome images at night, the camera's day/night functionality provides a round the clock security solution for outdoor installations.

The camera's 12x optical zoom (with autofocus) ensures a clear and detailed view. The camera also features a 10x digital zoom that enables in-depth surveillance – ideal for identification purposes. Auto-flip technology allows the image to instantly flip 180° and continue to pan - ideal for tracking an object or person moving directly underneath the camera.

Advanced Gatekeeper technology enables the camera to automatically move to a pre-set position when motion is detected in a pre-defined area. A range of video motion detections can be configured to increase scene awareness and when triggered, alerts can be sent to the user via a range of notifications such as email.

Capable of streaming multiple H.264 video feeds simultaneously, the user is able to tailor their monitoring and recording settings to optimise use of network resources and storage. In the event of network failure, the integrated micro SD/SDHC card slot (card not included) can save recorded footage locally. Both network connectivity and power can be supplied to the camera through a single cable with Power over Ethernet (PoE) reducing wiring costs and simplifying installation.

Please note: this camera does not come with a power supply. Please select if required.

Key features & benefits

• The IP66 and NEMA 4X-rated housing protects the unit against dust, rain and snow and enables continued operation at extremely low temperatures
• The camera's endless 360° Pan / 180° tilt and 12x optical zoom enables the surveillance of large areas with a single unit - a cost-effective alternative to using multiple cameras
• 10x digital zoom allows close-up images to be obtained that can be used for identification
• Capable of delivering smooth HD 720p video footage at up to 60 fps
• True day/night functionality with infrared cut-filter enables reliable round the clock surveillance
• Intelligent video technology including Axis' Advanced Gatekeeper technology can trigger alarms and recording based on user-defined parameters
• Recording of data to MicroSD card (card not included) provides a back up solution if the network fails and can be used as a stand alone system
• The ability to stream multiple H.264 video feeds offers flexibility when deciding on recording and monitoring quality settings
• Power over Ethernet powers the camera and connects it to a network through a single cable, reducing installation costs and simplifying cabling

Compatible recording platforms

• Milestone XProtect
• Axis Camera Station

Typical applications

The P5514-E network camera provides a robust and cost-effective solution for external installations requiring high quality video footage. Typical examples include vehicle depots and industrial sites that feature heavy traffic in the day but also need to be monitored during the night for any activity that happens 'after hours'.

Accessories

Included:

• Connector kit
• Installation Guide
• Windows decoder 1-user license
• Sunshield
• IP66-rated RJ45 connector kit

Optional: (please select from the above drop down menu if required)

• MicroSD card
• PoE midspan
• Additional brackets and mounting accessories
