With full 360° views, 360° IR illumination at up to 15m, Forensic WDR and Lightfinder technology, this multi-sensor camera is ideal for large outdoor areas that require detailed surveillance in all manner of challenging light conditions.
This product has now been discontinued, for an alternative please see the Axis P3735-PLE

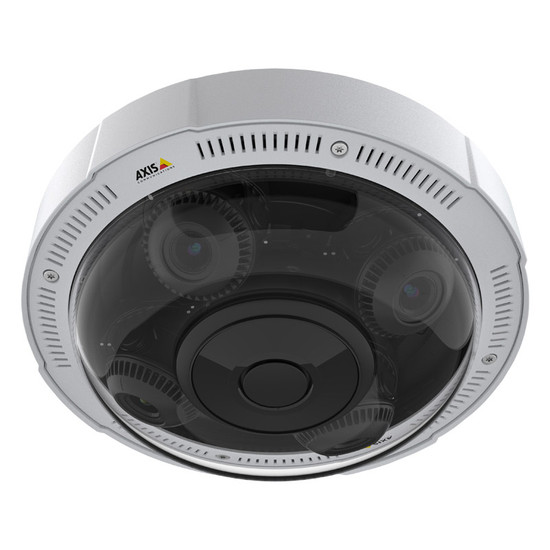

This versatile multi-sensor camera features four lens modules, each delivering HD 1080p resolution at full frame rate and together offering a full 360° view in four sections – ideal for applications that require detailed multidirectional monitoring of wide outdoor areas. This vandal and weather-resistant unit also provides 360° IR illumination, as well as advanced technologies such as Forensic WDR and Lightfinder, improving the camera's imaging performance in a range of challenging light conditions. Furthermore, the unit's installation is simplified using Power-over-Ethernet Plus (PoE+).
Featuring four sensors with a combined 8MP resolution at full frame rate and varifocal lenses that can capture up to 96° horizontal views each, this model is ideal for monitoring multiple areas of interest within a large location. To ensure that optimum camera positioning can be set, the camera heads can be moved manually along a circular track, twist +20° and tilt at a range of up to 95°. Two-way audio is also supported in this unit via the connection of external T61 audio and I/O interfaces enabling audio recording and verbal interaction through the camera. Additionally, four individually controllable IR LEDs illuminate at a distance of up to 15m – ensuring that detail is sufficiently captured in poor light conditions. All of which is encased in IP66 and IK09-rated housing to offer protection from both harsh weather conditions and vandalism attempts.
Advanced imaging technologies are included to ensure footage is captured in sufficient detail – even in challenging lighting conditions. Forensic WDR retains image details in high-contrast scenes and is also optimised for motion, ensuring that few motion artefacts are apparent in scenes with high levels of activity. Full-colour images are produced, even in ambient light extremes thanks to Lightfinder technology - ensuring details are preserved even when light is inadequate. Corridor Format is also included and allows the monitoring of narrow scenes to be optimised by rotating the sensor 90° - preventing the recording of redundant areas, therefore lowering bandwidth.
Various video motion detection and tampering alarms can be configured to enhance dynamic scene awareness and alert users to any potential incidents via email notification. Axis Object Analytics is preinstalled on the camera to reliably detect and classify objects such as humans and vehicles – allowing users to keep track of traffic in the surveillance area or provide greater efficiency when searching footage. Please note that Axis Object Analytics can be deployed on only one of the four sensors.
The built-in dual MicroSD card slots (cards not included) offer a helpful backup of data if the network fails and also allow the camera to be used in a stand-alone set-up. Whilst, for more advanced video management, software such as Axis Camera Station or Milestone XProtect is available.
Integrated installation aids such as remote zoom and focus help make installation easier. This process is further simplified by the unit's high-powered PoE+ capabilities, combining network and power connections into one cable – reducing the need for multiple external wires. Furthermore, due to its combination of four lenses in one unit, the camera only requires one IP address, providing a cost-effective alternative to a multi-camera setup.
With its 360° views and 15m IR illumination, this versatile multi-sensor IP camera is ideal for open outdoor areas that require multidirectional 24-hour monitoring such as large shopping centres, stadiums and manufacturing warehouses.
Included:
Optional:
Camera |
|
| Environment: | outdoor (IP66/67, NEMA 4x and IK09 rated) |
| Type: | varifocal |
| Sensor: | 4 x 1/2.8” progressive scan RGB CMOS |
| Lens: | varifocal, 3–6 mm, F1.8–2.6 4x1080p capture mode: horizontal field of view: 96°–49° vertical field of view: 53°–27° diagonal field of view: 113°–55° fixed iris, IR corrected, remote zoom and focus |
| PTZ: | digital PTZ only |
| Audio: | two-way audio connectivity via optional AXIS T61 audio and I/O Interfaces with Portcast technology. |
| Power: | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 Typical 9.35 W, max 21.7 W |
| Memory: | 1042 MB RAM, 512 MB Flash |
Imaging |
|
| Resolution: | 4 x 1920x1080 (4 x HDTV 1080p) to 160x90 |
| Compression: | H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Frame rate: | up to 25/30 fps (50/60 Hz) |
| Video streaming: | multiple, individually configurable streams in H.265, H.264 and Motion JPEG |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: |
colour: 0.17 lux at 50 IRE, F1.8 B/W: 0 lux at 50 IRE, F1.8 |
| IR illumination: | 15m range of reach |
| Video overlay: | text and image |
| Image settings: | saturation, contrast, brightness, sharpness, Forensic WDR, white balance, day/night threshold, tone mapping, exposure mode, exposure zones, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, dynamic text and image overlay, polygon privacy masks |
Analytics |
|
| Application Programming Interface: | open API for software integration, including VAPIX and AXIS Camera Application Platform |
| Event triggers: | included: Axis Video Motion Detection, tampering alarm and support for Axis Camera Application Platform enabling installation of third-party applications |
| Event action: | record video: SD card and network share MQTT publish Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email Notification: email, HTTP, HTTPS, TCP, and SNMP trap Overlay text, play audio clip, day/night mode, status LED, IR illumination, MQTT |
| Privacy masking: | yes |
Video Management |
|
| On-camera recording: | support for MicroSD/microSDHC/microSDXC and encryption, support for recording to dedicated network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, ONVIF support for 3rd party |
| Video Management Software: | Axis Companion, Axis Camera Station, Milestone XProtect |
| Cloud: | Morphean Cloud CCTV, CamStreamer Cloud |
General |
|
| Network connections: | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 |
| Alarm I/O connections: | audio and I/O connectivity via AXIS T61 audio and I/O Interfaces with Portcast technology |
| Dimensions: | ø 255 mm x 92 mm |
| Weight: | 2.0kg |
| Casing: |
colour: white, IP66/67, NEMA 4X and IK09-rated |
| Operating temperatures: | -30°C to 50°C |
| Mounting methods: | wall |
| Installation aids: | pixel counter, remote focus, remote zoom |
| Warranty: | 5 year |
| Power consumption: | max. 21.7W |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Security: | password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, protection of cryptographic keys with FIPS 140-2 certified TPM 2.0 module, Axis Edge Vault with Axis device ID |
| Approvals: | EMC EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK09, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) Network NIST SP500-267 |
Axis Communications | 02633-001
