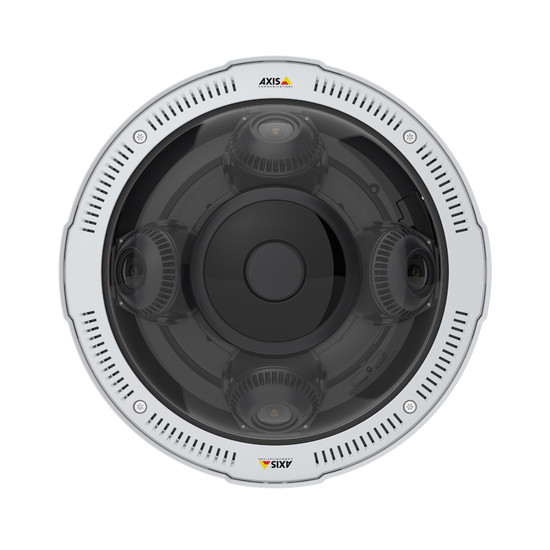

This versatile unit features 4 Quad HD varifocal sensors, enabling users to cover multiple areas of a large scene with a single IP camera. It features 360° IR illumination and is housed in a weather-resistant IP67-rated casing.
This product is now discontinued, for an alternative please see the Axis P3737-PLE
This versatile unit from Axis comprises four Quad HD (2560x1440) varifocal sensors which together, enable users to cover multiple areas of a large scene with a single IP camera. The vandal-resistant unit provides a multidirectional surveillance solution for exposed outdoor locations and also features integrated 360° infrared (IR) illumination. Additional features include 360° IR illumination, support for Power-over-Ethernet Plus (PoE+) and a range of advanced imaging technologies for clear image capture - in any lighting condition.

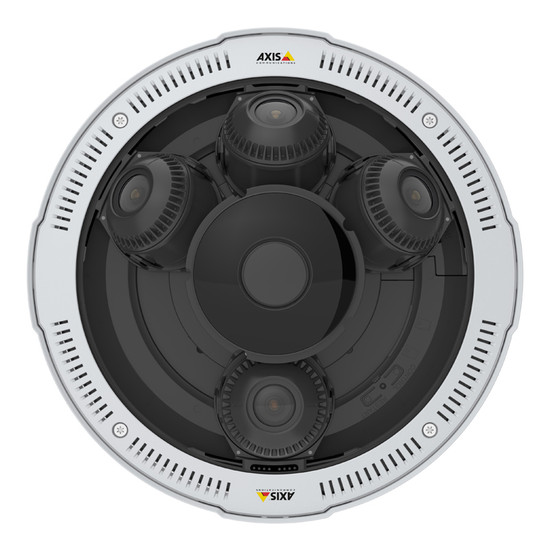

Each of the four camera heads can be moved manually along a circular track, which allows views from different directions to be captured simultaneously. The lenses also offer varifocal viewing angles up to 101°, enabling users to individually set four separate fields of view during installation. Additionally, Axis’ Corridor Format is supported to help maximise the area of interest in narrow scenes by vertically orientating the video stream.
The camera's four individually controllable LEDs provide 360° IR illumination, which helps to enhance night vision at a range of up to 15m. For improved imaging in difficult lighting conditions, wide dynamic range (WDR) technology is also included to help to improve the quality of images captured in high-contrast scenes.
Configurable video motion detection alarms can be set to trigger MicroSD card recording (card not included) to ensure all motion is captured and also send alerts of activity to the user via email notification. This unit also supports Axis Guard Suite analytics such as Motion Guard and Fence Guard which help to enhance scene awareness - within predefined areas in the field of view.
A range of handy features are included such as signed firmware and secure boot, which help to ensure the integrity and authenticity of the camera's firmware. Axis' Zipstream technology analyses and optimises the video stream in real-time, recording interesting detail in high quality, whilst filtering other areas out to reduce bandwidth and storage use. Additionally, handy features are included to help simplify installation such as PoE+, as well as remote zoom and focus which eliminates the need for hands-on fine-tuning.
Please note: there is no power supply included with this unit. It is power over ethernet capable.
The Axis P3719-PLE delivers detailed multidirectional surveillance in 15MP resolution (4x Quad HD) and features 360° IR illumination. Consisting of four flexible varifocal lenses that are housed in a single vandal-resistant casing, this advanced model is an ideal choice for monitoring large shopping centres, airports and industrial sites.
Included:
Optional:
Camera |
|
| Environment: | outdoor (IP66-, IP67-, NEMA 4X-rated, IK09 impact-resistant) |
| Type: | multidirectional |
| Sensor: | 4 x 1/2.5” progressive scan RGB CMOS |
| Lens: | varifocal, 3–6 mm, F1.8–2.6, 4 x 1440p capture mode: horizontal field of view: 101°–49°, vertical field of view: 54°–29°, diagonal field of view: 116°–58°, motorised focus, motorised zoom |
| Day and night: | automatically removable infrared-cut filter |
| Memory: | 1024 MB RAM, 512 MB Flash |
| Power: | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4, IR illumination on: class 4, typical 16.3 W, max 25.5 W, IR illumination off: class 3, typical 10.7 W, max 25.5 W |
| Audio: | not given |
Video |
|
| Resolution: | 4 x 2560x1440 (4 x Quad HD 1440p) to 80x60 |
| Compression: | H.264 (MPEG-4 Part 10/AVC) Main and High Profiles, H.265 (MPEG-H Part 2) |
| Frame-rate: | up to 25/30 fps (50/60 Hz) |
| Bandwidth control: | multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 |
| Video overlay: | text and image |
| Minimum illumination: | colour: 0.20 lux at 50 IRE F1.8 B/W: 0.04 lux at 50 IRE F1.8, 0 lux with IR illumination on |
| Imaging: | saturation, contrast, brightness, sharpness, WDR, white balance, exposure control, rotation: 0°, 90°, 180°, 270° including Corridor Format, dynamic text and image overlay, privacy mask, compression |
Viewing, detection & recording |
|
| Privacy masking: | yes |
| Number of users: | not given |
| Alarm detection: | AXIS Video Motion Detection, active tampering alarm, support for AXIS Camera Application Platform enabling installation of third-party applications, detectors, hardware, input signal, storage, system, time, analytics, edge storage events |
| Alarm action: | day/night vision, overlay text, record video, send images, send notifications SNMP trap, send video clip, status LED, file upload: FTP, SFTP, HTTP, HTTPS network share, SFTP and email notification: email, HTTP, HTTPS, TCP and SNMP trap |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | support for microSD/microSDHC/microSDXC card, dual SD cards |
| Direct-to-NAS storage: | yes |
| Recording software included: | Axis Companion, Axis Camera Station |
Connections |
|
| Network: | RJ45 10BASE-T/100BASE-TX PoE |
| Audio: | not given |
| Alarm I/O: | not given |
| Video: | not given |
Other |
|
| Dimensions: | Ø 255mm x 91.5mm |
| Weight: | 2.0 kg |
| Warranty: | 5 years |
| Mounting methods: | mounting bracket with junction box holes (double gang box, single gang box, 4” octagon junction box and 4” square junction box), 1/2” (M20) conduit side entry, 3/4” (M25) conduit adapter included |
| Operating temperatures: | –30°C to 50°C |
| Power consumption: | illumination on: class 4, typical 16.3 W, max 25.5 W, IR illumination off: class 3, typical 10.7 W, max 25.5 W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralised certificate management, brute force delay protection, signed firmware |
| ONVIF compliant: | yes |
Axis Communications | 02634-001
