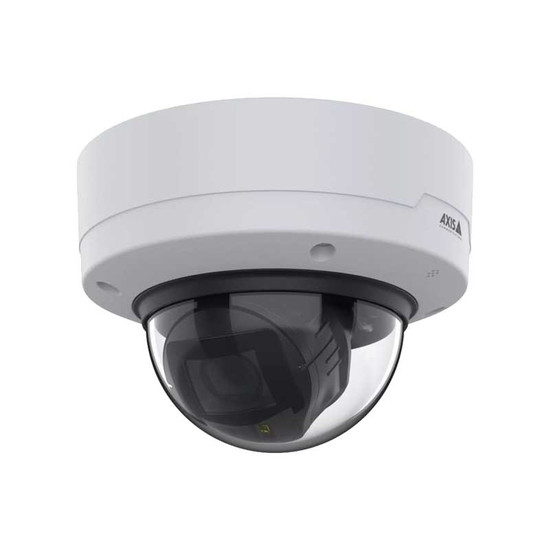

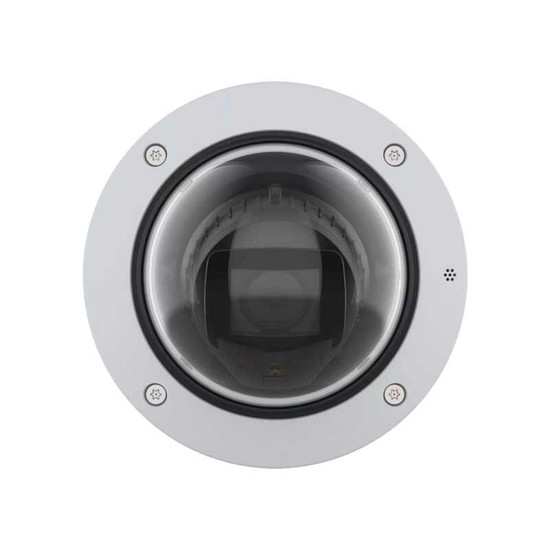

Overview of the AXIS P3287-LV indoor varifocal dome camera
- Versatile IK10 rated indoor camera with 5MP resolution video
- Powered by ARTPEC-9 for advanced AXIS Object Analytics using deep learning
- Delivers detailed images in difficult lighting with Lightfinder 2.0 and Forensic WDR
- OptimizedIR provides effective illumination in complete darkness up to 40m
- Integrated sound sensor with AXIS Audio Analytics for detecting critical audio events
Designed for reliable, high-quality monitoring of indoor environments, this versatile dome camera captures sharp, detailed images 24-hours a day. It supports 5MP resolution at up to 30 fps in all resolutions, and features a light-sensitive 3mm-8.5mm varifocal P-iris lens, offering a horizontal viewing angle of 34-104°. Forensic WDR and Lightfinder 2.0 deliver excellent clarity in low light and high-contrast scenes, while OptimizedIR provides effective illumination in complete darkness up to 40m range.
This camera features an integrated sound sensor and comes preinstalled with AXIS Audio Analytics to detect critical sound events such as shouting or glass breaking. It's ideal for environments where audio recording may be restricted but where detecting sound events for real-time alerts remains essential. Classify screams, shouts and breaking glass, whilst adaptive audio can generate an alert if any sound exceeds the user-defined threshold.
Powered by the ARTPEC-9 chipset, the camera offers next-generation video analytics for faster object detection and more accurate event analysis. With AV1 codec compression, it delivers high-quality footage with outstanding detail and superior bitrate efficiency for reduced bandwidth costs. This camera can be mounted directly to walls and ceilings with the included mount, and runs over PoE for reduced installation costs. Remote zoom and focus simplifies adjusting the viewing angle during setup.
Please note: This camera does not have a built-in microphone for audio recording. The sound sensor captures audible alerts, and does not actively record audio for playback.
Video Analytics
AXIS Object Analytics (AOA) reliably detects, classifies, and counts people and vehicles, processing video on the edge for faster alerts. Powered by ARTPEC-9 with deep learning, it reduces false alarms by filtering irrelevant motion. Objects are marked with colour-coded boxes, visible in the camera and management system. Configure up to 10 virtual rules like line crossing and zone entry to boost awareness. Built-in AXIS Image Health Analytics alerts if the image is obstructed or tampered with.
This camera also supports other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Recording and Video Management
See below for available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- AXIS Camera Station Software
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
Flexible and versatile, this advanced dome camera with audio analytics is ideal for dependable monitoring in indoor environments such as:
- Detect raised voices or disturbances in offices and conference rooms
- Spot unusual noise to prevent theft in retail stores
- Alert on distress sounds in healthcare facilities
- Identify disruptions in classrooms and educational spaces
- Monitor alarms and faults in warehouses and industrial areas
- Detect glass breaking or aggression in transport stations
Accessories included
- Camera
- Installation guide
- Terminal block connectors
- Connector guard
- Cable gasket
- Owner authentication key
Key technical features of the AXIS P3287-LV indoor varifocal dome camera
Camera |
|
| Environment: | indoor |
| Type: | Fixed varifocal dome |
| Sensor: | 1/2.8” progressive scan RGB CMOS
Pixel size 2.0 µm |
| Lens: | Varifocal, 3.0–8.5 mm, F1.38–2.58
Horizontal field of view: 104°–34° Vertical field of view: 76°–26° Minimum focus distance: 1 m (3.28 ft) IR corrected, remote zoom and focus, P-Iris control |
| Day/night: | automatically removable infrared-cut filter |
| Camera adjustment: | Pan ±190°, tilt -50 to +80°, rotation ±95° |
| Minimum illumination: | Colour: 0.1 lux at 50 IRE, F1.38
B/W: 0.03 lux at 50 IRE, F1.38 0 lux with IR illumination on |
| IR illumination: | OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 40 m (130 ft) or more depending on the scene |
Imaging |
|
| Resolution: | 16:9: 2560x1440
16:10: 1920x1200 4:3: 2592x1944 |
| Frame rate: | Up to 25/30 fps (50/60 Hz) in all resolutions |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Up to 20 unique and configurable video streams1
AXIS Zipstream technology in H.264, H.265 and AV1 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265/AV1 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defog, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including corridor format, mirroring, dynamic text and image overlay, overlay widget, privacy masks, target aperture |
| Installation aids: | Pixel counter, remote zoom and focus, straighten image, level grid |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection Supported AXIS Perimeter Defender, AXIS License Plate Verifier Support for AXIS Camera Application Platform enabling installation of third-party applications |
| AXIS Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoringBETA, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| AXIS Audio Analytics: | Features: adaptive audio detection, audio classification
Audio classes: scream, shout, glass break, speech Event metadata: audio detections, classifications |
| AXIS Image Health Analytics: | Detection settings:
Tampering: blocked image, redirected image Image degradation: blurred image, underexposed image Other features: sensitivity, validation period |
| AXIS Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: vehicle color, upper/lower clothing color, confidence, position |
Video Management |
|
| On-camera recording: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations |
| Network video recorders: | AXIS NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | AXIS Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | ARTPEC-9 |
| Audio: | Integrated sound sensor for audio detection |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1
Class 3
Max 12.6 W, typical (heater off, IR off) 4.7 W Features: power meter |
| Connectors: | Network: RJ45 10BASE-T/100BASE-TX PoE
I/O: 4-pin 2.5 mm terminal block for 1 alarm input and 1 output |
| I/O functionality: | I/O: Terminal block for one configurable supervised
input/digital output (12 V DC output, max load 25 mA
I/O connectivity through portcast technology accessories |
| Dimensions: | For the overall product dimensions, see the dimension drawing in the product datasheet. |
| Weight: | 810 g (1.8 lb) |
| Casing: | IP54-, and IK10-rated
olycarbonate hard-coated dome Plastic casing Colour: white NCS S 1002-B For repainting instructions, go to the product’s support page |
| Operating temperatures: | Temperature: 0 °C to 50 °C (32 °F to 122 °F)
Humidity: 10–85% RH (non-condensing) |
| Warranty: | 5-year |
| Firmware support to: | 31-12-2033 |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 OpenID
Authorization Code Flow for centralized ADFS account management, password protection, AXIS Cryptographic Module (FIPS 140-2 level 1) Hardware: AXIS Edge Vault cybersecurity platform Secure keystore: Secure element (CC EAL 6+, FIPS 140- 3 Level 3), system-on-chip security (TEE) AXIS device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3 , IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS3 , TLS v1.2/v1.33 , Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
