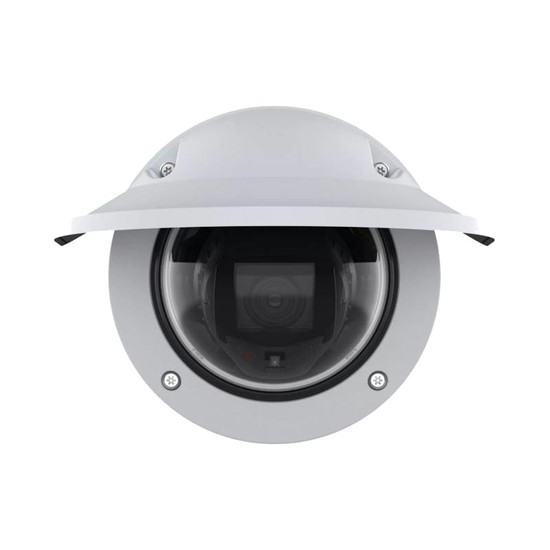

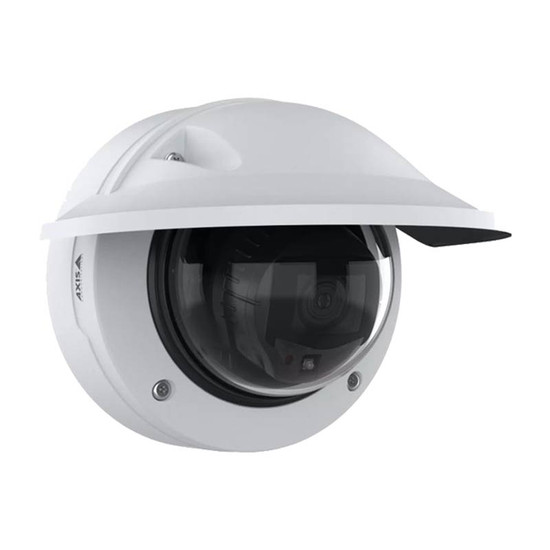

Overview of the AXIS P3277-LVE outdoor varifocal dome camera
- Durable IP66 and IK10 rated outdoor camera with 5MP resolution video
- Powered by ARTPEC-9 for advanced AXIS Object Analytics using deep learning
- Delivers detailed images in difficult lighting with Lightfinder 2.0 and Forensic WDR
- OptimizedIR provides effective illumination in complete darkness up to 40m
- AV1 video compression supports high-quality footage with lower bandwidth usage
Designed for reliable, high-quality monitoring even in harsh outdoor environments, this versatile dome camera captures sharp, detailed images 24-hours a day even in extreme weather. It supports 5MP resolution at up to 30 fps in all resolutions, and features a light-sensitive 3mm-8.5mm varifocal P-iris lens, offering a horizontal viewing angle of 34-104°. Forensic WDR and Lightfinder 2.0 deliver excellent clarity in low light and high-contrast scenes, while OptimizedIR provides effective illumination in complete darkness up to 40m range.
Powered by the ARTPEC-9 chipset, the camera offers next-generation video analytics for faster object detection and more accurate event analysis. With AV1 codec compression, it delivers high-quality footage with outstanding detail and superior bitrate efficiency for reduced bandwidth costs. This camera can be mounted directly to walls and ceilings with the included mount, and runs over PoE for reduced installation costs. Remote zoom and focus simplifies adjusting the viewing angle during setup.
Video Analytics
AXIS Object Analytics (AOA) reliably detects, classifies, and counts people and vehicles, processing video on the edge for faster alerts. Powered by ARTPEC-9 with deep learning, it reduces false alarms by filtering irrelevant motion. Objects are marked with colour-coded boxes, visible in the camera and management system. Configure up to 10 virtual rules like line crossing and zone entry to boost awareness. Built-in AXIS Image Health Analytics alerts if the image is obstructed or tampered with.
This camera also supports other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Recording and Video Management
See below for available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- AXIS Camera Station Software
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
Example Use Cases
Flexible and versatile, this advanced dome camera is ideal for dependable monitoring outdoor environments such as:
- Perimeter security around buildings and compounds
- Industrial yards and external storage zones
- Retail park service areas and loading bays
- Hospital grounds and emergency access points
- School perimeters and campus walkways
- Bus stations, train platforms, and other transport hubs
Accessories included
- Camera
- Weathershield
- Installation guide
- Terminal block connectors
- Connector guard
- Cable gasket
- Owner authentication key
Key technical features of the AXIS P3277-LVE outdoor varifocal dome camera
Camera |
|
| Environment: | outdoor |
| Type: | Fixed varifocal dome |
| Sensor: | 1/2.8” progressive scan RGB CMOS
Pixel size 2.0 µm |
| Lens: | Varifocal, 3.0–8.5 mm, F1.38–2.58
Horizontal field of view: 104°–34° Vertical field of view: 76°–26° Minimum focus distance: 1 m (3.28 ft) IR corrected, remote zoom and focus, P-Iris control |
| Day/night: | automatically removable infrared-cut filter |
| Camera adjustment: | Pan ±190°, tilt -50 to +80°, rotation ±95° |
| Minimum illumination: | Colour: 0.1 lux at 50 IRE, F1.38
B/W: 0.03 lux at 50 IRE, F1.38 0 lux with IR illumination on |
| IR illumination: | OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 40 m (130 ft) or more depending on the scene |
Imaging |
|
| Resolution: | 16:9: 2560x1440
16:10: 1920x1200 4:3: 2592x1944 |
| Frame rate: | Up to 25/30 fps (50/60 Hz) in all resolutions |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Up to 20 unique and configurable video streams1
Axis Zipstream technology in H.264, H.265 and AV1 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265/AV1 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defog, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including corridor format, mirroring, dynamic text and image overlay, overlay widget, privacy masks, target aperture |
| Installation aids: | Pixel counter, remote zoom and focus, straighten image, level grid |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Image Health Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection Supported AXIS Perimeter Defender, AXIS License Plate Verifier Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoringBETA, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Image Health Analytics: | Detection settings:
Tampering: blocked image, redirected image Image degradation: blurred image, underexposed image Other features: sensitivity, validation period |
| Axis Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: vehicle color, upper/lower clothing color, confidence, position |
Video Management |
|
| On-camera recording: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) For SD card and NAS recommendations |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | ARTPEC-9 |
| Audio: | Audio input:
Input for external unbalanced microphone, optional 5 V microphone power Digital input, optional 12 V ring power Unbalanced line input Input through speaker pairing or portcast technology Audio output: Output through speaker pairing or portcast technology |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1
Class 3
Max 12.6 W, typical (heater off, IR off) 4.7 W Features: power meter |
| Connectors: | Network: RJ45 10BASE-T/100BASE-TX PoE
I/O: 4-pin 2.5 mm terminal block for 1 alarm input and 1 output Audio: 3.5 mm mic/line in |
| I/O functionality: | I/O: Terminal block for one configurable supervised
input/digital output (12 V DC output, max load 25 mA
I/O connectivity through portcast technology accessories |
| Dimensions: | For the overall product dimensions, see the dimension drawing in the product datasheet. |
| Weight: | 850 g (1.9 lb) |
| Casing: | IP66-, NEMA 4X- and IK10-rated
Polycarbonate hard-coated dome Plastic casing and weathershield Colour: white NCS S 1002-B For repainting instructions, go to the product’s support page. |
| Operating temperatures: | Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -30 °C (-22 °F) Humidity: 10–100% RH (condensing) |
| Warranty: | 5-year |
| Firmware support to: | 31-12-2033 |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 OpenID
Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Hardware: Axis Edge Vault cybersecurity platform Secure keystore: Secure element (CC EAL 6+, FIPS 140- 3 Level 3), system-on-chip security (TEE) Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3 , IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS3 , TLS v1.2/v1.33 , Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
