| 0952-001

Axis P3225-V Mk II indoor dome IP camera with HD 1080p resolution, Lightfinder, WDR - Forensic Capture, Zipstream and PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, an alternative model is the Axis P3265-V

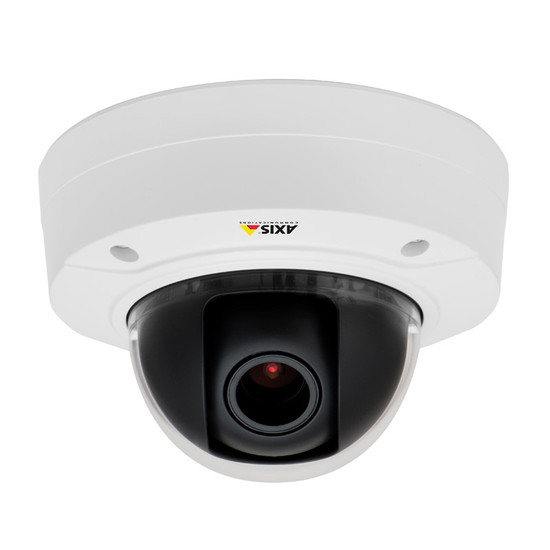

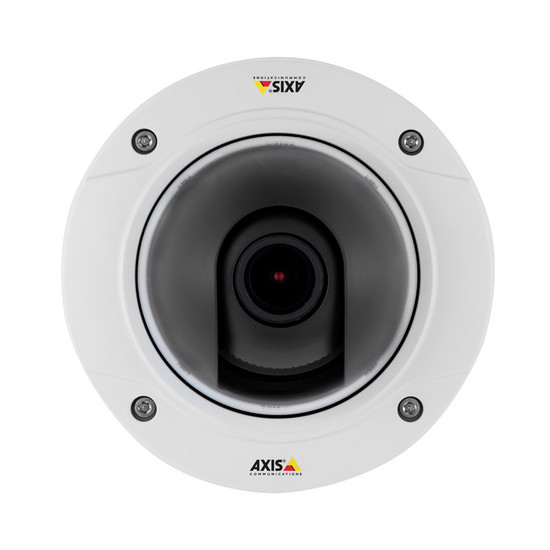

Overview of the Axis P3225-V Mk II

This vandal-resistant dome is part of the robust P32 series by Axis and delivers smooth HD 1080p resolution round-the-clock, at up to 50 frames per second (fps). It delivers high quality imaging in challenging lighting conditions using Axis’ Lightfinder and wide dynamic range (WDR) – Forensic Capture technologies, and can be easily installed using Power-over-Ethernet (PoE). Additional features include Zipstream technology and integrated MicroSD card storage.

The camera features a varifocal lens which provides horizontal viewing angles up to 92° and allows optimum scene coverage to be set during installation. Users can monitor areas of interest effectively using multi-streaming which allows regions of interest to be cropped and streamed separately for live viewing or recording.

WDR – Forensic Capture technology optimises video by lowering noise levels and increasing the image signal to ensure details are visible in both dark and bright areas. In addition, Lightfinder technology makes full use of the of the camera’s sensor to provide full colour imaging in near darkness. Using Axis Corridor Format, users can vertically orientate the video stream to help maximise area coverage and reduce bandwidth when monitoring narrow scenes.

Axis Companion can be installed to provide simple video management for up to 16 IP cameras. This free software offers remote access to live views as well as playback of recordings and is available as a PC client or mobile application.

Video motion detection alarms can be configured to enhance scene awareness and notify users of activity via notifications such as email. Detection alarms can also be set to trigger recording to the on-board MicroSD card (not included) when using the Axis Companion mobile app.

Remote focus and zoom eliminate the need for hands-on fine tuning and PoE compatibility means the camera can be supplied with both power and network connectivity over a single cable – simplifying installation. Axis’ Zipstream technology is supported and helps to lower bandwidth and storage levels by an average of up to 50%. By optimising the video stream in real-time, important details can be retained while unnecessary data is removed.

Please note: this camera does not come with a power supply, please select a PoE midspan from the above drop down menu if required.

Key features & benefits

  • Delivers HD 1080p resolution at full frame rate when WDR is enabled, or up to 50 fps when WDR is turned off
  • IK08-rated housing offers robust protection in locations where camera tampering may occur
  • Integrated IR-cut filter provides true day/night functionality for round-the-clock surveillance
  • Varifocal lens allows optimum scene coverage to be set during installation
  • Axis Lightfinder technology produces full colour imaging in ultra-low light levels
  • WDR - Forensic Capture allows details to be captured in complex light conditions
  • Axis Corridor Format maximises the coverage of important areas in narrow scenes by vertically orientating the video stream
  • Easy-to-use video management for up to 16 IP cameras through the free Axis Companion application
  • Video motion detection methods and tampering alarms increase dynamic scene awareness for reliable monitoring
  • Data can be stored locally to the MicroSD card and used as a backup if network connection is lost
  • Support for power and network connectivity through PoE enables simple and cost-effective installation
  • Axis Zipstream technology helps lower bandwidth and storage requirements by analysing and optimising the video stream

Compatible recording platforms

  • Axis Camera Station
  • Milestone XProtect
  • Axis Companion application (free)

Typical applications

The Axis P3225-V Mk II dome delivers reliable, round-the-clock CCTV monitoring of indoor areas in HD 1080p resolution. Typical applications include restaurants, supermarkets and warehouses.



  • Installation guide
  • Windows decoder 1-user license
  • Mounting bracket
  • Cable gasket
  • Resistorx T20 L-key
  • Drill hole template
  • Connector guard

Optional (please select from the above drop down menu):

  • PoE midspan
  • MicroSD card
Back To Top

Key technical features of the Axis P3225-V Mk II


Environment: indoor, vandal-resistant (IK08)
Type: fixed dome
Sensor: progressive scan RGB CMOS 1/3”
Lens: varifocal, remote focus and zoom, P-iris control, IR corrected, 3.0-10.5 mm, horizontal view: 92°-34°, F1.4
Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2, max 4.8 W, typical 3.5 W
Memory: 512 MB RAM, 256 MB Flash


Resolution: (1920 x 1080) to (160 x 90)
Compression: H.264 main and baseline profiles (MPEG-4 Part 10/AVC), Motion JPEG
Frame-rate: with WDR: 25 fps, without WDR: 50 fps
Bandwidth control: multiple, individually configurable streams in H.264 and Motion JPEG, zipstream technology in H.264, VBR/MBR
Day/night: automatically removable infrared-cut filter
Minimum illumination: HD 1080p @ 25 fps with WDR - Forensic Capture and Lightfinder: colour: 0.15 lux, F1.4 B/W: 0.03 lux, F1.4, HD 1080p @ 50 fps: colour: 0.3 lux, F1.4 B/W: 0.06 lux, F1.4
Digital zoom/PTZ digital PTZ supported
Overlay: text and image
Imaging: compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behaviour at low light, wide dynamic range - forensic capture, lightfinder technology, rotation: 0°, 90°, 180°, 270° including Corridor Format

Viewing, detection & recording

Privacy masking: yes
Number of users: not given
Alarm detection: video motion detection, active tampering alarm, AXIS Camera Application Platform enabling installation AXIS video motion detection 3, AXIS cross line detection, AXIS digital auto tracking and 3rd party tracking
Alarm action: file upload: FTP, HTTP, HTTPS, network share and email, notification: email, HTTP, HTTPS, TCP and SNMP trap, video recording to edge storage, send video clip, overlay text
Pre-/post-alarm buffer: yes
Edge storage: microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included), support for recording to network share (network-attached storage or fileserver)
Recording software supported: Axis Camera Station, Axis Companion application


Power: Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 2, max 4.8 W, typical 3.5 W
Network: RJ45 10BASE-T/100BASE-TX with PoE
SD card slot: MicroSD card (card not included)


Dimensions: Ø149 x 101 mm
Weight: 550 g
Casing: polycarbonate casing with encapsulated electronics, IP52 rated, IK08 impact-resistant casing with dehumidifying membrane, colour: white NCS S 1002-B
Warranty: 3 years
Mounting methods: bracket included
Operating temperatures: 0°C to 50°C, humidity 10 to 85% RH (condensing)
Power consumption: max. 4.8W
Dynamic DNS: yes
Protocols supported: IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH
QoS: yes
Security: password protection, IP address filtering, HTTPS encryption, digest authentication, user access log
ONVIF compliant: yes, profile S
