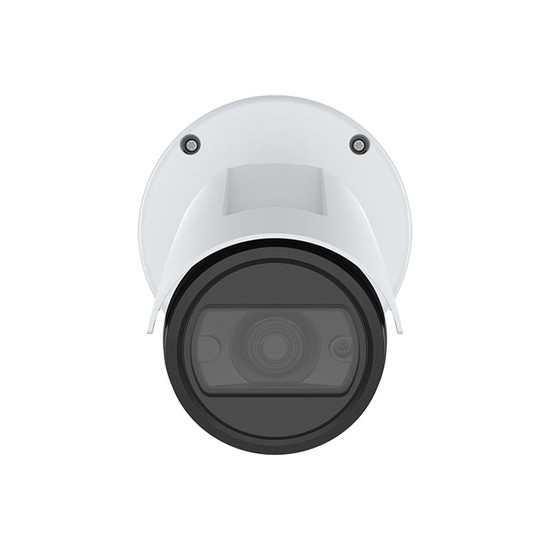

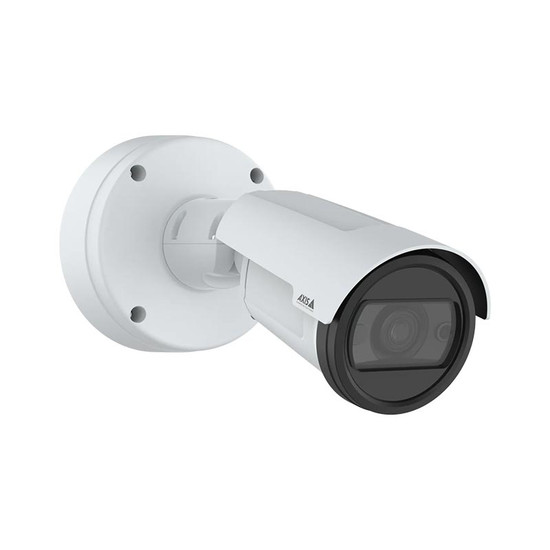

The AXIS P1486‑LE is an intelligent bullet camera with a 1/1.8" CMOS global shutter sensor for clear, low-distortion images of fast moving objects, ideal for traffic monitoring and road policing. Capture high levels of detail at extended distances with the 40mm telephoto lens and electronic image stabilisation, in 3MP resolution at up to 60 fps or 270 fps at lower resolutions. Continuous or strobing IR illumination ensure 24-hour performance for capturing important detail even in complete darkness up to 80m range. Built on the ARTPEC‑9 chipset, it offers advanced image processing and next-generation AI analytics on the edge. Forensic WDR and Lightfinder 2.0 ensures clearer images in challenging lighting. Support for AV1 codec reduces overall video storage and bandwidth requirements. Remote focus and zoom simplifies installation, and the robust IP66/67 and IK10 rated housing ensures reliable performance in demanding environments.
AXIS Object Analytics (AOA) provides real-time alerts from events such as object detection, motion detection, virtual line crossing, and loitering, enhancing security and offering valuable business insights. The camera’s Deep Learning CPU uses AI algorithms to minimise false alarms by accurately classifying objects like people, cars, buses, bikes, and licence plates. Detected objects are displayed on-screen with color-coded bounding boxes for easy tracking. Operators can run up to 10 scenarios simultaneously, delivering a more comprehensive and precise analytics experience.
Available recording and video management options for this camera:
Camera |
|
| Environment: | outdoor |
| Type: | bullet camera |
| Sensor: | 1/1.8” progressive scan RGB CMOS
Global shutter Pixel size 3.45 µm |
| Lens: | Varifocal, 10-40 mm, F1.3-1.4
Horizontal field of view 42˚-11˚ Vertical field of view 30˚-6˚ Minimum focus distance: 3 m (9.8 ft) P-iris lens, IR corrected |
| Day/night: | automatically removable infrared-cut filter
Hybrid IR filter |
| Minimum illumination: | 0 lux with IR illumination on
Colour: 0.1 lux, at 50 IRE F1.3 B/W: 0.02 lux, at 50 IRE F1.3 |
| IR illumination: | OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 80 m (262 ft) or more depending on the scene Continuous and Strobing IR light |
Imaging |
|
| Resolution: | 16:9: 1920x1080 to 640x360
4:3: 2048x1536 to 320x240 |
| Frame rate: | With Forensic WDR: Up to 25/30 fps (50/60 Hz) in all
resolutions
No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions Cropped mode: Up to 200 fps (50/60Hz), 1280x720 Binned mode: Up to 270 fps (50/60Hz), 1024x768 |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Up to 20 unique and configurable video streams1
Axis Zipstream technology in H.264, H.265, and AV1 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265/AV1 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white
balance, day/night threshold, exposure mode, exposure
zones, defogging, compression, orientation: auto, 0°,
90°, 180°, 270° including corridor format, mirroring of
images, dynamic text and image overlay, polygon
privacy masks, barrel distortion correction
Scene profiles: forensic, vivid, traffic overview
Electronic image stabilisation |
| Installation aids: | Pixel counter, remote zoom and focus, straighten image, traffic camera installation assistant |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Scene Metadata, AXIS Image Health Analytics, AXIS Live Privacy Shield, AXIS Video Motion Detection Supported AXIS Perimeter Defender, AXIS License Plate Verifier, AXIS Speed Monitor Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoringBETA, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with trajectories, colour-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Image Health Analytics: | Detection settings: Tampering: blocked image, redirected image
Image degradation: blurred image, underexposed image Other features: sensitivity, validation period |
| Axis Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: Vehicle colour, upper/lower clothing colour, confidence, position |
Video Management |
|
| On-camera recording: | Support for microSD/microSDHC/microSDXC card Recording to network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | ARTPEC-9, Deep learning processing unit (DLPU) |
| Audio: | Audio input:
10-band graphic equalizer Input for external unbalanced microphone, optional 5 V microphone power Digital input, optional 12 V ring power Unbalanced line input Audio output Output through network speaker pairing |
| Power: | Power over Ethernet IEEE 802.3af/802.3at, Type 1
Class 3, max 12.95 W, 10–28 V DC, max 13 W |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/
1000BASE-T
Audio: 3.5 mm mic/line in I/O: Terminal block for 1 supervised alarm input and 1 output (12 V DC output, max. load 25 mA) Power: DC input Sync out (12 V DC output, max. load 25 mA) |
| Dimensions: | For the overall product dimensions, see the dimension drawing
in the product datasheet.
Effective Projected Area (EPA): 0.024 m2 (0.26 ft2) |
| Weight: | 1420 g (3.1 lb)) |
| Casing: | IP66/IP67-, NEMA 4X-, and IK10-rated casing
Aluminum and plastic casing Colour: white NCS S 1002-B |
| Operating temperatures: | Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Maximum temperature according to NEMA TS2 (2.2.7): 74 °C (165 °F) Start-up temperature: -40 °C Humidity 10–100% RH (condensing) Wind load (sustained): 60 m/s (134 mph) |
| Warranty: | 5-year |
Security |
|
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| Edge Security: | Software:
Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTSd
, TLS v1.2/v1.3e
, Network Time Security (NTS), X.509
Certificate PKI, host-based firewall |
