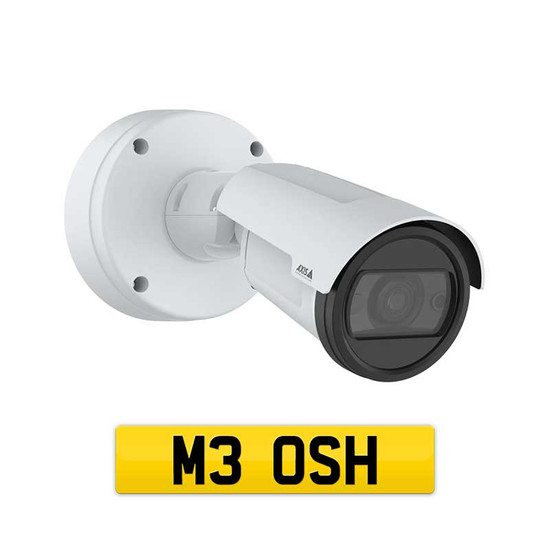

Purpose built for accurate ANPR across roads and car parks, this all-in-one solution combines the AXIS P1485-LE bullet camera with AXIS Licence Plate Verifier software. The 28mm telephoto lens captures crisp images of fast moving objects in HD 1080p resolution, ideal for reliably capturing plates on vehicles travelling up to 65mph across a single lane. The ARTPEC-9 chipset leverages AI-based video analytics to recognise vehicle details including type, colour, make and model, all on the edge - no additional server required. Electronic image stabilisation maintains smooth video while monitoring at extended distances for consistent performance in harsh weather. OptimizedIR illumination up to 45m range ensures dependable performance around-the-clock, while Forensic WDR and Lightfinder 2.0 ensures clearer images in challenging and contrasting lighting. Support for AV1 codec reduces overall video storage and bandwidth requirements. Remote focus and zoom simplifies installation, and the robust IP66/67 and IK10 rated housing ensures reliable performance in demanding environments.
AXIS Object Analytics (AOA) provides real-time alerts from events such as object detection, motion detection, virtual line crossing, and loitering, enhancing security and offering valuable business insights. The camera’s Deep Learning CPU uses AI algorithms to minimise false alarms by accurately classifying objects like people, cars, buses, bikes, and licence plates. Detected objects are displayed on-screen with color-coded bounding boxes for easy tracking. Operators can run up to 10 scenarios simultaneously, delivering a more comprehensive and precise analytics experience.
Available recording and video management options for this camera:
Camera |
|
| Environment: | outdoor |
| Type: | bullet camera |
| Sensor: | 1/2.8” progressive scan RGB CMOS
Pixel size 2.9 µm |
| Lens: | Varifocal, 10.8-28.2 mm, F1.7-1.76
Horizontal field of view 29.4˚-11˚ Vertical field of view 16.5˚-6.3˚ Minimum focus distance: 2.5 m (8.2 ft) P-iris lens, IR corrected |
| Day/night: | automatically removable infrared-cut filter
Hybrid IR filter |
| Minimum illumination: | 0 lux with IR illumination on
Colour: 0.06 lux, at 50 IRE F1.7 B/W: 0.01 lux, at 50 IRE F1.7 |
| Shutter speed: | With Forensic WDR: 1/37000 s to 2 s
No WDR: 1/71500 s to 2 s |
Application |
|
| Compute platform: | Edge |
| Licences: | AXIS Licence Plate Verifier licence included |
| Settings: | Define area of interest in scene.
Allow-, block- and custom list logic. Each list can contain 10,000 plates with a total of 30,000. Missing plate detection. Barrier mode: Open to all, open to allowlisted, open to all but blocklisted. Minimum width: 130 pixels for one-row license plates; 70 pixels for two-row license plates. FIFO event log entries including thumbnail image of license plate. Up to 1000 entries on camera storage. Up to 100 000 entries on AXIS Surveillance Cards. Configurable retention time of stored events |
| Object attributes: | Vehicle data: license plate recognition, license plate
type (GCC), make, model, color, country, region.
Supports 120 makes and 5,000 models with more models added over time |
| Object classes: | Vehicle type: bike, car, SUV, van, pick-up, truck, bus |
Licence Plate Capture |
|
| Detection range: | 7–20 m (23–66 ft) |
| IR illumination: | OptimizedIR with power-efficient, long-life 850 nm IR LED’s with adjustable angle of illumination and intensity. Range of reach 45 m (150 ft) or more depending on the scene |
| Vehicle speed: | Up to 105 km/h (65 mph) with edge analytics |
| Coverage: | Single lane with edge analytics |
| Installation: | Mounting height: 2 m to 8 m (7 ft to 26 ft)
Camera detects tilt and roll angle automatically Built-in licence plate capture assistant optimizes video settings based on mounting height, distance to vehicle, and expected vehicle speed |
Imaging |
|
| Resolution: | 16:9: 1920x1080 to 640x360
16:10: 1280x800 to 320x200 4:3: 1440x1080 to 160x120 |
| Frame rate: | With Forensic WDR: Up to 25/30 fps (50/60 Hz) in all
resolutions
No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Up to 20 unique and configurable video streams1
Axis Zipstream technology in H.264, H.265, and AV1 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265/AV1 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white
balance, day/night threshold, exposure mode, exposure
zones, defogging, compression, orientation: auto, 0°,
90°, 180°, 270° including corridor format, mirroring of
images, dynamic text and image overlay, polygon
privacy masks, barrel distortion correction
Scene profiles: forensic, vivid, traffic overview
Electronic image stabilisation |
| Installation aids: | Pixel counter, remote zoom and focus, straighten image, traffic camera installation assistant |
Analytics |
|
| Applications: | Included
AXIS License Plate Verifier, AXIS Image Health Analytics, AXIS Video Motion Detection Supported AXIS Speed Monitor Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoringBETA, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with trajectories, colour-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Image Health Analytics: | Detection settings: Tampering: blocked image, redirected image
Image degradation: blurred image, underexposed image Other features: sensitivity, validation period |
| Axis Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), licence plates
Object attributes: Vehicle colour, upper/lower clothing colour, confidence, position |
Video Management |
|
| On-camera recording: | Support for microSD/microSDHC/microSDXC card Recording to network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | ARTPEC-9, Deep learning processing unit (DLPU) |
| Audio: | Audio input:
10-band graphic equalizer Input for external unbalanced microphone, optional 5 V microphone power Digital input, optional 12 V ring power Unbalanced line input Audio output Output through network speaker pairing |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 12.95 W, typical (heater off, IR off) 4.63 W
Features: dynamic power mode, low power mode, power meter |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/
1000BASE-T
Audio: 3.5 mm mic/line in I/O: Terminal block for 1 supervised alarm input and 1 output (12 V DC output, max. load 25 mA) Power: DC input |
| Dimensions: | For the overall product dimensions, see the dimension drawing
in the product datasheet.
Effective Projected Area (EPA): 0.024 m2 (0.26 ft2) |
| Weight: | 1420 g (3.1 lb)) |
| Casing: | IP66/IP67-, NEMA 4X-, and IK10-rated casing
Aluminum and plastic casing Colour: white NCS S 1002-B |
| Operating temperatures: | Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
Maximum temperature according to NEMA TS2 (2.2.7): 74 °C (165 °F) Start-up temperature: -40 °C Humidity 10–100% RH (condensing) Wind load (sustained): 60 m/s (134 mph) |
| Warranty: | 5-year |
Security |
|
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Link-Local address (ZeroConf) |
| Edge Security: | Software:
Signed OS, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTSd
, TLS v1.2/v1.3e
, Network Time Security (NTS), X.509
Certificate PKI, host-based firewall |
