| 0654-001

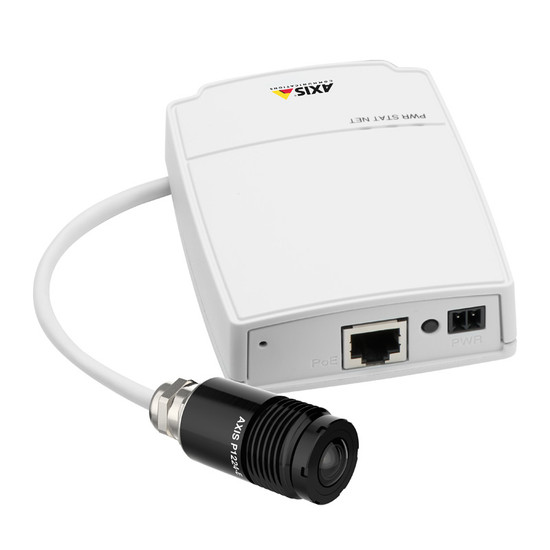

Axis P1224-E outdoor mini IP camera with HD 720p, 145° wide angle lens, MicroSD card recording and PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

Designed for unobtrusive outdoor monitoring, this mini IP camera provides a 145° wide angle lens for optimum scene coverage and the lens can be located up to 8m away from the main unit.

  • PoE supplies power and network connection
  • Corridor Format for viewing narrow scenes
  • Flexible installation via detachable cable
  • Fixed lens: 145° viewing angle
  • HD 720p resolution
Hurry! Only left

This product is discontinued, for alternatives please see Mini IP Cameras

Overview of the Axis P1224-E

The Axis P1224-E miniature outdoor HD 720p network camera with very wide angle lens is ideal for unobtrusive installation. Features include integrated video motion detection (VMD) with active tampering alarm, Axis Corridor Format footage, on-camera recording, PoE and support for mobile phones and tablets.

Part of the P12 series of miniature in size, non-invasive network cameras, the Axis P1224-E provides a 145° wide angle lens for optimum scene coverage and capture of nearby subjects in crisp HD 720p. This mini IP camera from Axis comprises a main unit and a separate IP66-rated lens-sensor module that can be located up to 8m away from the main unit over the integrated connector cable. The P1224-E is also ideal for use at ATMs and above till points in retail environments.

Axis Corridor Format enables vertically-orientated video recording to maximise image capture around the points of interest and is a useful feature for when installing the camera in doorways. Furthermore, the camera provides reliable and accurate alarm and recording triggering through built-in video motion detection which, when combined with the camera's active tampering alarm, provides for powerful event and detection properties.

The unit supports edge storage onto an integrated MicroSD card (card not included) and provides a temporary storage solution until data can be transferred to a centralised device. It also acts as a backup in case of network failure. The P1224-E can be powered via an external power supply or through Power over Ethernet (PoE) which reduces system costs as a single cable feeds both power and network connectivity.

Axis Companion video managament software can be downloaded to enable user-friendly viewing and playback for up to 16 cameras and also supports mobile viewing for handy remote access via iPhone, iPad and Android.

Please note: this camera does not come with a power supply, please select a PoE midspan from the accessories tab if required.

Key features & benefits

  • Miniature form factor provides non-invasive surveillance, ideal for installation behind walls and ceilings
  • Sensor module can be unobtrusively installed up to 8m away from the main body
  • 145° lens provides wide angle viewing and is ideal for capturing subjects in close-up, offering the widest view in the Axis P12 series of cameras
  • HDTV 720p video capture enables high quality surveillance
  • The sensor module is IP66-rated and so is protected against dust, snow, ice and rain and can operate in temperatures from -20°C to 50°C for effective external use
  • Support for Axis Corridor Format allows for vertically-orientated video for maximum image quality and is a particularly useful feature for this camera as it can be mounted on walls and doorways
  • Video motion detection with active tampering alarm provides powerful event management capabilities and accurate monitoring
  • H.264 and MJPEG compression are both supported and can be used at the same time
  • MicroSD card recording stores data locally until it can be transferred to a centralised device
  • Support for PoE and an external power supply provides alternate power choices depending on application
  • Support for the Axis Companion application enables remote viewing and playback via mobile devices for monitoring on the move
  • Comes with bracket for flush mount installation

Compatible recording platforms

  • Axis Camera Station
  • Milestone XProtect
  • Morphean Cloud CCTV
  • CamStreamer Cloud

Typical applications

The Axis P1224-E miniature network camera provides non-invasive surveillance and is suitable for external use (sensor module only) in compact spaces where subjects may be at close range such as doorways, ATMs, lifts, box offices, walls and ceilings. The camera could also be used in bird boxes and wildlife camera scenarios due to its tiny size and outdoor capability.



  • Mounting kit
  • Installation guide
  • Installation and management software CD
  • Windows decoder 1-user license
  • AVHS authentication key


  • PoE midspan
  • MicroSD card

Mounting options (select optional accessories from dropdown menu)

  • Multiple -Axis TF1902-RE
Back To Top

Key technical features of the 0654-001 Axis P1224-E


Type:miniature network camera
Sensor:1/4 progressive scan RGB CMOS
Lens:fixed iris, fixed focus, 1.56 mm: 145° view, F2.8
Power:8~28 V DC or Power over Ethernet IEEE 802.3af/802.3at type 1 class 3, max. 10.8 W
Memory:Power over Ethernet IEEE 802.3af/802.3at type 1 class 2 (max 6.49 W), 8~28 V DC max 4.7 W


Resolution:1280x720 to 320x180
Compression:H.264 (MPEG-4 Part 10/AVC), Motion JPEG
Bandwidth control:multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth VBR/CBR H.264
Frame rate:H.264: up to 25/30 fps (50/60 Hz) in all resolutions, Motion JPEG: up to 25/30 fps (50/60 Hz) in all resolutions
Light sensitivity:1.8~10000 lux
Video overlay:text and image
Imaging:compression, colour, brightness, sharpness, contrast, white balance, exposure control, exposure zones, backlight compensation, fine tuning of behaviour at low light, rotation, text and image overlay, mirroring of images, privacy mask, Axis' Corridor Format

Viewing, detection & recording

Privacy masking:yes
Number of users:not given
Alarm detection:video motion detection, active tampering alarm, AXIS Camera Application Platform enabling installation of additional applications
Alarm action:file upload: FTP, HTTP, network share and email, notification: email, HTTP and TCP, external output activation, video recording to edge storage
Pre-/post-alarm buffer:yes
On-camera recording:MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included)
Direct-to-NAS storage:yes, compatible with Buffalo TeraStation NAS range
Recording software supported:Axis Companion software


Power:Power over Ethernet IEEE 802.3af/802.3at type 1 class 2 (max 6.49 W), 8~28 V DC max 4.7 W
Network:RJ45 for 10BASE-T/100BASE-TX PoE
Alarm:1 alarm input and 1 output
Other:RJ12 for the sensor unit, terminal blocks for power


Dimensions:body: 76mm x 104mm, sensor: 20mm diameter x 52mm
Weight:0.25kg (net)
Warranty:5 years
Mounting methods:included flush mount bracket
Operating temperatures:-20°C to 50°C, main unit: humidity 10~85% RH (non-condensing), sensor unit: humidity 10~100% RH (condensing)
Power consumption:PoE: max 6.49 W, 8-28 V DC: 4.7 W
Dynamic DNS:yes
Protocols supported:IPv4/v6, HTTP, HTTPSb, SSL/TLSb, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Security:password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb, network access control, digest authentication, user access log
ONVIF compliant:yes, profile S
