| 0298-031

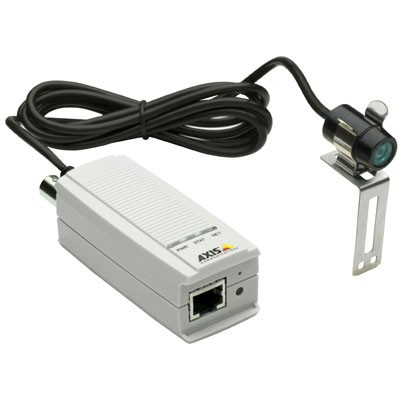

Axis M7001 mini surveillance kit, including a video encoder and an outdoor IP66-rated mini bullet camera

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

Overview of 0298-031 Axis M7001 & IP66-rated analogue camera

This product has now been discontinued and replaced by the Axis P1214 (for indoor), and the Axis P1214-E (for outdoor).

The Axis M7001 Mini Surveillance Kit is an affordable IP security camera solution ideally suited to sensitive surveillance applications, such as monitoring of till points, store rooms or for a variety of home surveillance applications. The included compact video encoder and miniature security camera are capable of streaming video using H.264 compression, significantly reducing demands on network resources. The video encoder, which comprises the main bulk of the kit, measures just 101 mm x 37.4 mm x 30.1 mm. These small dimensions allow for a wide variety of installation options.

The encoder and security camera also feature Power over Ethernet. This means that a network connection and power supply can be channelled through a single cable, reducing installation costs and making it easier to install the encoder and camera in unobtrusive areas. The miniature camera that accompanies the video encoder is fully weatherproofed and IP66-rated, providing a flexible solution that can be used both indoors and outdoors. Alongside this, built-in motion detection can trigger recording of camera footage and notify you via e-mail of any untoward activity.

The Axis M7001 Mini Surveillance Kit also comes with a copy of Axis Camera Station, providing you with an out-of-the-box monitoring and recording solution free of charge.

Please note: the video encoder supplied with this bundle does not come with a power supply. Please select if required.

Key features & benefits of 0298-031 Axis M7001 & IP66-rated analogue camera

  • The IP66-rated camera is fully weatherproof and can be installed indoors or outdoors depending on requirements
  • H.264 streaming reduces demands on your network's resources without compromising image quality
  • Built-in motion detection will inform you via e-mail of any untoward activity and automatically commence recording
  • Power over Ethernet provides network connectivity and power through one cable, simplifying installation and giving you more flexibility when deciding where to situate the camera
  • A fully-licensed copy of Axis Camera Station is included, providing a complete recording and monitoring solution without the need to buy additional software

Typical applications of 0298-031 Axis M7001 & IP66-rated analogue camera

The Axis M7001 Mini Surveillance Kit is well suited to a variety of applications where a non-invasive surveillance presence is required, such as till points, home security and filming of wildlife

Accessories for 0298-031 Axis M7001 & IP66-rated analogue camera


  • Axis M7001 video encoder
  • IP66-rated miniature camera
  • Installation guide
  • CD with installation tools
  • Recording software and user's manual
  • Windows decoder (1-user licence)


  • Axis Camera Station video recording software for live image monitoring, recording, playback and system management for installations of more than one camera
Back To Top

Key technical features for 0298-031 Axis M7001 & IP66-rated analogue camera

Environment:indoor/outdoor, IP66-rated miniature analogue camera included
Lens:fixed iris; horizontal field of view - 51°
Power:Power over Ethernet
Processor/memory:ARTPEC-B, 64 MB RAM, 128 MB Flash
Resolution:720x480 - 176x120
Compression:H.264, Motion JPEG. Two simultaneous streams, one in H.264 and one in Motion JPEG, in all resolutions
Frame-rate:H.264 - 30 fps in all resolutions; Motion JPEG - 30 fps in all resolutions
Bandwidth control:VBR/CBR H.264, controllable frame rate and bandwidth
Minimum illumination:1 lux
Video overlay:text and image
Analogue video:2.5 mm (0.1”) analog composite video tele plug input RS-422/RS-485
Imaging:settings - compression, color, brightness, contrast, saturation, rotation, aspect ratio correction, mirroring of images
Viewing, detection & recording
Privacy masking:yes
Alarm detection:built-in motion detection
Alarm notifications:file upload via FTP, HTTP, notification via email, HTTP and TCP
Recording triggers:built-in motion detection
Pre-/post-alarm buffer:20 MB pre- and post-alarm
Recording software included:Axis Camera Station One, full live monitoring, 1-channel recording and playback (not Mac-compatible)
Compatible recording platforms (not included)
Software:Axis Camera Station, Milestone XProtect
Power:Power over Ethernet IEEE 802.3af Class 2
Network:RJ-45 10BASE-T/100BASE-TX
Dimensions:M7001 video encoder: 101 mm (4.0") x 37.4 mm (1.47") x 30.1mm (1.18"); included mini camera: ∅ 15 mm (0.59") x 15.3 (0.6") x 28.4 (1.1")
Weight:82 g (0.18 lb)
Warranty:one year
Mounting methods:ceiling, desktop, wall
Operating temperatures:0 - 50 °C (32 - 122 °F); humidity 20 - 80% RH (non-condensing)
Power consumption:IEEE 802.3af Class 2
Dynamic DNS:yes
Protocols supported:IPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Security:password protection, IP address filtering, HTTPS encryption, digest authentication, user access log
