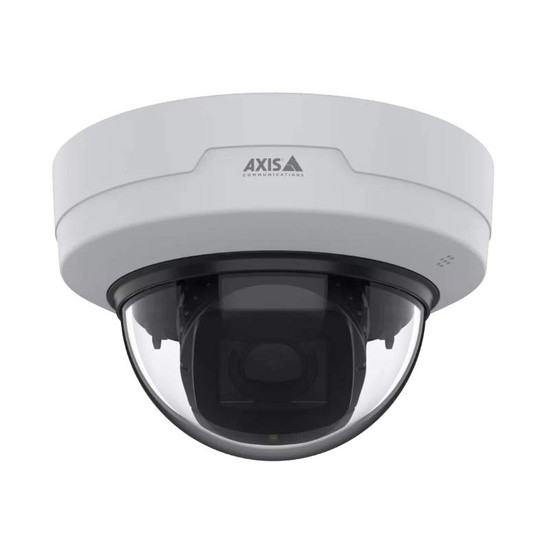

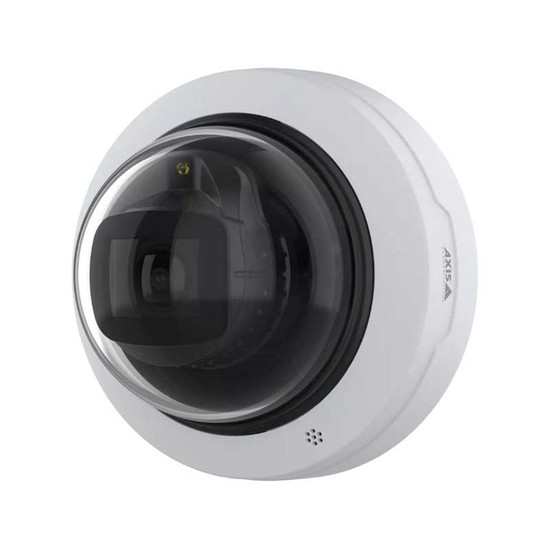

Overview of the AXIS M4225-LVE outdoor varifocal dome camera
- Lightweight, compact and affordable dome camera with 5MP resolution
- IP66 and IK10 rated casing for resistance against vandalism and harsh weather
- Preinstalled AXIS Object Analytics enhanced with deep learning
- OptimizedIR delivers effective illumination in complete darkness up to 20m
- Integrated sound sensor with AXIS Audio Analytics for detecting loud sounds
This compact and versatile dome camera is suitable for outdoor use, delivering detailed 5MP video around the clock. Its motorised varifocal lens offers a horizontal viewing angle of 38°–98° and can be adjusted remotely during setup. Forensic WDR and Lightfinder 2.0 ensure clear images in low light and high-contrast conditions, while OptimizedIR provides effective illumination in total darkness up to 20m. Lightweight and easy to install, it comes supplied with a weathershield to maintain visibility in harsh conditions, and the IP66- and IK10-rated casing offers strong protection against rain and vandalism.
Video Analytics
AXIS Object Analytics (AOA) reliably detects, classifies, and counts people and vehicles, including cars, lorries, buses, and bikes, processing video on the edge for faster alerts. Powered by the ARTPEC-8 chip with deep learning, it reduces false alarms by filtering out irrelevant motion alerts. Detected objects are clearly marked with colour-coded bounding boxes. Up to 10 virtual scenario rules can be configured for greater situational awareness, such as line crossing and zone entry. AXIS Image Health Analytics alerts you to potential issues with the camera's field of view like obstructions, degradation, or redirection.
This camera includes an acoustic sensor and AXIS Audio Analytics to detect critical sound events like screams or glass breaking, ideal where recording audio is restricted but sound detection for real-time alerts is required. Adaptive audio triggers alerts when noise exceeds set thresholds.
This camera also supports other AXIS and third-party applications, enabling greater functionality for the camera to meet more specialist demands.
Recording and Video Management
See below for available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- AXIS Camera Station Software
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
- Morphean Cloud CCTV
Example Use Cases
Flexible and versatile, this advanced dome camera is ideal for high-performance monitoring in tough weather conditions, including:
- Shops and supermarkets - for monitoring customer flow, detecting loitering or aggression, and safeguarding entrances/exits
- Schools or campus grounds - monitor building access points and detect sound-based incidents like shouting or glass breaking in restricted areas
- Hospitals and clinics - deploy near emergency departments, entrances, or corridors to detect aggression or raise sound-based alerts without recording conversations
- Office buildings - monitor access points and shared spaces with the benefit of discreet sound detection
AXIS M42 Series Variants
- AXIS M4225-LVE in/outdoor varifocal dome camera (02814-001)
- AXIS M4227-LVE in/outdoor varifocal dome camera (02815-001)
- AXIS M4228-LVE in/outdoor varifocal dome camera (02816-001)
Accessories included
- Camera

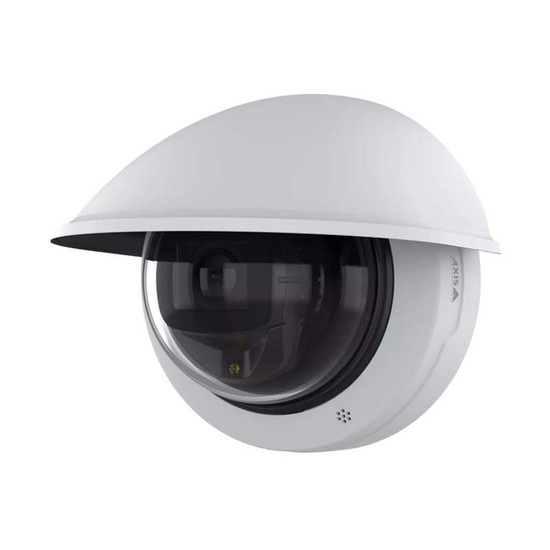

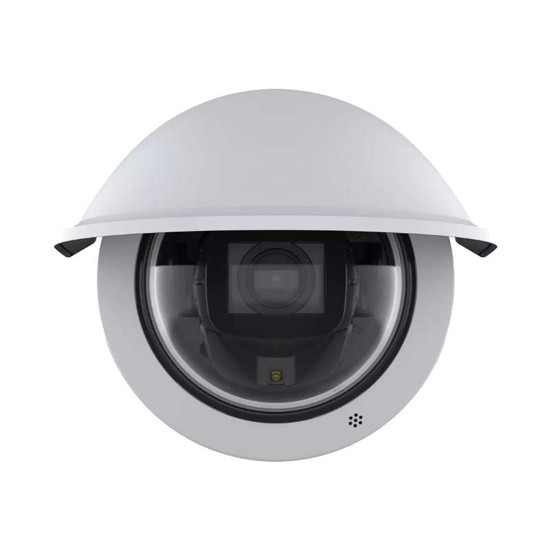

- Weathershield
- Installation guide
- Connector guard
- Cable gaskets
- Owner authentication key
Key technical features of the AXIS M4227-LVE outdoor varifocal dome camera
Camera |
|
| Environment: | indoor/outdoor |
| Type: | Fixed varifocal dome |
| Image sensor: | 1/2.8” progressive scan RGB CMOS
Pixel size 2.90 µm |
| Audio sensor: | Acoustic sensor |
| Lens: | Varifocal, 3.2–7.2 mm, F1.6–2.7
Horizontal field of view: 98–38° Vertical field of view: 66°–26° Minimum focus distance: 1.0 m (3.2 ft) Fixed iris, IR corrected, remote zoom and focus |
| Day/night: | automatically removable infrared-cut filter |
| Camera adjustment: | Pan ±180°, tilt -10 to +65°, rotation ±180° |
| Minimum illumination: | Colour: 0.13 lux at 50 IRE, F1.6
B/W: 0.03 lux at 50 IRE, F1.6 0 lux with IR illumination on |
| IR illumination: | OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 20 m (66 ft) or more depending on the scene |
Imaging |
|
| Resolution: | 16:9: 2688x1512 to 640x360
4:3: 2592x1944 to 320x240 |
| Frame rate: | Up to 25/30 fps (50/60 Hz) in all resolutions |
| WDR: | Forensic WDR: Up to 120 dB depending on scene |
| Video streaming: | Up to 20 unique and configurable video streams1
Axis Zipstream technology in H.264, H.265 and AV1 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265/AV1 Low latency mode Video streaming indicator |
| Image settings: | Saturation, contrast, brightness, sharpness, white balance, day/night threshold, exposure mode, exposure zones, compression, rotation: 0°, 90°, 180°, 270° including corridor format, mirroring, dynamic text and image overlay, privacy masks |
| Installation aids: | Pixel counter, remote zoom and focus, level grid |
Analytics |
|
| Applications: | Included
AXIS Object Analytics, AXIS Image Health Analytics, AXIS Audio Analytics, AXIS Scene Metadata, AXIS Live Privacy Shield, AXIS Video Motion Detection, audio detection Supported Support for AXIS Camera Application Platform enabling installation of third-party applications |
| Axis Object Analytics (AOA): | Object classes: humans, vehicles (types: cars, buses,
trucks, bikes, other)
Scenarios: line crossing, object in area, time in area, crossline counting, occupancy in area, tailgating detection, PPE monitoringBETA, motion in area, motion line crossing Up to 10 scenarios Other features: triggered objects visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Axis Audio Analytics: | Features: adaptive audio detection, audio classification
Audio classes: scream, shout, glass break Event metadata: audio detections, classifications |
| Axis Image Health Analytics: | Detection settings:
Tampering: blocked image, redirected image Image degradation: blurred image, underexposed image Other features: sensitivity, validation period |
| Axis Scene Metadata: | Object classes: humans, faces, vehicles (types: cars,
buses, trucks, bikes), license plates
Object attributes: vehicle color, upper/lower clothing color, confidence, position Audio data: audio level |
Video Management |
|
| On-camera recording: | Support for microSD/microSDHC/microSDXC card Recording to network-attached storage (NAS) |
| Network video recorders: | Axis NVRs, Milestone Husky NVRs, ONVIF support for 3rd party NVRs |
| Video Management Software: | Axis Camera Station, Milestone XProtect, ONVIF support for 3rd party VMS |
| Cloud: | Milestone Arcules VSaaS, Morphean Cloud CCTV |
General |
|
| System on chip (SoC): | ARTPEC-8 |
| Audio: | Integrated sound sensor |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at/802.3bt
Type 1 Class 3, max 12.3 W, typical (heater off, IR off) 3.1 W Features: power meter |
| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX |
| Dimensions: | For the overall product dimensions, see the dimension drawing
in the product datasheet.
Effective Projected Area (EPA): 0.041 m2 (0.44 ft2) |
| Weight: | 540 g (1.2 lb) |
| Casing: | IP66-, NEMA 4X- and IK10-rated
Polycarbonate hard-coated dome Plastic casing, polycarbonate (PC) dome, weathershield (PC/ASA) Colour: white NCS S 1002-B For repainting instructions, go to the product’s support page |
| Operating temperatures: | Temperature: -30 °C to 50 °C (-22 °F to 122 °F)
Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -20 °C (-4 °F) Humidity: 10–100% RH (condensing) |
| Warranty: | 5-year |
| Firmware support to: | TBC |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS2 , HTTP/ 2, TLS2 , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Edge Security: | Software: Signed OS, brute force delay protection,
digest authentication and OAuth 2.0 RFC6749 OpenID
Authorization Code Flow for centralized ADFS account management, password protection, Axis Cryptographic Module (FIPS 140-2 level 1) Hardware: Axis Edge Vault cybersecurity platform Secure keystore: Secure element (CC EAL 6+, FIPS 140- 3 Level 3), system-on-chip security (TEE) Axis device ID, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)3 , IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS3 , TLS v1.2/v1.33 , Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
