Axis Communications | CL-01241-001

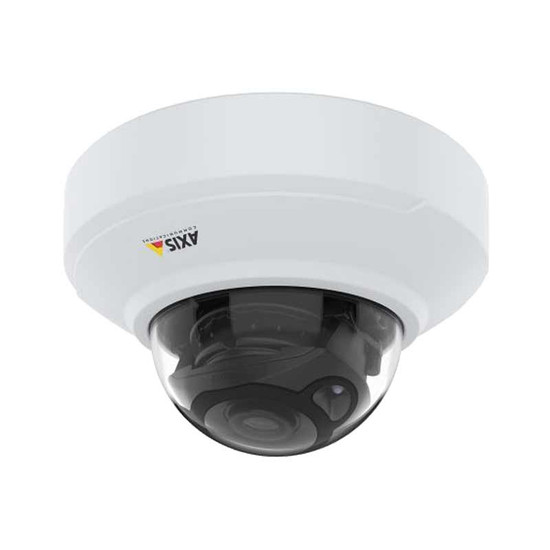

Axis M4206-LV indoor varifocal mini-dome with 3MP resolution, 15m OptimisedIR, PoE and HDMI output (Stock clearance)
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Suitable for small installations and delivering clear imaging in challenging lighting conditions, this mini-dome provides an attractively priced monitoring solution for indoor spaces - 24 hours a day.
- 3MP video resolution
- Varifocal lens: 45° - 100° horizontal viewing angle
- OptimisedIR: up to 15m range of reach
- Corridor Format for viewing narrow scenes
- HDMI output for streaming to local monitor
- Axis OS supported until 17-09-2026
Overview of the Axis M4206-LV mini-dome indoor IP camera (Stock clearance)
- Condition: Box opened for testing
- Axis OS supported until 17-09-2026
- Free delivery to mainland UK & EU
- No returns or refunds
- Serial number: ACCC8EDEA1D7
- Quantity: 1
This 3MP indoor mini-dome IP camera delivers smooth video at up to 30 fps, with true day/night recording and OptimisedIR illumination up to 15m for 24-hour monitoring. It features a varifocal lens for adjustable angles, covering horizontal views between 45° - 100°. It includes WDR for balancing scenes with uneven and challenging lighting.
Axis Zipstream reduces bandwidth and storage use by 50%. The device includes video motion detection alarms, remote focus/zoom, and PoE for simplified installation. HDMI output supports live streaming to an HD monitor to facilitate easy setup.
Recording and Video Management
Available recording and video management options for this camera:
- Record directly to on-board microSD Card (not included)
- Axis Camera Station Software
- Axis Camera Station NVRs
- Milestone XProtect video management software
- Morphean Cloud CCTV
Included Accessories
- Installation guide
- Windows® decoder 1-user license
Key technical features of the Axis M4206-LV mini-dome indoor IP camera
Camera |
|
| Environment: | indoor |
| Type: | varifocal |
| Sensor: | 1/2.5” progressive scan RGB CMOS |
| Lens: | varifocal, 3–6 mm, F2.0 Horizontal field of view: 100°–45° Vertical field of view: 72°–34° Remote focus and zoom, fixed iris |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 4.6 W, max 8.1 W |
| Memory: | 512 MB RAM, 512 MB Flash |
Video |
|
| Resolution: | 2048x1536 to 320x240 |
| Compression: | H.264 (MPEG-4 Part 10/AVC) Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main and High Profiles Motion JPEG |
| Frame-rate: | 25/30 fps with power line frequency 50/60 Hz |
| Bandwidth control: | multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/MBR H.264/H.265 HDMI |
| Day/night: | automatically removable infrared cut-filter |
| Minimum illumination: | colour: 0.26 lux at 50 IRE F2.0 B/W: 0.05 lux at 50 IRE F2.0, 0 lux when IR illumination is on |
| Digital zoom/PTZ | yes |
| Video overlay: | text and image |
| Imaging: | compression, colour, brightness, sharpness, contrast, white balance, exposure control, WDR: up to 110 dB depending on scene, text and image overlay, mirroring of images, privacy mask Rotation: 0°, 90°, 180°, 270°, including Corridor Format |
Viewing, detection & recording |
|
| Privacy masking: | yes |
| Number of users: | not given |
| External alarm inputs and outputs | no |
| Alarm detection: | analytics, edge storage events, virtual inputs through API |
| Alarm action: | record video: SD card and network share, upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload, notification: email, HTTP, HTTPS, TCP and SNMP trap Overlay text |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | microSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included), support for recording to network-attached storage |
| Recording software supported: | Axis Camera Station, Axis Companion software |
Connections |
|
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 4.6 W, max 8.1 W |
| Network: | RJ45 10BASE-T/100BASE-TX PoE HDMI type D |
Other |
|
| Dimensions: | 71mm x 121mm |
| Weight: | 0.37kg (net) |
| Colour: | white |
| Mounting methods: | ceiling, wall |
| Operating temperatures: | 0°C to 45°C, humidity 10~85% RH (non-condensing) |
| Power consumption: | max. 8.1W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, DHCP, SOCKS, SSH, HDMI 1.4b, LLDP |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xb network access control, digest authentication, user access log, centralised certificate management, brute force delay protection, signed firmware |
| ONVIF compliant: | yes, profile S |
