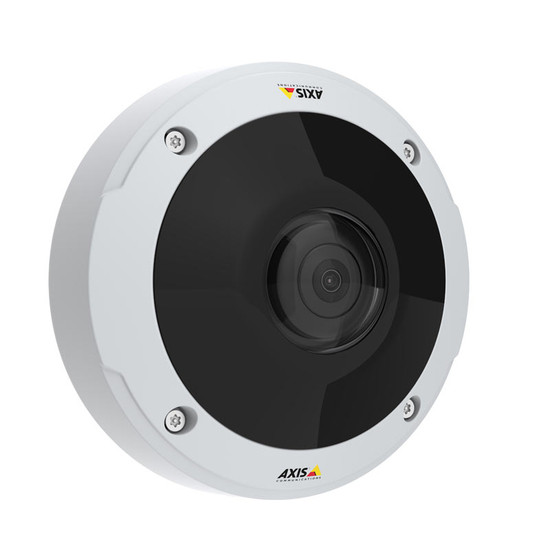

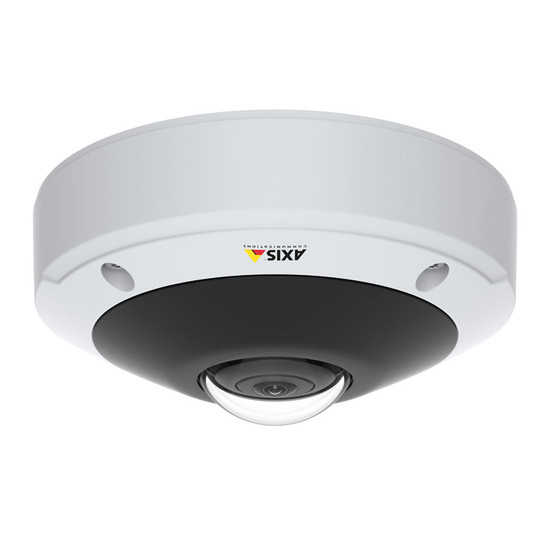

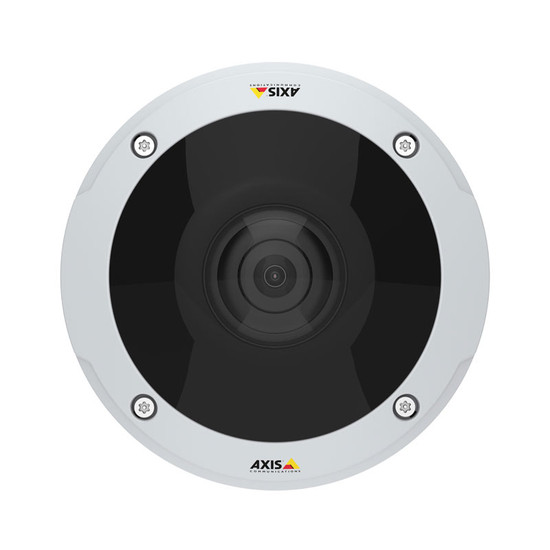

Axis M3057-PLVE outdoor 6MP IP camera with 360° field of view, Forensic WDR, Lightfinder, up to 20m IR, HDMI output and PoE
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Suitable for use in exposed indoor or outdoor locations, this vandal-resistant Axis dome IP camera delivers high resolution, 360° overviews – in any lighting condition. It also features an HDMI output for live streaming to a local monitor.
- Forensic WDR & Lightfinder improve imaging
- HDMI output for streaming to local display
- Up to 20m OptimisedIR illumination
- Fisheye lens: 360° viewing angle
- 6MP resolution
This product is discontinued, an alternative model is the Axis M4317-PLVE
Overview of the Axis M3057-PLVE
This dome IP camera by Axis delivers 6MP resolution at up to 50 frames per second (fps), complete with true day/night recording and infrared (IR) illumination up to 20m. Part of the best-selling Axis M30 series, the unit is housed in an IK10-rated casing and features a hemispheric lens which offers full 360° overviews of exposed indoor or outdoor areas. The camera also features an integrated HDMI output for live streaming to a local HD monitor and can be accessed remotely via the free Axis Companion application.
The camera’s original 360° image can be seen with less distortion, thanks to support for various viewing modes such as double panorama and quad view. Users also have the ability to examine specific areas of the fisheye image in closer detail using digital pan/tilt/zoom (PTZ) controls. In addition, these zoomed-in sections can then be cropped and used in combination with the camera’s multi-view streaming feature. Multi-view allows the original 360° overview to be streamed simultaneously alongside a maximum of two cropped areas, or one dewarped view.
Axis’ OptimisedIR technology intelligently adapts the level of IR illumination from the unit’s integrated LEDs to best suit the scene and avoid overexposure. Advanced imaging technologies such as Forensic WDR ensures the capture of details in high contrast scenes, and Axis’ Lightfinder provides full colour viewing in ambient light extremes.
Configurable video motion detection alarms are supported to help provide reliable and accurate security surveillance. When triggered, these alarms can send alerts directly to the user via notifications such as email. Detection alarms can also be set to trigger edge recording - ensuring all motion is captured.
Axis Companion software is supported and provides an easy to use video management solution for up to 16 IP cameras. The free software allows users to record and playback video footage from the camera’s MicroSD card (not included) for an affordable, remote monitoring solution. Axis Companion is available as a PC client and mobile application
Please note: there is no power supply included with this unit. It is power over ethernet capable.
Key features & benefits
- Fisheye lens with a 360° angle of view offers panoramic overviews of indoor or outdoor locations
- Up to 6 megapixel resolution is supported to provide high quality IP CCTV surveillance
- Outdoor-ready housing is IK10-rated to provide protection in exposed areas
- Viewing modes including panorama and quad view allow areas of the scene to be seen with little distortion
- Digital pan/tilt/zoom controls allow users to examine areas of the original image in detail
- Multi-view streaming allows the full 360° image to be streamed simultaneously alongside 2 cropped views or a single dewarped view
- Up to 20m OptimisedIR night vision for clear CCTV monitoring in dark conditions
- Forensic WDR enables details in scenes with both bright and dark areas to be viewed clearly
- Improved performance in low light conditions with Axis Lightfinder technology
- Configurable video motion detection alarms notify users of activity and enhance security monitoring
- Simple video management for up to 16 cameras using the free Axis Companion application
- HDMI output allows the connection of an HD monitor for live footage display
- Integrated MicroSD card slot provides edge storage and allows the camera to be used as a standalone unit
- Axis' Zipstream technology lowers bandwidth by analysing and optimising the video stream in real-time
- PoE support reduces cabling and offers a cost-effective installation solution
Compatible recording platforms
- Axis Camera Station
- Milestone XProtect
- Axis Companion application (free)
Typical applications
The Axis M3057-PLVE is a feature-packed dome IP camera that delivers high resolution, 360° overviews – in any lighting condition. Suitable for use in exposed indoor or outdoor locations, typical applications include train station terminals, production lines and airports.
Accessories
Included:
- Installation guide
- Windows decoder 1-user license
- Drill hole template
- Cable gaskets
- Connector guard
- I/O connector
- Resistorx T20 L-key
- Mounting bracket
- Cable hole lid
- View protector
Optional:
- PoE midspan
- MicroSD card
Key technical features of the Axis M3057-PLVE
Camera |
|
| Environment: | outdoor-ready (IP66 and IK10-rated) |
| Type: | fixed mini dome |
| Sensor: | 1/1.8” progressive scan RGB CMOS |
| Lens: | fixed iris, fixed focus, 1.6 mm, F2.0, horizontal field of view: 185°, vertical field of view: 185° |
| Audio: | not given |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, typical: 7.7 W, max: 12.95 W |
| Memory: | 2 GB RAM, 512 MB Flash |
Video |
|
| Resolution: | 360° overview: (2048 x 2048) to (160 x 160), panorama: (2560 x 960) to (192 x 72), double panorama: (2560 x 1920) to (256 x 144), quad view: (2560 x 1920) to (256 x 144), corner left or right: (2368 x 1184) to (192 x 72), double corner (2048 x 2048) to (320 x 240), corridor: (2560 x 1920) to (256 x 144) |
| Compression: | H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profiles, Motion JPEG |
| Frame-rate: | 360° overview: up to (2048 x 2048) @ 30/15 fps, dewarped view in max resolution and 360° overview up to (1920 x 1920) @ 25/13 fps, view areas in (1280 x 720) and 360° overview up to (1200 x 1200) @ 30/15 fps |
| Bandwidth control: | multiple, individually configurable streams in H.264 and Motion JPEG, controllable frame rate and bandwidth, Axis' Zipstream technology in H.264, VBR/MBR H.264, HDMI |
| Day/night: | automatically removable infrared-cut filter |
| Minimum illumination: | colour: 0.16 lux, b/w: 0.03 lux, 0 lux with IR illumination, IR range: up to 20m OptimisedIR |
| Digital zoom/PTZ | digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views, preset positions, guard tour |
| Video overlay: | text and image |
| Imaging: | compression, colour, brightness, sharpness, contrast, local contrast, white balance, exposure control, exposure zones, forensic WDR, noise reduction, rotation: 0°, 90°, 180°, 270°, mirroring of images, Corridor Format |
| Multi-view streaming | 360° overview, dewarped panorama, double panorama, corridor and quad views. up to 4 individually cropped out and dewarped view areas. all different views can be streamed simultaneously. when streaming 4 dewarped view areas and one 360° overview in max resolution: up to 14 fps per stream |
Viewing, detection & recording |
|
| Privacy masking: | yes |
| Number of users: | not given |
| External alarm inputs and outputs | terminal block for 1 supervised alarm input and 1 digital output |
| Alarm detection: | included: Axis Video Motion Detection, active tampering alarm, support for AXIS Camera Application Platform enabling installation of third-party applications |
| Alarm action: | record video: SD card and network share, upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email, notification: email, HTTP, HTTPS, TCP and SNMP trap PTZ: PTZ preset, start/stop guard tour Overlay text, external output activation |
| Pre-/post-alarm buffer: | yes |
| On-camera recording: | MicroSD/microSDHC/microSDXC slot supporting memory card up to 64 GB (card not included), support for recording to dedicated network-attached storage (NAS) |
| Recording software supported: | Axis Companion Software, Axis Camera Station |
Connections |
|
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, typical: 7.7 W, max: 12.95 W |
| Network: | RJ45 10BASE-T/100BASE-TX PoE |
| Alarm I/O | terminal block for 1 supervised alarm input and 1 digital output |
| Other | HDMI type D |
Other |
|
| Dimensions: | Ø149mm x 66mm |
| Weight: | 0.77kg |
| Casing: | colour: white, aluminium and polycarbonate casing, encapsulated electronics |
| Warranty: | 5 years |
| Mounting methods: | ceiling, wall |
| Operating temperatures: | -0°C to 40°C |
| Power consumption: | max. 12.95W |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4/v6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, HDMI 1.4b |
| QoS: | yes |
| Security: | password protection, IP address filtering, HTTPSb encryption, IEEE 802.1Xb network access control, digest authentication, user access log |
| ONVIF compliant: | yes, profile S |
