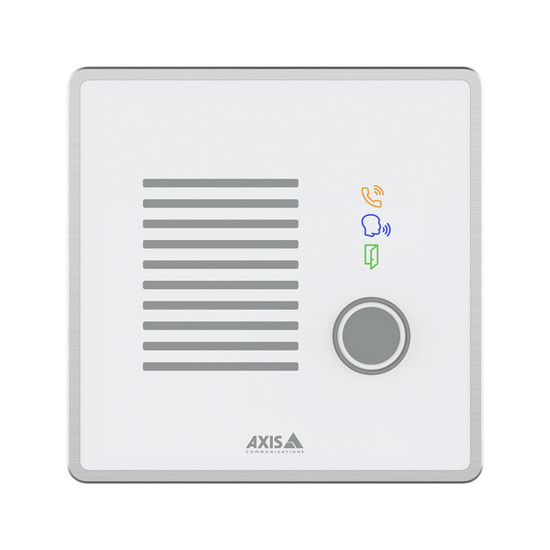

Axis I7020 indoor network intercom for sterile environments, with 2 x integrated microphones, VoIP support, echo cancellation, I/O and PoE
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
This compact intercom enables two-way communication across IP networks with crystal clear quality, regardless of background noise. Ideal for healthcare environments, the flat surface is easy to clean and prevents bacteria build up.
- Intercom designed for use in sterile environments
- Flat surface prevents bacteria build up and is easy to clean
- Meets ISO 14644-1 requirements to ensure air cleanliness
- 2 x integrated microphones for enhanced clarity
- Minimises background noise with echo cancellation and noise reduction
- Axis 5-year warranty, firmware support until 31-12-2033
Overview of the Axis I7020 network audio intercom
- Sleek, easy-to-clean indoor intercom designed for use in sterile environments
- Enables two-way audio communication with operators across IP networks
- Echo cancellation and noise reduction ensures voices are heard and understood
- Meets ISO 14644-1 requirements for air cleanliness
- Open-platform design can easily integrate with access control devices
Compact and sleek, this indoor intercom delivers crystal clear audio quality, ensuring smooth two-way communication across IP networks. It integrates with I/O for use in a door access system of any kind or use as a reader. It is built-for and ideal for use in sterile and clean environments with segregated zones for authorised-only access. The smooth flat surface is easy to clean and can withstand daily wipe-downs with strong cleaning fluids and detergents. Speak directly with personnel and operators in control rooms who can authorise site access, creating a more secure environment for your labs, hospital wards, schools, businesses etc.
The built-in speaker offers 85dB sound pressure, with echo cancellation and noise reduction for improved audio clarity in indoor environments. Thanks to its open platform design, the device can be used alongside systems such as access control, and support for SIP and VoIP allows integration with IP phone networks. A downloadable mobile app is also included which allows operators to communicate and grant access from a mobile device.
Platform Integration
Available integration options for this intercom:
- Axis Camera Station Software
- Milestone XProtect VMS
- ONVIF third party applications
Example Use Cases
- Door/zone access - communicate with personnel and operators to authorise access for employees between zones, such as in laboratories
- Healthcare & sterile environments - flat surface without holes minimises bacteria build up and can withstand daily wipe-downs with strong cleaning chemicals.
- Buzz-in access for hospital wards, research labs, secure areas, military sites, and more
- Make SIP-based calls to VoiP phones and devices with a single button press
Accessories included
- Intercom
- Installation guide
- RESISTORX® L-key
- Terminal block connector
- Owner authentication key
Key technical features of the Axis I7020 intercom
Intercom |
|
| Environment: | indoor |
| Type: | network intercom |
| Power: | Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
Typical 3 W, max 25.5 W Power out: 4.8 W Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 3 W, max 12.7 W Power out: disabled with PoE Class 3 Relay rating: 30 V, 0.7 A |
Audio |
|
| Audio features: | Echo cancellation, noise reduction, wind reduction, beamforming |
| Audio streaming: | Two-way (full duplex |
| Audio input: | 2x built-in microphones (can be disabled), line input |
| Audio output: | Built-in speaker – max 85 dBSPL (at 1 m / 39 in)
Line output |
| Audio encoding: | LPCM 16 kHz, AAC 8/16 kHz, G.711 A-law, G.711 µ-law, G.722,
G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bitrate |
Analytics |
|
| Applications: | Included
Active tampering alarm, audio detection Support for AXIS Camera Application Platform enabling installation of third-party applications, |
System integration |
|
| VoIP: | Support for Session Initiation Protocol (SIP) for integration with
Voice over IP (VoIP) systems, peer to peer or integrated with
SIP/PBX.
Tested with various SIP software such as Cisco and Grandstream Tested with various PBX software such as Cisco, Avaya and Asterisk AXIS Parallel Call Forking, AXIS Sequential Call Forking Supported SIP features: secondary SIP server, IPv6, SRTP, SIPS, SIP TLS, DTMF (RFC2976 and RFC2833), NAT (ICE, STUN, TURN), contact list, parallel call forking, sequential call forking Supported codecs: PCMU, PCMA, Opus, L16/16000, L16/8000, speex/8000, speex/16000, G.726-32, G.722 |
| Application programming interface: | Open API for software integration, including VAPIX®, metadata and AXIS Camera Application Platform (ACAP) |
| Video management systems: | Compatible with AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
| Edge-to-edge: | Camera pairing |
General |
|

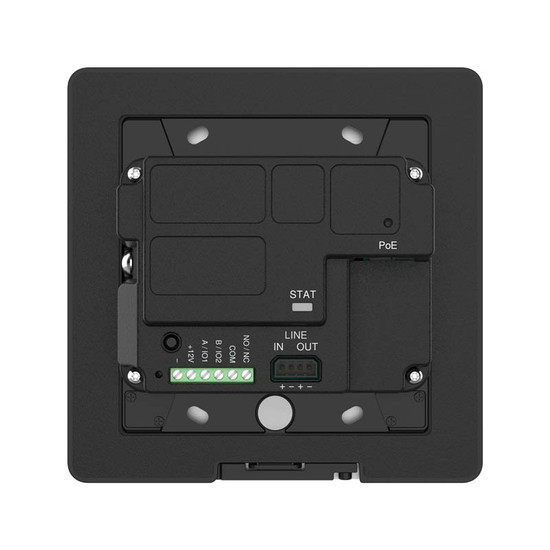

| Connectors: | Network: Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
I/O: Terminal block for two configurable supervised inputs / digital outputs (12 V DC output, max load 50 mA)b Audio: 4-pin terminal block for audio input and output Serial communication: RS485, half duplex/2-wire |
| Storage: | Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
| Dimensions: | 123.9mm x 123.9mm x 43.7mm |
| Weight: | 800 g (1.8 lb) |
| Casing: | IP65- and NEMA 4X-rated
Stainless steel and zinc casing Colour: grey NCS S 1002-B |
| Operating temperatures: | Temperature: 0 °C to 45 °C (32 °F to 113 °F)
Humidity: 10–85% RH (condensing) |
| Warranty: | 5-year |
| Protocols supported: | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
Security |
|
| Edge security: | Software: Signed OS, brute force delay protection, digest
authentication and OAuth 2.0 RFC6749 OpenID Authorization
Code Flow for centralized ADFS account management, password
protection
Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit |
| Network security: | IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
