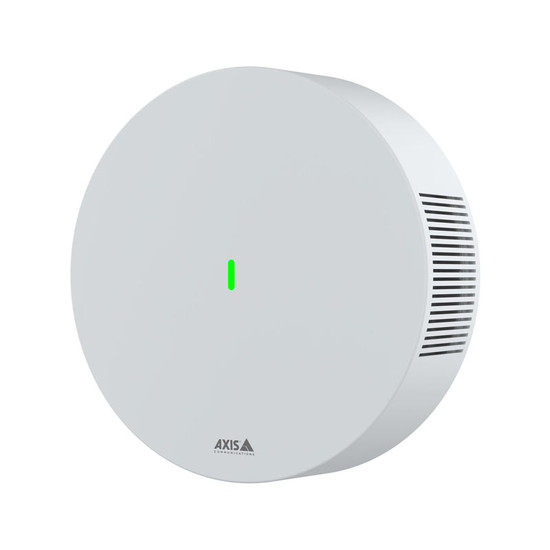

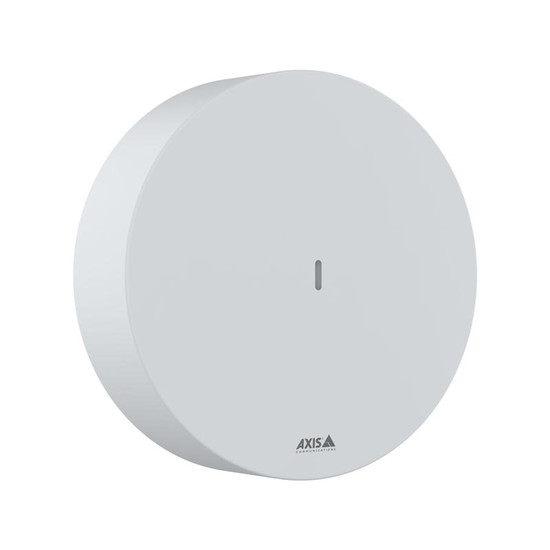

Overview of the AXIS D6210 indoor air quality sensor
- Detect smoking and vaping indoors to trigger events and receive alerts
- Monitors indoor air quality as well as temperature, humidity, CO² and PM
- Document air quality readings to ensure regulation compliancy
- Portcast technology enables simple connection to external AXIS devices
- Requires a compatible AXIS host device for operation
Monitor indoor air quality to help maintain healthy conditions with ease using this versatile smart sensor. Designed to work with selected AXIS IP devices, it reliably detects vaping, smoking, and a range of airborne pollutants including particulate matter (PM) and carbon dioxide (CO₂). You can configure it to trigger events when predefined thresholds are exceeded, ideal for automated responses when linked with other connected devices. Document periodic air quality readings to enable regulation compliance for indoor air quality standards. Thanks to AXIS' Portcast technology, it connects seamlessly to AXIS devices without requiring extra IP addresses, switch ports, or power, making it simple to add to existing systems.
Please note: The AXIS D6210 uses Portcast technology and therefore needs another device to function. It is not a standalone device. It is designed to be installed between another AXIS device, such as a camera or strobe siren, and the power source. The device features PoE in and PoE out ports for simple installation.
Device Management
See below for available management options for this device:
- AXIS Camera Station Software
- AXIS Camera Station NVRs
- Milestone XProtect video management software
- Milestone Arcules VSaaS
- Morphean Cloud CCTV
Example Use Cases
This versatile device can be used to monitor air quality and deliver alerts in a variety of indoor applications, including:
- Public transport hubs - airports and train stations
- Schools and universities
- Healthcare environments
- Server rooms and data centres
- Gyms and fitness centres
- Offices and meeting rooms
- Hospitality sector
Accessories Included
- AXIS D6210 Air Quality Sensor
- Installation guide
Key technical features of the AXIS D6210 indoor air quality sensor
Sensors |
|
| Temperature: | Range: -10 °C to 45 °C (14 °F to 113 °F)
Accuracy: ± 0.7 °C |
| Humidity: | Range: 0 to 100 %RH
Accuracy: ± 6 %RH |
| Carbon dioxide (CO2): | Range: 0 to 40000 ppm
Accuracy: 400 to 1000 ppm : ±(50 + 2.5 % m.v.1 ) ppm, 1001 to 2000 ppm : ±(50 + 3 % m.v.1) ppm, 2001 to 5000 ppm : ±(40 + 5 % m.v.1) ppm |
| Particle matter (PM1.0): | Range: 0 to 1000 µg/m³
Accuracy: 0 to 100 µg/m³ : ± 5 % m.v. Accuracy: 101 to 1000 µg/m³ : ± 10 % m.v. |
| Particle matter (PM2.5): | Range: 0 to 1000 µg/m³
Accuracy: 0 to 100 µg/m³ : ± 5 % m.v. Accuracy: 101 to 1000 µg/m³ : ± 10 % m.v. |
| Particle matter (PM4.0): | Range: 0 to 1000 µg/m³
Accuracy : ± 25 % m.v. |
| Particle matter (PM10.0): | Range: 0 to 1000 µg/m³
Accuracy : ± 25 % m.v. |
| Volatile organic compounds (VOC) index: | Range: 0 to 500
Accuracy: ± 5 % m.v. |
| Air quality index (AQI): | Range: 0 to 500
Accuracy: ± 10 % m.v. |
| Nitric oxide and nitrogen dioxide (NOx) index: | Range: 0 to 500
Accuracy: ± 10 % m.v.1 |
| Sampling frequency: | 1 sample/second |
| Storage frequency: | 1 sample/30 seconds, up to 90 days |
System integration - with supported camera: |
|
| Video management software: | With supported camera: AXIS Companion, AXIS Camera Station, Milestone XProtect, Morphean Cloud CCTV |
| Application programming interface: | Open API for software integration, including VAPIX®
and AXIS Camera Application Platform
One-Click Connection |
| Analytics: | Supported
Support for AXIS Camera Application Platform enabling installation of third-party application |
| Event triggers: | Air quality monitor |
| Event actions: | Flash I/O interface status LED
Flash I/O interface status LED while the rule is active |
General |
|
| Casing: | Polycarbonate casing, encapsulated electronics
Colour: White NCS S 1002-B |
| Mounting: | Wall
Ceiling Connected anywhere between switch and host device, up to 100 m (330 ft). |
| Display and indicators: | Multi color status LED (red, amber, green, and blue) |

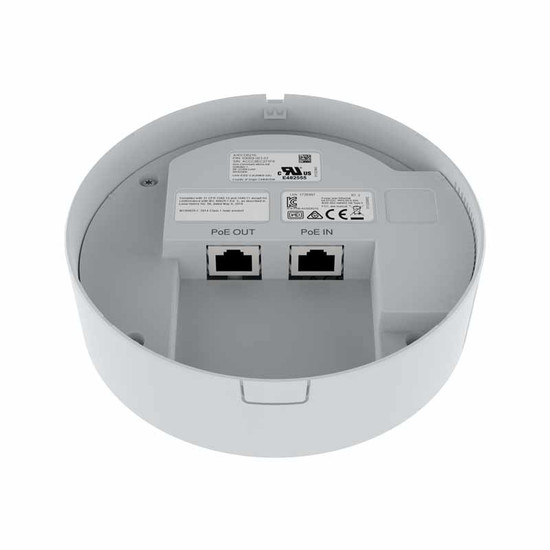

| Connectors: | PoE in: RJ45 10BASE-T/100BASE-TX
PoE out: RJ45 10BASE-T/100BASE-TX |
| Power: | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1
Class 2, 3 or IEEE 802.3at Type 2 Class 4.5 AXIS D6210 feeds power to the camera. Typical power consumption: 2 W Max power consumption: 2.2 W |
| Dimensions: | Please refer to datasheet for overall dimensions |
| Weight: | 225g (0.5 lbs) |
| Operating conditions: | Recommended temperature: 5 °C to 35 °C (41°F to 95 °F)6
Recommended humidity: 20 to 80% RH (noncondensing) 6 Operating temperature: -10 °C to 45 °C (14 °F to 113 °F) Operating humidity: 0 to 90% RH (non-condensing) |
| Box Content: | AXIS D6210 Air Quality Sensor, installation guide |
| Warranty: | 5-year |
