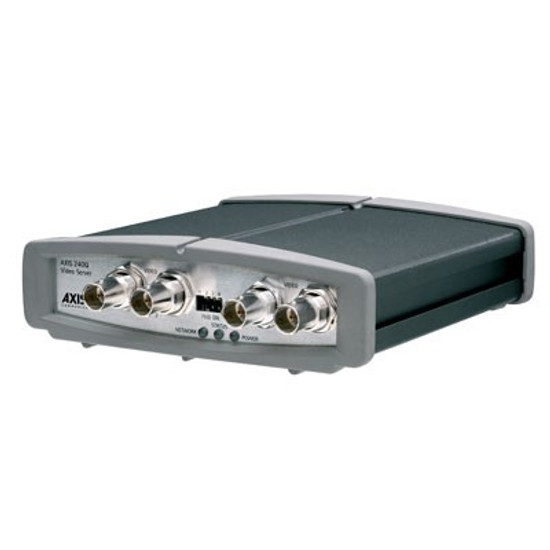

Axis 240Q Video server - 4 port

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alterative models please see Network Video Encoders

The Axis 240Q is a 4-port video server that will provide a cost effective solution allowing your current analogue video streams to easily migrate to an IP-based network solution, with fully featured, digital surveillance benefits.

The Axis 240Q Video Server will digitize up to 4 analogue video streams for transmission over an IP network at a frame rate up to 6fps (5fps PAL) per channel allowing the viewing of images across a local network (LAN) or remote viewing over the Internet.

This video server also provides unique functionality to your analogue video streams by offering built-in motion video detection and powerful event management functions, driven by triggered or scheduled events which report back to the user using a number of protocols such as TCP, HTTP, FTP or SMTP (email).

The Axis 240Q Video Server provides a maximum resolution of 768x576 with a de-interlace filter improving image quality at the highest resolution.

Find out more about video servers from our blog article:

Vision:On - What is a Video Server?

Axis 240Q - Key benefits:

  • Converts up to 4 existing analogue CCTV cameras into IP network cameras, giving you direct access to live images over a Local Area Network (LAN) or the Internet
  • Increases the functionality of your existing CCTV cameras

Axis 240Q - Key features:

  • Built-in video motion detection
  • 3 MB pre/post alarm memory per channel
  • Advanced event handling with multiple alarm notifications using SMTP (e-mail), TCP and HTTP, and video/image uploading via e-mail, FTP and HTTP
  • Support for Pan, Tilt and Zoom (PTZ) devices
  • Resolutions 4CIF, 2CIFExp, 2CIF, CIF, QCIF up to a maximum resolution of 768x576 with up to 11 compression levels (MJPEG)
  • De-Interlace filter for improved image quality at maximum resolution
  • Image customization with text, time/date and image overlay
  • 8MB Flash memory provides ability to upload embedded applications
  • Colour and black and white modes available

Axis 240Q - Typical applications:

  • Convert up to 4 existing analogue cameras into network IP cameras to enable you to monitor your office, shop, manufacturing line or car park from a local network or remotely across the internet
  • Use this item as a webcam – Streamdays offers an off-the-shelf solution for you

Axis 240Q - Key technical indicators:

  • Motion JPEG (MJPEG) compression
  • Resolution: up to 768x576 pixels (PAL) and 704x480 pixels (NTSC)
  • Frame rate: up to 5 frames per second (PAL) up to 6 frames per second (NTSC)
  • Security comprises of multiple user access levels with unique password protection, HTTPS support and IP address filtering
  • Number of simultaneous users: up to 20

Axis 240Q - Connections:

  • Network: 10Base-T/100Base-TX Ethernet (RJ-45)
  • Video: 4x analogue composite video inputs (BNC) (PAL/NTSC auto sensing)
  • Power: power supply included 9 VDC
  • Serial communication: RS-232 (DB-9) and RS-485 (terminal block)
  • I/O: 4 alarm inputs + 4 outputs (terminal block)
  • Dimensions in mm: 42(H) x 140(W) x 155(D)

Axis 240Q - Accessories included:

  • Power supply
  • Mounting brackets
  • Connector kit
  • Installation guide
  • User manual

Additional items you may want to order with this camera:

  • Pre-configuration service. We will configure your video server for you. With all the set up hassle taking care of, your equipment will reach you as a true Plug and Play unit
