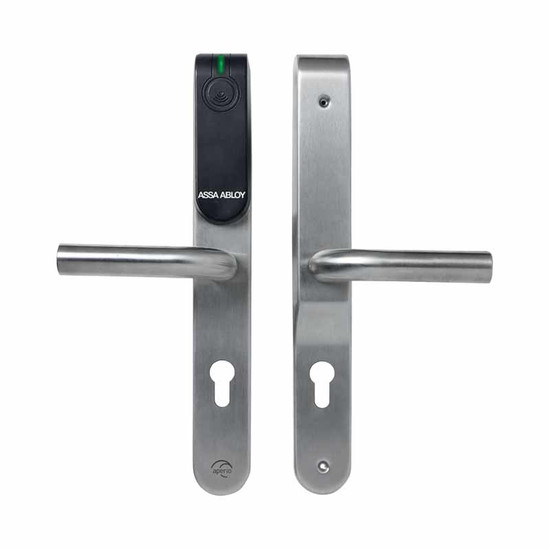

Overview of the ASSA ABLOY Aperio E100 wireless door handle, 40mm - 50mm
- Wireless escutcheon handle that upgrades doors without hard-wiring, supporting improved access control
- Compatible with a wide range of RFID fobs and cards including iCLASS, MIFARE, and LEGIC as well as mobile credentials via NFC and Bluetooth
- Designed to fit European (DIN) mortice locks and suitable for wooden, steel, tubular-frame and glass doors
- Powered by a lithium CR123A battery delivering up to 50 months of use (30 openings per day), with emergency backup through micro-USB
- Includes LED and buzzer status indicators and has capacity for up to 1,000 users
The ASSA ABLOY Aperio E100 series escutcheon offers a simple and cost-effective way to upgrade compatible mechanical mortice door locks for secure electronic access control. It features credential access on the external side with key override capability, while the internal lever ensures safe egress in case of emergency. The unit includes a battery-powered proximity reader that wirelessly connects to the communication hub, which is then linked to the access control system. This setup delivers full access control functionality at a fraction of the cost of traditional hard-wired doors. The E100 is built for flexibility, fitting European (DIN) mortice locks on wooden, steel, tubular-frame, and glass doors. Powered by a long-life CR123A lithium battery with micro-USB backup, it delivers reliable performance with minimal maintenance.
Credential Support
With compatibility across leading RFID technologies including iCLASS, MIFARE, and LEGIC, it ensures broad credential support for a range of cards and fobs. It also supports mobile credentials through NFC, Bluetooth, Apple Wallet, and Google Wallet, providing a secure and convenient way to manage entry.
Aperio System Architecture
The Aperio RS485 Communication Hub acts as the bridge between Aperio wireless handles and the access control system. Each hub can manage multiple doors, connecting the battery-powered escutcheons via a secure wireless link and transferring data in real time to the system over a standard IP network. This setup enables full access control functionality without the need for hard wiring at every door. The Aperio Programming Application Software is used for installation and configuration by plugging the USB radio dongle into a PC to provide communication with the handles via the hub, using an encrypted installation database.
Key technical features of the ASSA ABLOY Aperio E100 wireless door handle
| Authentication: | CARD/Mobile, PIN, CARD/Mobile & PIN combined |
| Code: | PIN code managed by the access control system |
| RFID technologies: | iCLASS, iCLASS SE, iCLASS Seos, MIFARE Classic, Classic SE, Ultralight, Plus, DESFire 0.6, DESFire EV1, DESFire EV2 (Legacy mode), DESFire EV3 (Legacy mode), DESFire SE, LEGIC® Advant, LEGIC® Prime, PicoPass, ISO 14443A UID, ISO 14443B UID, ISO 15693 UID. Exception: LEGIC-only reader available |
| RFID reading: | UID / Sector / Block / Application / File / LEGIC® Segment Data (depending on technology) |
| RFID reading range: | Up to 4 cm |
| Mobile technology: | Seos, STid, Gallagher-enabled credentials via BLE & NFC; Seos & DESFire credentials in Apple Wallet and Google Wallet |
| Approvals: | CE, UKCA, EN179, Fire EN1634 |
| Dimensions (H × W × D): | 312 × 41 × 10/20 mm |
| Handle: | L-Shape, U-Shape |
| Surface: | Stainless steel brushed |
| Distance: | Blind, 70, 72, 74, 78, 85, 88, 90, 92, 94 |
| Spindle: | 8 mm, 9 mm, 10 mm |
| Door leaf thickness: | 40–100 mm (in 10 mm increments) |
| Backset: | > 40 mm |
| Mounting plate: | n/a |
| Battery: | 1 × Lithium CR123A |
| Battery life: | 30 openings per day for 50 months (based on reader type) |
| Emergency power: | Via micro-USB socket |
| Radio standard: | IEEE 802.15.4 (2.4 GHz) |
| Encryption: | AES 128-bit (radio communication) |
| Device-to-hub distance: | Up to 25 m (depending on building environment) |
| Class of protection: | IP52 and IP54 |
| Operating temperature: | 0°C to 60°C |
| Relative humidity: | < 85% (condensation-free) |
| Status: | LED (red/green/orange) and buzzer |
| Door sensor information: | Internal handle use detection (request to exit, escape & return) |
| Communication interfaces: | Radio (USB dongle) or micro-USB cable (accessory) |
| Operation modes: | Aperio Online; Aperio Offline; OSS-standard Offline |
| Included accessories: | 1 escutcheon with battery (Lithium CR123A)
Screws Drilling template Tool for inserting cables (for thicker doors) Installation instructions |
