Overview of the ASSA ABLOY Aperio AH30 G5 RS485 communication hub
- Connects up to 16 Aperio wireless door handles to an access control system via RS485
- Uses 2.4 GHz wireless with 128-bit AES encryption for secure communication
- Reliable wireless range of up to 25 metres
- Features tamper switch and LED status indicator for monitoring
- Supports firmware upgrades and event logging via UHF or IP network

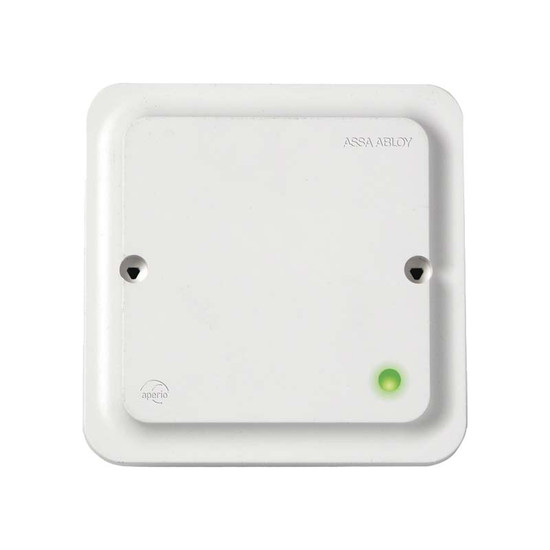

The ASSA ABLOY Aperio AH30 Gen5 Communication Hub serves as a vital link between Aperio wireless handles and electronic access control systems, enabling seamless integration and real-time communication. Designed for indoor use, it connects up to 16 Aperio devices to an Electronic Access Control (EAC) system via an RS485 bus, offering a wireless range of up to 25 metres with the integrated antenna. This hub ensures secure communication with 128-bit AES encryption over a 2.4 GHz wireless frequency. The AH30 is equipped with a built-in tamper switch to detect unauthorized removal and an LED indicator for status visualization. Installation is straightforward, as it mounts on a wall bracket included in the package, fitting into standard flush-mounted boxes.
Aperio System Architecture
The Aperio RS485 Communication Hub acts as the bridge between Aperio wireless handles and the access control system. Each hub can manage multiple doors, connecting the battery-powered escutcheons via a secure wireless link and transferring data in real time to the system over a standard IP network. This setup enables full access control functionality without the need for hard wiring at every door. The Aperio Programming Application Software is used for installation and configuration by plugging the USB radio dongle into a PC to provide communication with the handles via the hub, using an encrypted installation database.
Key technical features of the ASSA ABLOY Aperio AH30 Gen5 RS485 communication hub
| Approvals: | CE, ETL, FCC, IC, C-Tick |
| Dimensions: | 82 x 82 x 37 mm (H x W x D) |
| Required power supply: | 8 - 24V,DC 0.8W |
| Radio standard: | IEEE 802.15.4 (2.4 GHz) - 16 channels (11-26) |
| Encryption (radio communication): | AES 128 bits |
| Wireless operating range: | Typical range of 25m depending on building enviroments |
| Receiver sensitivity: | - 100dBm |
| Internal atenna: | 2 cross polarized dipoles |
| External antenna: | One reverse polarity SMA external antenna connector. AH20/30 is certified to be used with ASSA ABLOY external antenna AH-ANTENNA-1. If other external antenna is used it must be of same type (dipole) and not have larger antenna gain than 3.6 dBi. |
| Class of protection: | IP 20 |
| Operating temperature range: | 5°C to 35°C |
| Relative humidity: | < 95% (non-condensing) |
| LED status: | Red/green/orange |
| Included accessories: | 1 hub with installation instructions
Wall mount bracket Fixing screws to mount hub to wall housing |
