Arecont Vision | D4SAV1115DN3
Arecont Vision D4S-AV1115DN indoor 1.3 megapixel IP camera, surface-mount, day/night mode, H.264, PoE
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Overview of Arecont Vision D4S-AV1115DN-3312
This product is discontinued, an alternative model is the Mobotix D26

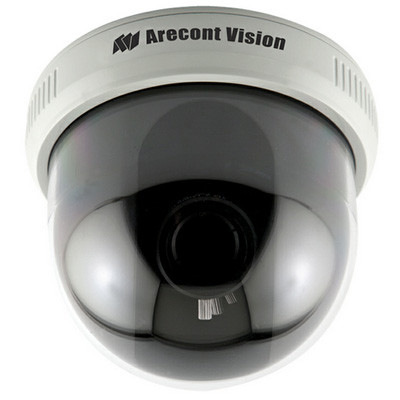

The Arecont Vision D4S-AV1115DN is an indoor dome camera with a surface-mount design for easy installation in locations such as casinos, shopping malls and areas where high value transactions take place. A 1.3 megapixel sensor captures IP video at up to 42fps.
Casino Mode keeps the frame rate above 30fps at all times, ensuring that no quick movements, such as sleight of hand, are missed, while its built-in Moonlight Mode adjusts shutter speed in low light to ensure clear, crisp video footage. The camera also has an infrared-cut filter, which when used in conjunction with infrared lighting (sold separately) allows the camera to record even in total darkness.
A 2-axis gimbal allows the camera unit to be mounted easily onto ceilings, ensuring the optimum viewing angle regardless of position. Power over Ethernet compliant, the camera is able to receive power and network connectivity over a single cable.
Please note: this camera does not come with a power supply. Please select one from the above drop-down menu.
Key features & benefits for the Arecont Vision D4S-AV1115DN-3312
- All-in-one, durable acrylic dome design with surface mount for easy installation
- Able to capture clear and crisp imagery in 1.3MP resolution at up to 42fps
- Casino Mode maintains a constant 30 frames per second ensuring nothing is missed through frame-drop
- Moonlight Mode adjusts shutter speed in difficult light conditions for clearer image quality
- Forensic Zoom allows recording to continue when image analysis is taking place, ensuring no loss of footage
- PSIA compliance allows the camera to be integrated with security accessories such as recording devices
Typical applications of the Arecont Vision D4S-AV1115DN-3312
The Arecont Vision D4S-AV1115DN has an easy-to-install surface-mount dome design for monitoring indoor locations such as casinos, department stores, shopping centres, offices, reception areas, restaurants or warehouses.
Included accessories for the Arecont Vision D4S-AV1115DN-3312
- Arecont AV1115DN IP camera (D4S-AV1115DN-3312)
- 3.3-12mm varifocal lens
- Acrylic dome housing
Camera | |
| Environment: | indoor |
| Type: | fixed dome camera |
| Sensor: | 1/2.7" CMOS sensor in 1.3 megapixel resolution |
| Lens: | 3.3mm-12mm megapixel varifocal lens, F1.6, IR corrected |
| Digital zoom/PTZ: | digital zoom |
| Power: | Power over Ethernet 802.3af, 12V-48V DC, 24V AC |
Video | |
| Resolution: | 1280(H) x 1024(V) |
| Compression: | H.264, MJPEG |
| Frame-rate: | up to 42fps @ 1280x1024 |
| Bandwidth control: | bit rate from 100Kbps to 10Mbps |
| Day/night: | switchable infrared-cut filter |
| Minimum illumination: | colour: 0.1 lux; day/night: 0 lux (when used with infrared light source) |
| Imaging: | fixed shutter, programmable shutter speed |
Viewing, detection and recording | |
| Multi-camera viewing: | 8 non-identical streams |
| Privacy masking: | yes |
| Recording triggers: | motion detection (1024 zones) |
Compatible recording platforms | |
| Software: | AV100 (included) |
Connections | |
| Power: | socket for 12-48V DC, 24V AC |
| Network: | 100Base-T Ethernet network interface, Power over Ethernet IEEE 802.3af |
| Alarm I/O: | 1/1 |
Other | |
| Dimensions: | ø118.5mm x 95.4mm(H), bubble only: ø101mm x 51.7mm(H) |
| Weight: | without camera: 0.29kg (0.64lbs); with camera and MPL3312 lens: 0.525kg (1.16lbs) |
| Colour: | silver/black |
| Warranty: | 3 year manufacturer warranty |
| Mounting methods: | surface-mount |
| Operating temperatures: | -5 – 45°C |
| Power consumption: | 4.5W (max) |
| Protocols supported: | TFTP, HTTP, RTSP, RTP/TCP, RTP/UDP |
