Arecont Vision MegaView2 AV5225 outdoor bullet IP camera with 5 megapixel at 14 fps and up to 60m IR night-vision

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

Overview of the Arecont Vision MegaView2 AV5225

This product is discontinued, an alternative model is the Mobotix D26

High-end Arecont Vision MegaView2 AV5225 outdoor IP66-rated, tamper resistant network bullet camera with 5 megapixel resolution (14 fps), P-iris lens, built-in infrared LEDs and true day/night, remote focus & zoom, Arecont’s binning mode for enhanced low light capture, video motion detection, choice of PoE or auxiliary power and dual codec. Available with audio and wide angle lens, 30m night-vision wide angle lens or 60m night-vision telephoto lens.

The AV5225 from Arecont is part of the MegaView2 series of outdoor vandal-resistant bullet network cameras with high resolution capabilities. Delivering 5 megapixel resolution at 14 fps, the AV5225 provides high-performance CCTV with a P-iris lens for optimum depth of field and object focus. With true IR night-vision up to 30m (AV5225PMIR) or 60m (AV5225PMTIR only), images can be captured in complete darkness and high quality 24/7 surveillance is provided. Arecont’s binning mode enhances images captured in low light by increasing light sensitivity of the camera. The IP66 and tamper resistant casing provides durable outdoor use throughout harsh weather and protection against tampering attempts. Remote focus and zoom provide easy installation and maintenance of the AV5225 as the lens does not need to be manually adjusted.

Support for PoE and auxiliary power provides the user with a choice of power supply depending on preference whilst support for H.264 and MJPEG also gives a choice of compression method. Motion detection provides accurate security monitoring whilst the privacy masking feature allows certain areas of the cameras field of view to be blocked. The AV5225 is available as an audio model with wide angle lens; 30m IR night-vision model with wide angle lens or 60m IR night-vision model with telephoto lens (please select the required model from the above drop down menu).

Please note: this camera does not come with a power supply, please select from the above drop down menu if required.

Standard features & benefits

  • High-performance 5 megapixel resolution at 14 fps enables crisp identification
  • P-iris lens automatically optimises depth of field for clear, focussed images
  • True day/night with IR LEDs enables the camera to capture images in complete darkness and provides surveillance round-the-clock
  • Outdoor-ready and tamper-resistant casing protects the camera against damage from rain, dust and impact
  • Binning mode increases light sensitivity to capture clearer low-light images
  • Remote focus and zoom eliminates the need for manual lens adjustment, making maintenance easier
  • ePTZ enables in-detail viewing or large areas
  • Motion detection provides reliable security surveillance
  • Sensitive or private areas of the camera’s view can be blocked with the privacy masking feature
  • Dual codec provides compression flexibility for different system requirements
  • PoE and auxiliary power are both supported depending on preference
  • Junction box included
  • Available with audio, 30m infrared LEDs or 60m infrared LEDs (please select from above drop down menu)

Available AV5225 models

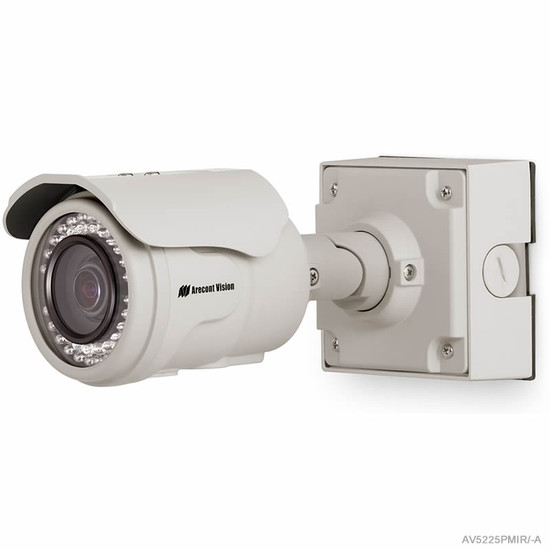

AV5225PMIR - 3.6-9mm wide angle lens with 48 pcs 850nm LEDs / 30 meter IR distance (max) / 50° IR angle

AV5225PMIR-A - 3.6-9mm wide angle lens with 48 pcs 850nm LEDs / 30 meter IR distance (max) / 50° IR angle and audio input/output

AV5225PMTIR - 9-22mm lens telephoto lens with 4 pcs 850nm LEDs / 60 meter IR distance (max) / 33° IR angle

Compatible recording platforms

Typical applications

The Arecont Vision MegaView AV5225 bullet network camera provides high resolution surveillance ideal for applications that require 24/7 monitoring for large outdoor areas such as festivals, sports arenas, prisons and banks.



  • CD with Arecont Vision AV100 software and user manuals (license key required for recording)
  • Junction box adapter
  • Mounting template for junction box adapter
  • Mounting template for MegaView2 camera
  • Security L-key
  • Rubber plug
  • Pack of 4 screws and 4 anchors
  • Pack of 4 machine screws, #8-32, ½” Phillips Pan Head


  • PoE midspan (please select from above drop down menu if required)
Back To Top

Key technical features of the Arecont Vision AV5225

Environment:IP66-rated outdoor, tamper resistant
Type:fixed bullet
Sensor:1/2.5" CMOS 5 megapixel effective
Lens:AV5225PMIR/-A: 3.6–9mm, 1/2.5", F1.3, RZ, RF, P-iris, H-FOV = 96°–36°, AV5225PMTIR: 9–22mm, 1/2.5", F2.0, RZ, RF, P-iris, H-FOV = 38°–16°
Power:PoE 802.3af, Class 2/12–48V DC, 24V AC
Audio:AV5225PMIR-A: two-way audio, G.711 PCM 8 kHz, microphone in/line output
IR illuminator:AV5225PMIR/-A: 48 pcs 850nm LEDs/30 meter IR distance (max)/50° IR angle, AV5225PMTIR: 4 pcs 850nm LEDs/60 meter IR distance (max)/33° IR angle
Resolution:2592 H x 1944 V
Compression:H.264 (MPEG-4, Part 10)/Motion JPEG, 21 levels of quality
Frame-rate:14fps (2592 x 1944), cropped: 21fps (2048 x 1536), 29fps (1920 x 1080) 41fps (1280 x 1024), binning: 34fps (1296 x 972), 46fps (1024 x 768), 64fps (960 x 540)
Bandwidth control:bit rate and bandwidth limitation control, multi-streaming 8 non-identical streams
Day/night:automatically removed infrared cut-filter
Minimum illumination:colour (day mode): 0.3 Lux, colour binning (day mode): 0.15 Lux, B/W (night mode): 0 Lux, IR sensitive
Digital PTZelectronic pan, tilt, zoom (PTZ) and image flip 180°
Imaging:low light noise filter control, backlight compensation and multi-matrix white balance, programmable resolution, brightness, saturation, gamma, sharpness tint, binning mode
Viewing, detection & recording
Privacy masking:yes
Alarm detection:video motion detection (VMD), alarm input/output
Alarm action:start event recording, send alert notification by email, FTP upload
Recording software included:N/A
Power:PoE IEEE802.3af, Class 2/12–48V DC, 24V AC
Network:100Base-T Ethernet network interface, PoE IEEE802.3af
Alarm input/output:general purpose opto-coupled input
Audio:indicated model only, two-way (1 x line input and 1 x line output)
Dimensions:H 119mm x W 119mm x D 282mm
Weight:1.76kg (net)
Casing:die-casting aluminum cylindrical (bullet-style) housing, IP66 weather proof standard, tamper resistant
Warranty:3 years
Mounting methods:junction box mount, 3-axis mechanism (optional accessories for electrical box, pole mount and corner mount)
Operating temperatures:-40°C to +50°C
Power consumption:11.5 W
Dynamic DNS:no
Protocols supported:RTSP, RTP/TCP, RTP/UDP, HTTP, DHCP, TFTP
ONVIF compliant:yes
