| AV3125IR

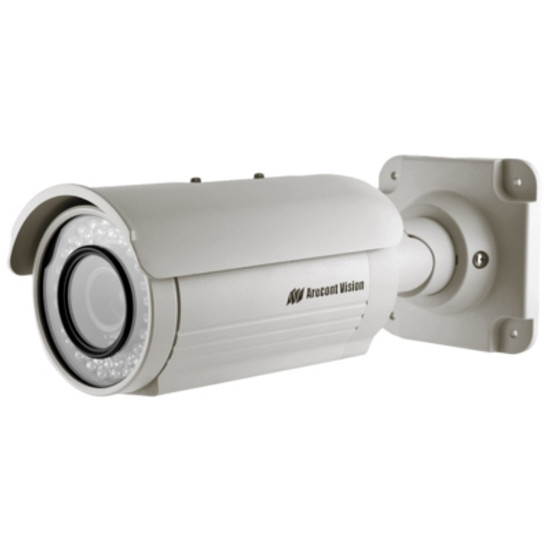

Arecont Vision AV3125IR Outdoor 3 megapixel at 21 fps IP security camera with 25m infrared night-vision, H.264 and PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

Overview of the Arecont Vision AV3125IR

This product is discontinued, an alternative model is the Mobotix S16

Designed to capture high detail video in all light conditions, the Arecont Vision AV3125IR produces 3 megapixel CCTV footage at up to 21fps, ensuring that even the smallest or quickest detail is captured. The camera's infrared-cut filter and integrated infrared lighting also ensure that objects can be identified easily regardless of light conditions.

The camera is PSIA-compliant, ensuring that it can be integrated easily with any other third-party security device which also supports the standard. The camera's weatherproof housing is also IP66-rated so can be mounted outdoors without the need for an additional housing.

Pixel binning is available on the camera, which combines the signal data from multiple pixels to improve light sensitivity. In addition to this, the camera's moonlight mode automatically lengthens exposure times, capturing more light for a clearer image in dark conditions.

Please note: This camera does not come with a power supply. If you require a power supply, please select one from the options above.

Key features & benefits of the Arecont Vision AV3125IR

  • The 3MP resolution video captures 10x more detail than a conventional security camera at frame rates of up to 21fps
  • The integrated IR lighting and infrared-cut filter let the camera see events during the day and in complete darkness
  • Mount the camera outdoors without the need for additional housing
  • Integrate the camera easily with other PSIA-compliant recording and security devices
  • Pixel binning combines image data from multiple pixels to improve light sensitivity
  • Moonlight mode improves low-light sensitivity by automatically lengthening exposure times in low-light

Typical applications of the Arecont Vision AV3125IR

The Arecont Vision AV3125IR is suited to various locations where high-resolution video needs to be captured at high frame rates in exposed locations, such as public transport hubs, ports, sports stadiums, industrial sites, oil rigs and car parks.

Accessories for the Arecont Vision AV3125IR


  • Arecont AV3125IR IP camera
  • Software CD


  • Indoor/Outdoor Electrical Box Adapter (MV-EBA)
  • Indoor/Outdoor Pole Mount Adapter (MD-PMA)
  • Corner Mount Adapter (MD-CRMA)
Back To Top

Key technical features for the Arecont Vision AV3125IR

Environment: Outdoors (IP66-rated)
Type: Fixed bullet
Sensor: 1/2.5" CMOS sensor with 3MP resolution
Lens: 4.5-10mm IR-corrected varifocal lens with 26-56° horizontal field of view.
Power: IEEE 802.3af Power over Ethernet (camera only), 12V DC and 24V AC
Resolution: 2048x1536 or 1024x768
Compression: MJPEG and H.264
Frame-rate: 21fps @ 2048x1536, 31fps @ 1600x1200, 29fps @ 1920x1080, 41fps @ 1280x1024
Bandwidth control: Unthrottled: up to 55Mbps. Bit rate control from 100Kbps to 10Mbps
Day/night: True day/night with infrared-cut filter
Minimum illumination: Colour: 0.3 Lux (Unbinned), 0.15 Lux (binned). Monochrome: 0 Lux (with IR LEDs on, 25m range maximum)
Digital zoom/PTZ: Forensic post-process zooming
Analogue video out: No
Viewing, detection & recording
Auto-flip: Yes
Privacy masking: Yes
Simultaneous users: Up to 8 non-identical streams
Alarm detection: Motion detection
Alarm notifications: FTP, Email
Recording triggers: Motion detection
On-camera recording: No
Compatible recording platforms (not included)
Software:Milestone XProtect (Using PSIA driver)
Network Video Recorders: Any PSIA-compliant recording device
Power: 12-48V DC input required for IR Illuminators
Network: 10/100Mbps RJ-45 Ethernet connection with IEEE802.3af Power over Ethernet
Dimensions: 102mm x 111mm x 293mm (H x W x D)
Weight: 1.69kg
Colour: Off-white
Warranty: 3 year manufacturer's warranty
Mounting methods: Wall / ceiling-mount
Operating temperatures:-40 to 50°C (-40 to 122°F)
Power consumption: 7.9W
Dynamic DNS: No
Protocols supported: TFTP, HTTP, RTSP, RTP/TCP and RTP/UDP
System integration: PSIA compliant
ONVIF compliant: No
