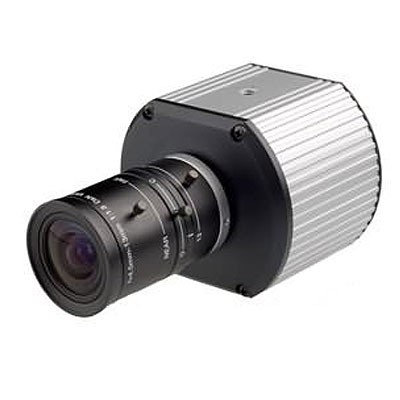

Arecont AV1305DN Indoor static view IP camera with 1.3 megapixels sensor, H.264 video compression, true day/night and PoE

This product is discontinued, an alternative model is the Mobotix S16

The Arecont Vision AV1305DN is an indoor static view IP camera with fast image processing and a 1.3MP sensor capable of up to 32fps. With an on-board H.264 encoder the Arecont AV3105DN can deliver detailed video footage while reducing bandwidth and storage requirements.

With true day/night capability the Arecont Vision AV1305DN can capture detailed images in all lighting conditions. The camera has the ability to automatically switch to night vision and capture infrared light for a detailed black and white image (additional IR light source required).

Easy to install with Power over Ethernet compatibility, the Arecont AV1305DN only requires one cable for both power and video data. Like all IP cameras available from Network Webcams, the Arecont Vision AV1305DN IP security camera has a built-in web server and can be viewed over a Local Area Network (LAN), Wide Area Network (WAN) or via the Internet as a streaming IP webcam.

Arecont Vision AV1305DN - Key benefits:

• High speed image processing delivers TV-like video motion showing smooth movement and without missing crucial actions or events between frames
• High-definition megapixel images allow clear depiction of people or objects for identification
• Advanced H.264 low bit-rate video compression saves on bandwidth and storage space while delivering high quality video
• View detailed images in all lighting conditions with the ability to automatically switch to capture infrared light for a detailed black and white night vision image (additional infrared light source required)

Arecont Vision AV1305DN - Key features:

• Fast megapixel image rates provide up to 30fps at full 1.3MP resolution
• High definition 1280x1024 resolution has 4x the picture detail of analogue CCTV and VGA IP cameras
• Highly efficient H.264 advanced video compression
• True day/night with a mechanical infrared cut-filter
• Power over Ethernet (PoE) compatible
• Up to 8 configurable video streams with independent settings for bit rate, frame rate, resolution and picture quality
• Bit rate control limits the camera to run within system capabilities
• Real Time Streaming Protocol (RTSP) allow streaming to: Windows Media Player, Apple QuickTime, VLC player and other desktop media players
• Digital PTZ allows zooming and moving within a high resolution image without the loss of picture detail and while still recording the full field of view
• Full or 1/4 resolution options for live viewing or archiving
• On-camera motion detection with 64 configurable zones
• 50/60Hz control to match frequency of indoor lighting to avoid image flicker
• Controllable shutter speeds help to reduce motion blur
• Picture in picture can show the full camera view along with a digital PTZ window

Arecont Vision AV1305DN - Typical applications:

• The Arecont Vision AV1355DN is suitable for application where high speed image rates are required along with a highly detailed image such as casinos, airports, train stations and prisons as well as schools, university campuses and retail environments

Arecont Vision AV1305DN - Key technical indicators:

• Sensor: 1.3 megapixel, 1/2" CMOS image sensor
• Minimum illumination: colour 0.1 Lux @ F1.4; day/night 0 Lux, IR sensitive
• Lens: 4-10mm megapixel varifocal lens
• Full field of view resolutions: 1.3 megapixel (1280x1024), 1/4 resolution (640x512)
• Cropped field of view resolutions: HDTV-720p (1280x720), XGA (1024x768), SVGA (800x600), PAL (704x570), NTSC (704x480), VGA (640x480), CIF (352x288), SIF (320x240)
• Data rate: up to 55Mbps
• Bit rate control: from 100Kbps to 10Mbps available for full view, multi view, and archive
• Video frame rate (up to): 32fps @ 1280x1024
• Video compression: H.264 (MPEG4, Part 10), Motion JPEG( 21 levels of quality)
• Image transmission protocols: TFTP, HTTP, RTSP
• Power: Power over Ethernet (PoE IEEE 802.3af)
• Power consumption: 4 Watts maximum
• Operating temperature: 0°C (32 °F) to +50°C (122 °F)
• Dimensions: 76mm (W) x 63.5mm (H) x 57mm (D) (w/o lens)
• Weight: 243g (w/o lens)

Arecont Vision AV1305DN - Connections:

• Network: 100Base-T Ethernet network interface (PoE IEEE 802.3af)
• Power: DC Input 15V-48V DC
• I/O: opto-coupled alarm or trigger input, opto-coupled alarm and flash sync output

Arecont Vision AV1305DN - Accessories included:

• Arecont Vision AV1305DN IP camera (AV1305DN)
• Varifocal megapixel lens 4-10mm 1/2" (LENS4-10)
• Internal wall bracket with swivel head (VB1B)
• Additional items you may have chosen (from selections above)
• Installation CD with Arecont Vision surveillance software
• CS to C mount adaptor
• Quick start card

Arecont Vision AV1305DN - Additional items you may want to order with this camera:

• Arecont Vision indoor 4" vandal dome
• Arecont Vision Indoor 54" Recessed Dome
• Licence for Arecont Vision video management and recording software
