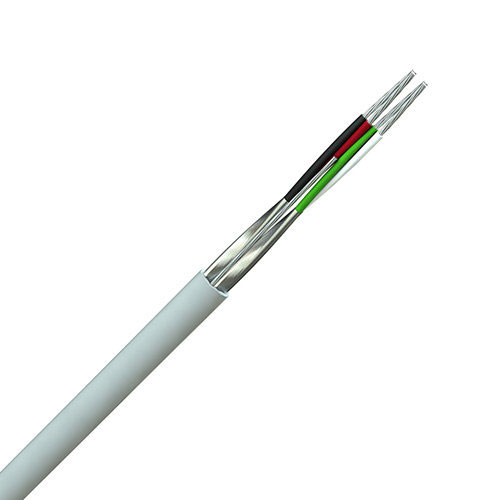

Overview of the Belden 8723 equivalent 2 pair 22AWG LSF white cable
- 8723 Belden equivalent white cable
- Suitable for security, data bus and audio applications
- Low smoke and fume sheath
- Rated voltage 300v
- 100m reel
8723 Belden Equivalent cable consists of a 22AWG two pair with 7 strands of 0.25mm tinned copper wire. Sheathed overall in LSF and with a rated voltage of 300V. Suitable for connecting ASSA ABLOY Aperio AH30 Gen5 RS485 wireless communication hubs to a network door controller within access control systems.
Back To TopKey technical features of the 8723 Belden equivalent 2 pair 22AWG LSF white cable
Physical |
|
| Inner Conductor | Stranded Tinned Copper |
| Conductor Diameter | 0.25×7 (22AWG) |
| Insulation | SPE, Colour: White, Green, Red, Black |
| Shield | Blue Aluminium Foil |
| Drain | Stranded Tinned Copper, 0.20×7 |
| Outer Jacket | SPE Black |
| NOM OD | 5.90mm |
Electrical |
|
| Max. Conductor DC Resistance at 20°C (Ω/100m) | 6.53 |
| Min. Insulation DC Resistance at 20°C (MΩ·M) | 200 |
| Rated Temperature (°C) | -20 ~ +80 |
| Rated Voltage (V) | 300V |
