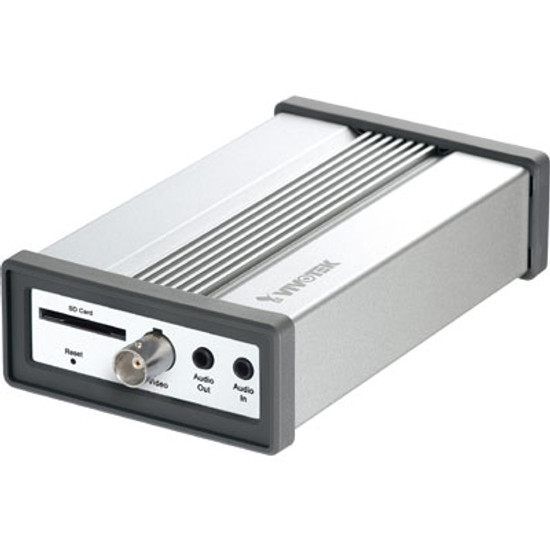

Vivotek VS8102 video encoder with tamper detection, PoE, on-server recording and 2-way audio - 1 port

This product is discontinued, for alternatives please see Network Video Encoders

The Vivotek VS8102 is a compact video encoder which adds IP functionality, such as remote access or motion detection, to existing analogue surveillance equipment. The encoder features a female BNC video port allowing a single security camera or video source to be seen across a network. 2-Way audio is also built in, allowing viewers to communicate interactively with the site or warn intruders.

Video can be stored directly onto the video encoder using a standard SD/SDHC memory card, removing the need for external recording equipment and improving reliability. Recording and alerts can be triggered by viewers, motion detection or tampering detection, which can sense if the connected camera is moved, defocused or obscured and alert users to minimise downtime.

Power over Ethernet (PoE) support also provides the option of powering the encoder through the Ethernet connection, reducing cabling requirements, but is also supplied with a standard wall-socket power adapter. The server is also ONVIF compatible, meaning that it can be easily integrated with other third-party ONVIF-compliant security equipment.

Vivotek VS8102 - Key Benefits:

• Convert an analogue video surveillance camera to use the benefits of IP, protecting security investment
• Store video and images directly onto the encoder, improving reliability and removing the need for external recording equipment
• Hear audio from the server's location or communicate with people in view with 2-way audio
• Alert users immediately if the camera is covered, moved or tampered with, minimising downtime
• Reduce cabling requirements with Power over Ethernet support

Vivotek VS8102 - Key Features:

• BNC connection for a single analogue video source
• SD memory card slot for storing video and still images directly onto the server
• Two-way audio support is available for audible communication with the server's location
• Tamper detection software alerts users if the camera image is obscured
• Power over Ethernet provides a quick and flexible way to power the encoder
• Store short video clips directly to a PC from the web interface (Internet Explorer only)
• RS485 port allows viewers to operate pan, tilt and zoom systems remotely
• ONVIF compatible, making the encoder easier to integrate with third-party security hardware
• HTTPS secures video footage for transfer across unsecured networks
• Single input and output can let external hardware trigger events in the encoder or be triggered by viewers
• Transfer footage to remote locations on event via FTP and email
• Included 32-channel recording software can store video to a local PC at no additional cost

Vivotek VS8102 - Typical Applications:

The VS8102 is ideal for small CCTV systems where a single analogue camera or video source needs to be converted to be viewed on an IP network, in locations such as offices, petrol stations and building sites.

Vivotek VS8102 - Key Technical Indicators:

• Compression format: MPEG-4, H.264 and MJPEG
• Stream: Multiple simultaneous streams
• Inputs: Single female BNC connector
• Supported resolutions: 720x576, 720x480, 704x576, 704x480, 352x288, 352x240, 176x144 and 176x120
• Frame rate: 30fps in all resolutions and compression formats
• Audio: 2-way
• Audio compression: GSM-AMR speech compression (4.75-12.2 kbps), MPEG-4 AAC audio encoding (16-128 kbps) and G.711 audio encoding (64 kbps, µ-Law or A-Law)
• Protocols supported: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X
• On-server storage: SD memory card
• Number of simultaneous users: 10
• Operating temperatures: 0-55°C (32-131°F)
• Power: 12V DC (power adaptor included), 24V AC or IEEE802.3af Power over Ethernet
• Power consumption: 5W Max
• Weight: 242g
• Casing: Metal. Suitable for internal use only
• Dimensions (HxWxD): 34mm x 78mm x 130mm

Vivotek VS8102 - Connections:

• 10/100Mbps RJ-45 Ethernet connection with IEEE802.3af Power over Ethernet support
• BNC analogue input
• 3.5mm Audio input
• 3.5mm Audio output
• 12V DC Power input (240V adaptor included)
• SD Memory card slot
• I/O terminal block

Vivotek VS8102 - Accessories Included:

• 240V Power adaptor
• Software setup CD
• Warranty card
• Installation guide
