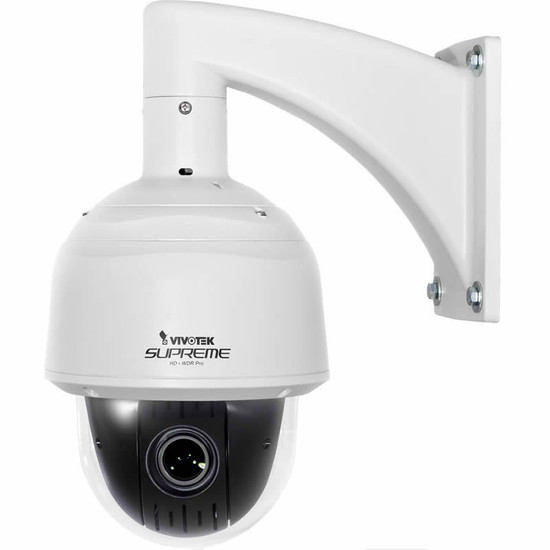

Vivotek SD8363E outdoor speed dome IP camera with HD 1080p (30 fps) and HD 720p (60 fps), 360° panning and 20x zoom

This product is discontinued, for alternatives please see Wisenet IP Cameras

Overview of the Vivotek SD8363E

High performance, weather proof speed dome network camera, Vivotek SD8363E with true day/night, triple codec, wide dynamic range, audio detection, auto tracking and PoE+

Part of Vivotek’s SUMPREME product line, the SD8363E outdoor speed dome IP camera delivers HD 1080p video at 30 frames per second and effectively covers large areas with 360° panning and 220° tilt, 20x optical zoom enables detailed close-up viewing of specific areas within a scene and video can also be captured in HD 720p at 60 fps for fast-paced applications such as traffic and city surveillance. True day/night capability means the camera can produce colour images during daylight, with a removable infrared cut-filter switching the camera to capture black and white images during low light and at night time for 24/7 surveillance. The outdoor-ready IP66 rated casing protects the camera against bad weather and enables full operation in temperatures ranging from -40°C to 55°C.

WDR Pro wide dynamic range technology enables the SD8363E to capture high quality video footage when bright highlights and dark shadows exist simultaneously within a scene and often saturate detail. This feature enables the Vivotek SD8363E to cope well with changing lighting environments. Auto tracking detects movement and tracks the object until it is out of the camera’s view, this ensures activity is effectively recorded. Audio detection recognises increases or decreases in sound volume and provides another layer of intrusion detection for accurate surveillance.

A choice of 3 compression methods gives the user bandwidth management flexibility depending on network conditions. PoE+ reduces cabling costs when installing the camera as only one cable is needed for full power and network connectivity. Edge recording onto an integrated SD card (not included) provides local storage space as an alternative to transferring straight to centralised servers or PCs.

Please note: this camera does not come with a power supply, please select from the above drop down menu if required.

Key features & benefits

• HD 1080p at 30 fps or HD 720p at 60 fps provides high quality video footage at the required frame rate, 60fps is ideal for traffic surveillance and monitoring busy areas
• 360° panning and 200° tilt enables the camera to effective monitor a large scene
• 20x optical zoom gives the camera the ability to capture detailed images across long distances without compromising quality
• With true day/night functionality, the SD8363E switches between colour mode during daylight to mono mode at night time through an infrared cut-filter for 24/7 high quality images
• The IP66 rated outdoor casing protects the camera against extreme weather conditions and enables full operation during temperatures between -40°C – 55°C
• Triple codec provides compression method choice to suit network requirements
• WDR Pro wide dynamic range technology provides good camera adaption to challenging lighting conditions, particularly when dark shadows and bright lights is present
• Audio detection provides an additional layer of intrusion detection by recognising increases or decreases in sound volume
• Auto tracking provides instant reaction to movement, ensuring events are recorded effectively
• Privacy masking ensures no sensitive or private footage is recorded by blocking out specific set areas of the camera’s view
• PoE+ powers the camera and all its features through a single cable for simple, quick installation
• On-board storage provides an alternative recording solution to servers if preferred and ensures data is backed up in the event of network failure

Compatible recording platforms

• Software:
  • Vivotek ST7501 (included)
  • Milestone XProtect
• Network Video Recorders:
  • NUUO Network Video Recorders

Typical applications

The Vivotek FD8363E network camera is ideal for monitoring large wide open outdoor environments such as airports, motorways and car parks where high quality, precise data is required and reliability. This camera can also be used indoors in hazardous areas such as factories and laboratories.

Accessories

Included:

• Vivotek ST7501 32-channel recording software
• User manual
• Quick installation guide
• Installation wizard 2
• Wall mount bracket
• Screws
• Waterproof connectors
• Terminal blocks
• RJ45 coupler
• Ethernet cable
• Warranty card
• Alignment sticker
• T25 stardriver
• Seal ring

Optional (please select from above drop down menu if required):

• SD card
• High PoE midspan
