| MD8562

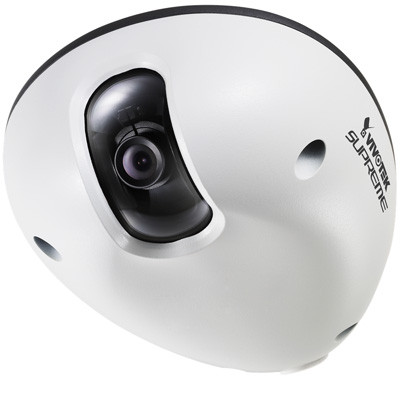

Vivotek MD8562 rugged, vandal-proof outdoor IP camera with HD1080p, PoE, MicroSD recording and tamper detection

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alternatives please see Wisenet IP Cameras

Overview of the Vivotek MD8562

Designed for use in areas prone to vandalism and in moving vehicles, the Vivotek MD8562 IP camera features a vandal-proof and outdoor-ready casing with protection from shocks, vibration, humidity and temperature fluctuations. The camera's 110° wide angle lens and HD 1080p resolution capture sharp and detailed video footage from a large area, minimising the chance that anything is missed.

The camera's intelligent detection system identifies interference with the camera such as spray paint on the lens, alerting staff immediately to minimise camera downtime. Installation of the camera is also quick and easy with Power over Ethernet support as only a single cable is required for both power and data.

With on-board recording to MicroSD memory card, the camera provides a backup as well as an alternative to centralised NVR or server-based recording. The Vivotek MD8562 network dome camera also comes with free IP camera recording software, allowing you to connect up to 36 security cameras into a single surveillance system.

Please note: This camera does not come with a power supply. Should you require a Power over Ethernet midspan please add one from the options above.

Key features & benefits of the Vivotek MD8562

  • The compact, vandal-proof casing and tamper-resistant mechanism make this camera ideal for installation within the transport world and other vandal-prone environments.
  • Produces detailed HD1080p video from over a wide area using the 110° wide angle lens
  • Records video using a MicroSD memory card with no additional equipment, ideal for backup or stand-alone operation
  • Detects attempts to interfere with the camera using a software-based tamper detection system
  • The camera is quick to install with Power over Ethernet support for easy cabling and power delivery

Typical applications for the Vivotek MD8562

This camera, with tough casing and HD 1080p resolution, is primarily designed for surveillance in moving vehicles such as trains, buses and HGVs, but is also ideal for use in locations such as building and car park entrances, shop fronts, warehousing and school corridors

Included accessories for the Vivotek MD8562

  • Software CD
  • Alignment sticker
  • Quick installation guide
  • Warranty card
  • Ground wire
  • Screws
  • Screwdriver
  • Moisture absorber
  • RJ45 Female/Female Coupler
Back To Top

Key technical features for the Vivotek MD8562

Environment: Moving vehicles / outdoors
Type: Compact fixed-dome
Sensor: 1/2.7" progressive scan CMOS sensor
Lens: Fixed 2.8mm (F2.0) lens with 110° horizontal viewing angle
Audio: 2-Way, full duplex audio with GSM-AMR, AAC and G.711 compression
Power: IEEE802.3af Power over Ethernet (Class 3)
Compatibility: Microsoft Windows 7/Vista/XP/2000 with Internet Explorer 7 or above
Resolution: 1920x1080, 1600x1200, 1600x904, 1360x768, 1280x720, 800x600, 640x480, 640x360, 384x216, 320x240 and 176x144
Compression: H.264, MJPEG and MPEG-4
Frame-rate: 30fps in all resolutions and compression formats
Minimum illumination: 0.2 Lux
Video overlay: Timestamp and text
Imaging: Configurable brightness, contrast, saturation, sharpness, white balance and exposure, AGC, AWB, AES, WDR and backlight compensation
Viewing, detection & recording
Privacy masking: Yes
Simultaneous users: 10
Alarm detection: Video motion detection, system boot, recording notification and camera tampering detection
External alarm inputs and outputs:1x alarm input
Alarm notifications: Upload via FTP and email and recording to SD memory card
Recording triggers: Alarm, manual trigger, digital input and periodical trigger
On-camera recording: MicroSD memory card
Recording software included: ST7501 32-channel recording software
Compatible recording platforms (not included)
Software: Vivotek ST7501 (included), Milestone XProtect, Security Spy (for Mac)
Network Video Recorders: QNAP range
Network: 10/100Mbps RJ-45 Ethernet connection with PoE support
Audio: 2x 3.5mm mini-jack audio ports
Dimensions: 130mm x 107mm x 47mm
Weight: 450g
Colour: White
Warranty: 3 Year manufacturer's warranty
Mounting methods: Wall or ceiling mountable
Operating temperatures:-25 to 55°C (-13 to 131°F)
Power consumption: 4.3W (7.5W with heater)
Dynamic DNS: Yes
Protocols supported: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
QoS: Yes
ONVIF compliant: Yes
