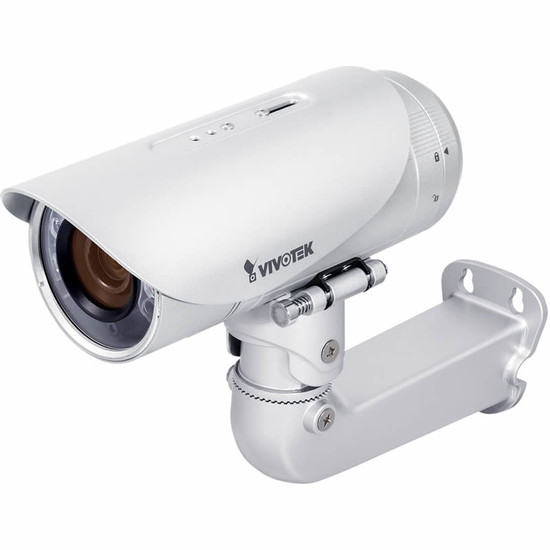

Vivotek IP8371E outdoor bullet IP camera with 3MP resolution, HD 1080p (60 fps), 30m Smart IR LEDs and P-iris lens

This product is discontinued, for alternatives please see Wisenet IP Cameras

Overview of the Vivotek IP8371E

High-level and cost-effective IP8371E IP67-rated external bullet network camera from Vivotek, capable of 3 megapixel resolution at 30 fps and HD 1080p at 60 fps. Advanced night-time surveillance is provided by true day/night functionality, 30m IR LEDs, Smart IR technology, Supreme Night Visibility and 3D noise reduction. Additional features include P-iris lens, wide dynamic range, Start Stream technology, two-way audio, triple codec, on-board recording, PoE and Corridor Format. Comes with cable managed bracket, 32-channel software and mobile access.

Equipped with a 3 megapixel sensor, the advanced whilst affordable IP8371E bullet network camera from Vivotek delivers 2048x1536 (3MP) resolution at 30 frames per second and 1920x1080 (HD 1080p) at 60 frames per second. Incorporating an infrared-cut filter and 30m infrared LED lights with Smart IR technology to avoid overexposure, the camera provides long-range night-vision enhanced further by 3D noise reduction and Supreme Night Visibility. IP67 rated and an included cable managed bracket makes the IP8371E robust and suitable for outdoor applications subject to harsh weather.

The Vivotek IP8371E is easy to install using the Smart Focus System, enabling focus and zoom to be carried out remotely, whilst Power over Ethernet (PoE) requires only one cable to be installed to transmit both power and data. The P-iris lens is controlled by its built-in stepper motor, maintaining the iris opening at optimal levels to provide high-level sharpness and field depth. The IP8371E is able to capture detail of objects in high contrast environments using wide dynamic range (WDR) technology.

Featuring configurable triple window video motion detection, the Vivotek IP8371E alerts the user to activity detected in pre-defined areas. Support for two-way audio enables operators to transmit and receive audio simultaneously by connecting a microphone and speaker (not included), allowing sound to be captured to assist with event analysis and verbal warnings to be given. With Smart Stream technology, users are able to optimise the resolution of a region of interest, enabling viewing in higher quality for identification, whilst also conserving bandwidth usage. Bandwidth use can further be optimised by utilising the Corridor View function that rotates video streams to enhance viewing of vertically orientated scenes.

The IP8371E supports edge recording onto an integrated MicroSD card (not included), providing decentralised storage that can be used as a backup if the network fails. Users can choose from H.264, Motion JPEG for MPEG-4 compressions, making the IP8371E suitable for a wide variety of requirements and preferences.

The IP8371E comes with Vivotek’s ST7501 software for up to 32 cameras and the Vivotek iViewer app enables remote viewing via smartphones.

Please note: this camera does not come with a power supply, please select from the above drop down menu if required.

Key features & benefits

• Detailed surveillance with 3 megapixel sensor producing 30 fps @ 2048x1536 or 60 fps @ 1920x1080 for smooth recording of fast-paced activity
• Infrared-cut filter provides ‘true’ day/night functionality for 24-hour monitoring
• 30m Smart IR vision enables long-range image capture in total darkness, adapted to best illuminate a scene to avoid overexposure
• Increased sensitivity from Supreme Night Visibility technology
• Optimum field depth and image clarity with P-iris lens
• 3D noise reduction produces polished video captured in low illumination
• Able to produce detail in high contrast environments with wide dynamic range (WDR)
• Areas of interest can be viewed in higher resolution using Smart Stream technology, conserving bandwidth
• IP67 rated casing protects the camera against bad weather and the included cable managed bracket ensures neat installation and protects cables from wear
• Corridor view changes video orientation to optimally view scenes such as hallways and corridors
• Three video motion detection areas can be configured to alert the user to activity in specific regions
• Microphone and speaker (not included) can be connected to the camera to facilitate bi-directional audio
• On-board recording to MicroSD card (card not included) provides a low-cost data back up solution
• Camera receives power and data through a single cable using PoE, simplifying installation
• H.264, Motion JPEG or MPEG-4 compression formats can be selected depending on requirements
• Free 32-channel Vivotek software
• Mobile access via Vivotek iViewer app

Compatible recording platforms

• Software:
  • Vivotek ST7501 (included)
  • Milestone XProtect (using ONVIF)
• Network Video Recorders:
  • Vivotek Network Video Recorders
  • NUUO Network Video Recorders
  • QNAP Network Video Recorders

Typical applications

The Vivotek IP8371E is an advanced network camera suitable for critical outdoor surveillance in demanding applications, where low-cost 24/7 recording is required at a fast frame rate to capture fast-paced activity. Typical examples include banks, casinos, government buildings, airports and shipping ports.

Accessories

Included:

• Vivotek ST7501 32-channel software
• RJ45 cable
• Sunshield
• Wrench
• RJ45 female-female coupler
• Double-sided tape
• Screws
• Wall mount bracket
• CS-mount lens
• Waterproof connector for RJ45 Ethernet enclosure
• Waterproof connector (for backup use)
• Alignment sticker
• Desiccant bag
• Warranty card
• Quick installation guide

Optional (please select from the above drop down menu if required):

• MicroSD card
• PoE midspan
