| IB836BA-HF3

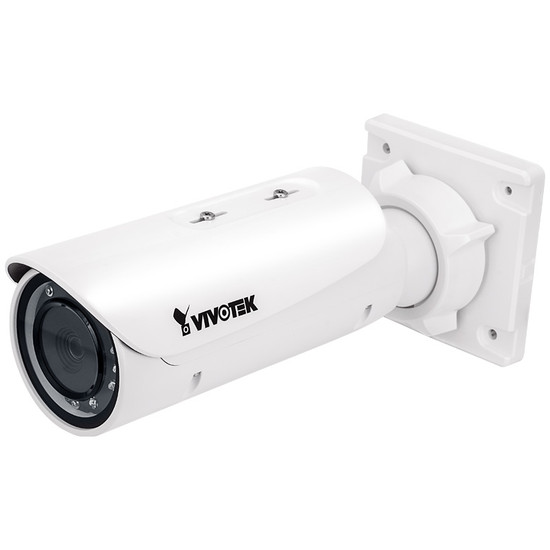

Vivotek IB836BA-HF3 outdoor bullet IP camera with 2MP resolution, 30m Smart IR night-vision, WDR and low light technology

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alternatives please see Wisenet IP Cameras

Overview of the Vivotek IB836BA-HF3

The Vivotek IB836BA-HF3 outdoor bullet IP camera delivers 2 megapixel resolution at up to 30 frames per second (fps) and includes Supreme Night Visibility (SNV) technology, allowing colour images to continue to be captured as light levels drop. Equipped with built-in infrared illuminators and Smart IR technology, the camera provides up to 30m of night vision with minimised overexposure and noise for optimal night time recording.

Wide Dynamic Range (WDR) and 3D Noise Reduction means this unit can capture detailed images with reduced levels of grain in scenes with both bright and dark areas. Using Vivotek’s Smart Stream technology helps to lower bandwidth usage by continuously optimising the live video stream. An IP66-rated vandal-resistant casing offers reliability in demanding outdoor environments and robust protection from tampering.

Please note: this camera does not come with a power supply, please select from the above drop down menu if required. Camera dimensions for the IB836BA-HF3: Ø 88 x 293 mm

Key features & benefits

  • 2MP resolution at 30 fps for detailed IP CCTV surveillance
  • The unit’s lens offers horizontal views of up to 90°
  • IK10 vandal resistant & IP66 weather resistant housing protects the unit from impact and harsh weather conditions
  • Built-in IR LEDs provide infrared night-vision at a distance of up to 30m
  • True day/night functionality provided with a switchable IR-cut filter
  • Wide dynamic range (WDR) improves image quality in scenes with high contrast lighting
  • Supreme Night Visibility and 3D noise reduction imaging technologies improve image clarity in low light conditions
  • Smart Stream helps to lower bandwidth and storage by analysing and optimising the video stream
  • Corridor view rotates video streams to prevent redundant areas from being recorded
  • Two-way audio supported with connection of external microphone and speaker (not included)
  • Five-window motion detection configuration provides enhanced security monitoring
  • Built-in SD card (not included) slot allows for on-board storage and backup
  • Supports PoE for cost-effective installation solutions and reduced cabling
  • Free 32 channel software (Vivotek VAST)
  • Live views and recording playback can be accessed remotely using Vivotek’s free iViewer mobile app

Compatible recording platforms

Typical applications

The Vivotek IB836BA-HF3 outdoor-ready bullet network camera is an affordable option for robust 24/7 CCTV surveillance in locations with severe weather conditions. Ideal areas for deployment include car parks, loading bays and bus depots.



  • VAST 32-CH Software
  • User manual
  • Quick installation guide
  • Installation wizard 2
  • Wall mount bracket
  • Alignment sticker/desiccant bag
  • Waterproof connector
  • Sun shield
  • Screw pack

Optional (please select from the above drop down menu if required):

  • PoE midspan
  • SD card
