Vivotek IB836BA-EHT outdoor bullet 2MP IP camera with low light technology, 30m IR and Extreme Weather Support with PoE+

This product is discontinued, for alternatives please see Wisenet IP Cameras

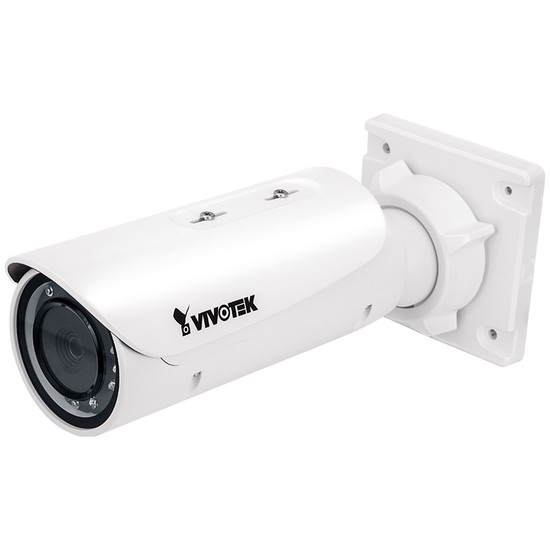

Overview of the Vivotek IB836BA-EHT

The Vivotek IB836BA-EHT outdoor bullet IP camera produces 2 megapixel images at up to 30 frames per second (fps) and features Supreme Night Visibility (SNV) technology which continues to capture colour images, even as light levels fall. Built-in infrared illuminators produce up to 30m of night vision, whilst Smart IR technology provides noise reduction and minimises the chance of overexposure.

Using 3D Noise Reduction and Wide Dynamic Range (WDR), this unit minimises grain and balances light levels in high contrast scenes to produce a clear image. Vivotek’s Smart Stream technology continuously optimises the video stream and helps to lower overall bandwidth. A vari-focal P-iris lens with remote focus is included, simplifying installation and allowing for adjustments to be made easily during maintenance. The robust IP66-rated vandal-resistant housing offers protection from impact and reliability in demanding outdoor elements. This network camera also includes an internal heater allowing for operation in temperatures as low as -50°C.

Please note: this camera does not come with a power supply, please select from the above drop down menu if required. Camera dimensions for the IB836BA-EHT: Ø 88 x 293 mm

Key features & benefits

• 2MP resolution at 30 fps for detailed IP CCTV surveillance
• IK10 vandal resistant & IP66 weather resistant housing protects the unit from tampering and the outdoor elements
• Built-in heater enables continuous operation in temperatures as low as -50°C
• The unit’s varifocal lens provides wide horizontal viewing angles (34° - 112°) and allows optimum scene coverage to be set during installation
• P-iris technology adjusts iris opening for enhanced clarity, resolution, contrast and depth of field
• Integrated IR LEDs illuminate up to 30m, enhancing night-vision
• IR-cut filter provides seamless transition from day to night mode
• Wide Dynamic Range (WDR) improves image quality in scenes with both light and dark areas
• Supreme Night Visibility and 3D noise reduction technologies improve performance in low light conditions
• Smart Stream lowers bandwidth and storage by optimising the video stream in real time
• Remote Focus allows for precise adjustments remotely during and after installation
• Corridor view rotates video streams to prevent redundant areas from being recorded
• Two-way audio supports connection of external microphone and speaker (not included)
• Five-window motion detection configuration enables accurate surveillance of specific areas
• SD card (not included) slot provides on-board storage and backup
• PoE+ compatible for power and network connectivity over one cable, reducing costs and installation time
• Free 32 channel software (Vivotek VAST)
• Live views and recording playback can be accessed remotely using Vivotek’s free iViewer mobile app

Compatible recording platforms

• VAST 32-CH Software (included)
• Milestone XProtect

Typical applications

The Vivotek IB836BA-EHT outdoor-ready bullet network camera, with its robust casing and low-light technologies, provides high quality and reliable video surveillance in locations with demanding weather conditions. Typical examples of deployment include power stations, maritime depots and train station platforms.

Accessories

Included:

• VAST 32-CH Software
• User manual
• Quick installation guide
• Installation wizard 2
• Wall mount bracket
• Alignment sticker/desiccant bag
• Waterproof connector
• Sun shield
• Screw pack

Optional (please select from the above drop down menu if required):

• PoE+ midspan
• SD card
