Vivotek FE8180 indoor IP camera with HD 1080p resolution, 360° view, MicroSD card recording and PoE

Overview of the Vivotek FE8180

This product is discontinued, for alternatives please see Wisenet IP Cameras

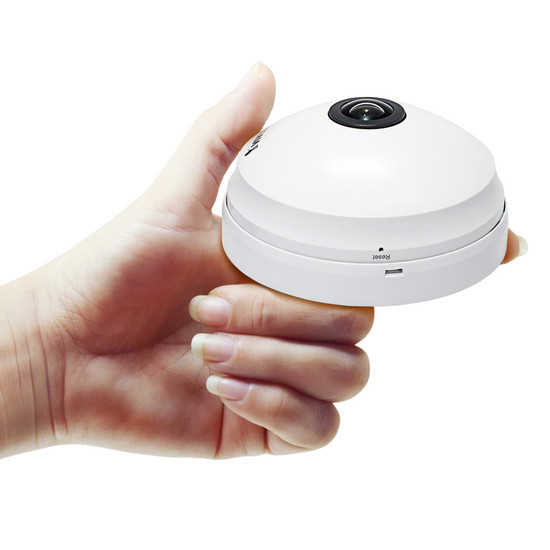

This panoramic dome IP camera by Vivotek is capable of delivering HD 1080p resolution at full frame rate (fps). Its hemispheric lens offers full 360° overviews of indoor locations - ensuring footage is captured from all angles and blind spots are eliminated. In addition, this palm sized unit includes edge storage and can be easily installed using Power-over-Ethernet (PoE).

The unit’s fisheye lens can provide a 360° overview when ceiling-mounted, or wide 180° views if mounted onto a flat wall. Multiple viewing modes such as panoramic and quad view are also supported, which allow the original fisheye image to be seen with less distortion. In addition, electronic pan/tilt/zoom controls enable the examination into specific areas of interest.

Please note: this camera does not come with a power supply, please select from the above drop down menu if required.

Key features & benefits

• Capable of delivering HD 1080p resolution at up to 30 frames per second
• Fisheye lens with a 180° angle of view offers panoramic overviews of indoor open plan areas
• Viewing modes such as panoramic and quad view allow areas of the scene to be seen with little distortion
• Wide dynamic range technology enables details in scenes with both bright and dark areas to be viewed clearly
• Low-light images have less noise and require less bandwidth with 3D noise reduction
• Video motion detection with 5 programmable detection windows provide enhanced security monitoring in areas of interest
• Regions of the original image can be examined in detail using electronic pan/tilt/zoom controls
• Flexible file compression with support for H.264 and Motion JPEG
• Edge storage provides a backup solution in the case of network connection failure and is also ideal in standalone set ups
• Support for PoE reduces cabling by delivering both power and network connectivity via a single cable
• Remote access to the camera via iViewer mobile app enables convenient mobile management
• Free 32-channel recording software (ST7501)
• Dimensions: Ø90 x 37mm
• PoE consumption: 3.6W
• Warranty period: 2 years

Compatible recording platforms

• Milestone XProtect (using ONVIF driver)

Typical applications

The Vivotek FE8180 panoramic dome IP camera delivers unobtrusive 360° or 180° overviews of indoor locations in HD 1080p resolution. Typical applications include independent retail stores, open plan offices and waiting areas.

Accessories

Included:

• User manual
• Quick installation guide
• Installation Wizard 2
• ST7501 32-channel recording software
• Warranty card
• Alignment sticker
• Screws pack
• Mounting bracket
