| FE8174V-1

Vivotek FE8174V vandal resistant outdoor IP camera with 5 MP, 180° or 360° surround view, ePTZ, PoE and SD card recording

Free delivery on mainland UK and most EU countries Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alternatives please see Wisenet IP Cameras

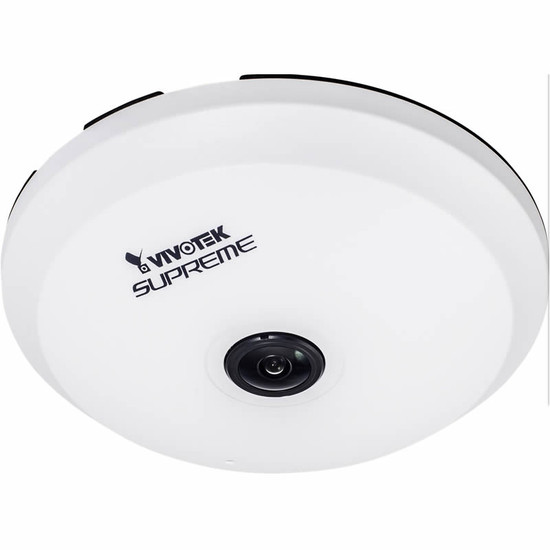

Overview of the Vivotek FE8174V

Vivotek FE8174V outdoor 360° fisheye camera with high 5 megapixel resolution, capable of providing a full hemispheric surround view when ceiling mounted or a 180° view when wall mounted, for video monitoring without blind spots. Ideal for large large open spaces, such as hotel lobbies, shopping centres and car parks.

The Vivotek FE8174V 360° IP camera is an advanced, feature-packed unit featuring a 5 megapixel resolution sensor. The fisheye lens provides various display layouts, achieving full 360° viewing when ceiling mounted or 180° panoramic viewing when mounted to a wall. On-board dewarping means that the video stream showing on display monitors is in a conventional, useful format without the need for any additional software. The FE8174V's digital pan-tilt-zoom function (ePTZ) offers effective monitoring of large areas in detail, whilst preventing blind spots so that nothing will be missed. IK10 and IP66 rated, this low-profile camera is unobtrusive and suitable for outdoor use and in areas where there is a risk of tampering with the camera.

Featuring a removable IR cut-filter, this Vivotek camera automatically switches to the correct capture mode depending on ambient light levels, capturing colour images during daylight or monochrome (black and white) images in low light and at night. Two way audio and a built-in microphone enables sound recording enriching the video footage for easier and more detailed event analysis. The camera's 'pixel calculator' makes it easy to set up the camera with the required level of image detail in a particular area of interest.

Five window intelligent video motion detection provides reliable, accurate security surveillance as activity detected in user-defined areas can trigger a series of events, including alert notification via digital outputs, email and HTTP whilst recording is started also. Capable of providing three individually configurable streams the FE8174V CCTV camera offers plenty of flexibility for bandwidth and storage management, whilst recording options include on-board video storage, recording directly onto a NAS or centralised recording using Vivotek's freely included ST7501 recording software or an open platform video management software such as Milestone Xprotect. Mobile access is available via the iViewer app with both iOS and Android versions available. Support for Power over Ethernet (PoE) requires only a single cable for camera installation, reducing time and costs.

Please note: this camera does not come with a power supply, please select a midspan from the above drop down menu if required.

Key features & benefits

  • 5 megapixel resolution sensor produces high detail images
  • Fisheye lens provides 360° viewing when ceiling mounted or panoramic 180° when wall mounted for effective area coverage without blind spots using a single camera
  • IK10 and IP66 ratings mean the camera is protected against impact and from rain and dust
  • A built-in microphone and external microphone input/output enable the camera to support two-way audio and facilitate verbal interaction and sound recording
  • Clear images are captured 24/7 through an IR-cut filter, giving the camera ‘true’ day/night capability
  • Five window intelligent video motion detection enables the camera to alert the user of an event in user-defined areas via email notification and digital outputs for reliable monitoring
  • iViewer app with both iOS and Android support
  • Capable of recording directly onto a NAS, offering a simple, cost-effective set up
  • Pixel calculator function enables the installer ensure required level of detail of a specific area
  • Triple codec gives the user a choice of compression methods to suit network requirements
  • PoE provides power to the camera through the Ethernet cable, reducing installation costs
  • SD card storage (card not included) provides a data backup solution in case of network failure or stand-alone operation

Compatible recording platforms

  • Vivotek ST7501 supporting up 32 Vivotek IP camera or video encoder channels (included)
  • Milestone XProtect

Typical applications

The Vivotek FE8174V network camera is ideal for outdoor applications that require 24/7 monitoring of a large area in high detail. Typical applications include surveillance of car parks, shopping centres, retail stores and offices.



  • VivotekST7501 32-channel recording software
  • User manual
  • Quick installation guide
  • Installation Wizard 2
  • Warranty card
  • Alignment sticker
  • Desiccant bag
  • Screw driver
  • Screws pack
  • I/O cable
  • Mounting bracket

Optional (please select from above drop down menu if required):

  • PoE midspan
  • SD card
Back To Top

Key technical features for the Vivotek FE8174V

Environment:outdoor IP66, IK10 rated network camera
Type:fixed fisheye dome
Sensor:1/2.5" Progressive CMOS sensor in 2560 x 1920 resolution
Lens:fixed-focal, f = 1.1 mm, aperture: 2.0, field of view: 180° (horizontal), 180° (vertical), 180° (diagonal)
PTZ:ePTZ, 12x digital zoom ( 12x on IE plug-in )
Audio:audio input/output ( full duplex ), compression: AAC, G.711, G.726, built-in microphone, external microphone input, effective range: 5 meters
Power:12V DC, IEEE 802.3af PoE Class 2
Compatibility:OS: Microsoft Windows 7/Vista/XP/2000, browser: Mozilla Firefox 7~10 (streaming only), Internet Explorer 7.x or 8.x, other players: VLC: 1.1.11 or above, QuickTime: 7 or above
Compression:H.264, MJPEG, MPEG-4
Frame-rate:in all compression modes: 15 fps at 1920x1920, 30 fps at 1920x1080
Bandwidth control:adjustable resolution, quality and bit rate
Minimum illumination:0.03 Lux @ F2.8, 50 IRE (colour), 0.001 Lux @ F2.8, 50 IRE (B/W)
Imaging:adjustable image size, quality, and bit rate, pixel calculator, time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings
Viewing, detection & recording
Privacy masking:yes
Number of users:10
Alarm detection:five-window video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
Alarm action:event notification using HTTP, SMTP, FTP and NAS server, file upload via HTTP, SMTP, FTP and NAS server, auto tracking
SD card storage:MicroSD/SDHC/SDXC card slot
Recording software included:Vivotek ST7501 32-ch recording software
Power:DC 12V power input
Network:RJ-45 cable connector for Network/PoE connection
Audio I/O:audio input, audio output
Digital I/O:digital input x 4, digital output x 2
Dimensions:Ø: 145 mm x 52 mm
Weight:0.54 kg (net)
Warranty:36 months
Certifications:CE, C-Tick, EN50155, FCC Class A, LVD, UL, VCCI
Mounting methods:wall, ceiling
Operating temperatures:starting temperature: -25°C ~ 50°C (-13°F ~ 122°F), working temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Power consumption:max. 5.1 W (DC 12V), max. 5.3 W (PoE)
Dynamic DNS:yes
ONVIF compliant:yes
