Vivotek | FD8362E
Vivotek FD8362E outdoor IP camera with HD1080p resolution, Smart Focus System, MicroSD and on-board heater
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
This product has now been discontinued, an alternative camera is the Bosch FLEXIDOME IP Starlight 6000 VR outdoor dome.
Overview of Vivotek FD8362E

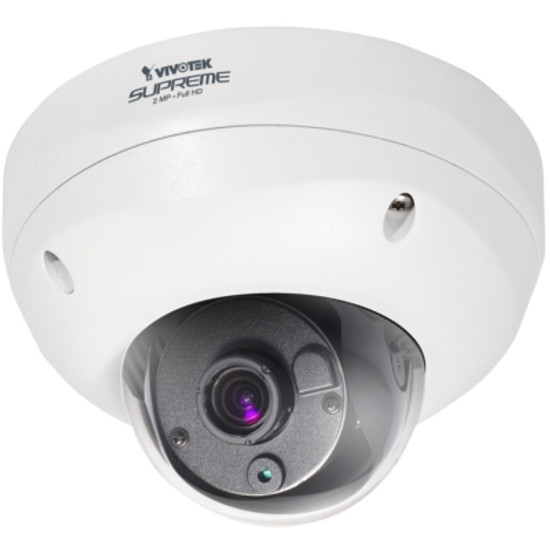

The Vivotek FD8362E is an all-in-one IP66-rated fixed dome IP camera which can be used to monitor outdoor locations even in extreme weather conditions. Viewing and recording in full HD 1080p resolution, the camera is ideal for surveillance of wide, open areas where high zoom and detailed scene capture for identification is essential.
The FD8362E has an on-board Smart Focus System to remotely adjust the focus and focal length settings of the camera. Features such as Focus Assist and Remote Focus helps provide hassle-free installation and maintenance.
Tamper detection sends out notifications to security staff whenever the camera view is obscured, ensuring a quick response. The camera can also be powered using PoE and the on-board MicroSD card slot can be used an alternative to centralised recording on network video recorders (SD card sold separately).
Please note: This camera does not come with a power supply. Should you require a Power over Ethernet midspan please select one from the options above.
Key features & benefits of Vivotek FD8362E
- Monitor and record in full HD 1080p resolution using a 2 megapixel sensor, delivering clear and detailed video
- Focus adjustment features such as Focus Assist and Remote Focus help to simplify installation
- Built-in heater allows the camera to continue operating even in temperatures as low as -40°C
- IP66-rated vandal-resistant housing protects the camera against damage
- MicroSD card slot provides an alternative to hardware-based recording solutions (card not included)
Typical applications of Vivotek FD8362E
Able to operate in temperatures as low as -40°C, the Vivotek FD8362E is ideal for surveying areas which must remain in constant surveillance even during extreme weather conditions, including airports, banks, government buildings, warehouse and coldstores, military sites and for perimeter surveillance.
Included Accessories for Vivotek FD8362E
- Vivotek FD8362E IP camera
- Quick installation guide
- Software CD
- Alignment sticker
- Bushing
- Mounting plate
- Waterproof connector
- Power adapter
- L-type hex key wrench
- Screws
- Hex nut
- DC power cable
- Double-sided tape
- Silica gel
- Warranty card
Key technical features for Vivotek FD8362E
Camera | |
| Environment: | outdoor |
| Type: | fixed dome IP camera |
| Sensor: | 1/2.7" progressive scan CMOS sensor in 1920x1080 resolution |
| Lens: | fixed 3 ~ 9mm varifocal board lens, F1.2 (wide), F2.1 (tele), auto iris |
| PTZ: | ePTZ |
| Audio: | GSM-AMR speech encoding (bit rate: 4.75 to 12.2 Kbps); MPEG-4 AAC audio encoding (bit rate: 16 to 128 Kbps); G.711 audio encoding (bit rate: 64 kbps, µ-Law or A-law mode selectable); external microphone input, audio output, two-way audio support, audio mute support |
| Power: | 12V DC; 24V AC; Power over Ethernet (IEEE 802.3af) Class 3 |
| Processor/memory: | CPU: Multimedia SoC; Flash: 16MB; RAM: 256MB; embedded OS: Linux 2.6 |
| Compatibility: | Microsoft Windows 7/Vista/XP/2000; browser: Internet Explorer 6.x or above, Mozilla Firefox; mobile viewing: 3GPP; RealPlayer 10.5 or above; QuickTime 6.5 or above |
Video | |
| Resolution: | multiple resolutions up to 1920x1080 |
| Compression: | H.264, MPEG-4, MJPEG |
| Frame rate: | up to 30 fps at 1920x1080 in all compression formats |
| Bandwidth control: | activity adapted streaming for dynamic frame rate control |
| Day/night: | removable infrared-cut filter for day/night function |
| Minimum illumination: | colour: 0.08 lux @ F1.2; monochrome: 0.001 lux @ F1.2 |
| Video overlay: | time stamp and text caption overlay |
| Imaging: | shutter time: 1/5 sec to 1/32000 sec; adjustable image size, quality and bit rate; flip and mirror; configurable brightness, contrast, saturation, sharpness, white balance and exposure; AGC, AWB, AES; WDR enhanced; automatic, manual or scheduled day/night mode; backlight compensation |
Viewing, detection & recording | |
| Multi-camera viewing: | multiple simultaneous streams |
| Privacy masking: | yes |
| Simultaneous users: | live viewing for up to 10 clients |
| Alarm detection: | triple-window motion detection; tamper detection; event notification using HTTP, SMTP or FTP; local recording of MP4 file |
| External alarm inputs and outputs: | 1x D/I and 1x D/O for external sensor and alarm |
| Alarm notifications: | event notification using HTTP, SMTP or FTP, local recording of MP4 file |
| Recording triggers: | manual, alarm or schedule |
| On-camera recording: | MicroSD memory card slot (card not included) |
| Recording software included: | Vivotek ST7501 32-channel recording software |
Compatible recording platforms (not included) | |
| Software: | Vivotek 32-channel ST7501 recording software (included); Milestone XProtect |
| Network Video Recorders: | QNAP |
Connections | |
| Power: | terminal block for general I/O connection |
| Network: | 10/100 Mbps RJ-45 Ethernet connection with Power over Ethernet (IEEE 802.3af) support |
| Alarm I/O: | 1x D/I and 1x D/O for external sensor and alarm |
| Audio: | 3.5mm mini-jack for external microphone input |
Other | |
| Dimensions: | ø173 x 115mm (DxH) |
| Weight: | 1.296 kg |
| Colour: | white |
| Warranty: | three-year manufacturer's warranty |
| Mounting methods: | ceiling mount |
| Operating temperatures: | -40 ~ 55°C |
| Power consumption: | 21.6W (max, with heater) |
| Dynamic DNS: | yes |
| Protocols supported: | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, and 802.1X |
| QoS: | yes |
| Security: | multi-level user access with password protection; IP address filtering; HTTPS encrypted data transmission; 802.1X port-based authentication for network protection |
