| FD8335H

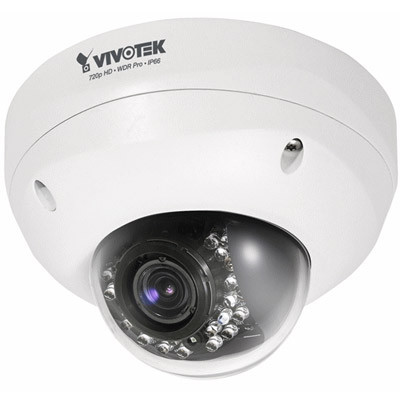

Vivotek FD8335H outdoor HD720p IP security camera with 20m infrared night vision, WDR, P-iris and PoE support

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

Overview of Vivotek FD8335H

This product is discontinued, an alternative model is the Axis M3205-LVE vandal-resistant outdoor dome IP camera

The Vivotek FD8335H outdoor IP camera is capable of capturing footage at HD720p resolution. This camera boasts a number of advanced features that help to provide high-quality video footage, particularly during difficult lighting conditions. Built-in infrared LEDs allow the camera to monitor around the clock, providing illumination at up to 20m, while a built-in infrared-cut filter switches between full colour and monochrome video in darkness in order to allow for continuous 24/7 operation and recording.

Wide Dynamic Range Pro allows the camera to capture video at differing contrasts, combining light and dark areas of a scene in order to produce image quality similar to the human eye, which can be particularly useful in areas which may be subject to sudden changes in light.

A number of features allow the camera to monitor specific areas, including triple-window motion detection which allows you to select multiple areas of focus, while ePTZ technology digitally zooms in on areas without physically moving the camera, avoiding any mechanical wear and tear.

A vandal-proof housing helps protect against harsh weather and attempts to damage the mechanism. The camera is also compliant with Power over Ethernet connectivity, allowing it to receive power and network connectivity using a single cable. For recording, the Vivotek FD8335H has an SD card slot (SD card not included) and also comes with 32 channel IP camera recording software free of charge.

Please note: This camera does not come with a power supply. Please select from above if required.

Key features & benefits of Vivotek FD8335H

  • Able to capture video in high-quality HD720p resolution
  • Built-in infrared LEDs provide illumination of up to 20m from the camera, while an infrared-cut filter switches from colour to black and white to allow recording to continue at night
  • P-iris technology improves image clarity in difficult lighting conditions by adjusting iris settings while maintaining an optimum iris opening
  • Wide Dynamic Range Pro captures and combines light and dark areas of a scene to ensure a clearer image for areas with constantly changing light sources
  • IK10 and IP66-rated vandal-resistant housing helps to protect against harsh weather and attempts to vandalise the camera
  • Compliant with Power over Ethernet (PoE), using a single cable to provide the camera with power and network connectivity
  • Option to record onto SD card use the included 32 channel recording software; or both

Typical applications of Vivotek FD8335H

With a robust outdoor housing, the Vivotek FD8335H can be used to monitor outdoor locations which may be subject to changing light conditions, including business entrances, car parks, factories, loading bays, transport hubs, train stations, bus terminals and for cash machine surveillance.

Accessories for Vivotek FD8335H

  • Vivotek FD8335H IP camera
  • CD with installation guide and ST7501 32-channel recording software
  • Quick installation guide
  • Warranty card
  • Mounting plate
  • Alignment sticker
  • Ceiling hole template sticker
  • L-type hex key wrench
  • Silica gel
  • Screws
  • Hex nut
  • Double-sided tape
  • AV cable
  • Waterproof connector & bushing
Back To Top
Type:dome camera
Sensor:1/2.7” progressive scan CMOS sensor
Lens: fixed 3 ~ 9mm varifocal lens, F1.2 (wide); F2.1 (tele), horizontal viewing angle: 102.68° ~ 35.4°
Audio:audio input/output using GSM-AMR, AAC & G.711 compression
Power:24V AC, Power over Ethernet (IEEE802.3af) Class 3
Processor/memory:Multimedia SoC; 16MB Flash memory; 128MB RAM
Compatibility: Microsoft Windows 7/Vista/XP/2000; browser: Internet Explorer 7.x or 8.x, Mozilla Firefox 7 ~ 10 (streaming only)
Resolution:1280x800 (maximum)
Compression:H.264, MJPEG, MPEG-4
Frame rate:up to 30 fps @ 1280x800 in all compressions
Bandwidth control:simultaneous streaming; adjustable resolution, quality and bitrate; configurable video cropping for bandwidth saving
Day/night:removable infrared-cut filter; built-in infrared LEDs (x18) effective up to 20 metres
Minimum illumination:colour: 0.8 lux @ F1.2, 50 IRE; black and white: 0.001 lux @ F1.2, 50 IRE
Video overlay:time stamp and text overlay
Imaging:shutter time: 1/15 sec to 1/25000 sec; adjustable image size, quality and bit rate; flip & mirror; configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings
Viewing, detection & recording
Privacy masking:yes
Simultaneous users:up to 10 clients
Alarm detection:video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification
Intelligent video:triple-window video motion detection
External alarm inputs and outputs:4x input, 2x output
Alarm notifications:event notification using digital output, HTTP, SMTP, FTP and NAS server; file upload via HTTP, SMTP, FTP and NAS server
Recording triggers:manual, alarm or schedule
On-camera recording:MicroSD/SDHC card slot (card not included)
Recording software included:ST7501 32-channel recording software
Compatible recording platform (not included)
Software:Vivotek ST7501 (included), Milestone XProtect
Network Video Recorders:QNAP
Power:terminal block for AC 24V power input (x2)
Network:10/100Mbps RJ-45 Ethernet with PoE support
Alarm I/O:terminal block for digital input (x4); terminal block for digital output (x2)
Audio:3.5mm phone jack for audio input/output (x2)
Dimensions:ø173mm x 115mm
Warranty:2 year manufacturer warranty
Mounting methods:ceiling and wall moutnable
Operating temperatures:-20 ~ 50°C
Power consumption:8W (max)
Dynamic DNS:yes
Protocols supported:IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
ONVIF compliant:yes
