| FD8134V

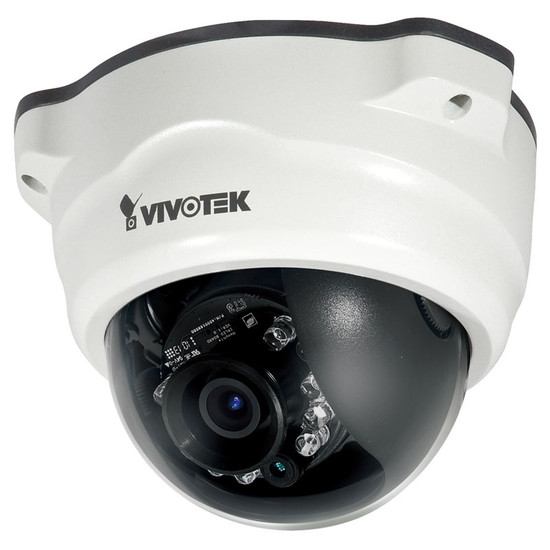

Vivotek FD8134V outdoor IP camera with 10m infrared night vision, 1 megapixel, H.264 and edge storage

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alternatives please see Outdoor IP Cameras

Overview of Vivotek FD8134V

With its weather-proof casing, the Vivotek FD8134V IP CCTV camera is suitable for monitoring outdoor locations. The FD8134V comes with integrated infrared LEDs, providing nightvision up to a distance of 10 metres in complete darkness, making it an ideal camera for areas that need to be monitored day and night. A mechanical infrared-cut filter helps the camera to automatically switch from full colour to black and white video in reaction to a drop in light levels. This in combination with 1 megapixel image resolution, makes the Vivotek FD8134V an attractive, affordable security solution for many different types of scenarios.

The camera is Power over Ethernet compliant, enabling it to recieve both power and network connectivity using a single cable, helping to save on wiring and allowing for quick and easy installation.

A built-in MicroSD card slot (card not included) provides an alternative recording solution, able to capture imagery and video clips when recording triggers such as motion detection are activated. Images from the FD8134V can also be viewed using a mobile phone through 3GPP support, useful for monitoring on the move.

Please note: This camera does not come with a power supply. Should you require a Power over Ethernet midspan please select one from the options above.

Key features & benefits of Vivotek FD8134V

  • Integrated infrared LEDs provide nightvision up to 10 metres, allowing the camera to continue recording around the clock
  • Day/night switching using a removable infrared-cut filter, allowing the camera to switch from full colour to black and white video in reaction to low-light conditions
  • 1 megapixel resolution delivers high quality video at up to 30 frames per second for a clear picture
  • On-board MicroSD card slot (card not included) provides an alternative recording solution, helping to reduce bandwidth usage and storage space elsewhere
  • H.264 compression reduces file size with minimal impact on image quality, helping to help reduce network demands
  • Durable IP66-rated housing protects the camera against outdoor weather conditions

Typical applications of Vivotek FD8134V

The compact dome design of the Vivotek FD8134V, combined with 1 megapixel resolution and up 10 metre infrared nightvision, make this camera perfect for use in small businesses, entrances, small car parks and even at home.


  • Vivotek FD8134V IP dome camera
  • Power adapter
  • Camera stand
  • Alignment sticker
  • Clamp core
  • Screwdriver
  • Screws
  • Quick Installation Guide
  • Software CD
  • Warranty card
Back To Top

Key technical features for Vivotek FD8134V

Sensor:1/4" CMOS sensor in 1280x800 resolution
Lens:fixed 3.6mm (F1.8) board lens with removable infrared-cut filter
Power:Power over Ethernet (IEEE 802.3af) Class 2; 12V DC
Processor/memory:CPU: TI DM365 SoC, RAM: 256MB, Flash: 128MB
Compatibility:Microsoft Windows 7/Vista/XP/2000; browser: Mozilla FireFox, Internet Explorer 6.x or above; cell phone: 3GPP player; RealPlayer 10.5 or above; QuickTime 6.5 or above
Compression:H.264, MPEG-4, MJPEG
Frame rate:up to 30 fps at 1280x800 in all compression formats
Bandwidth control:Activity adapted streaming
Day/night:Built-in infrared illuminators, effective up to 10 metres; removable infrared-cut filter
Minimum illumination:colour: 0.3 lux (F1.8); day/night: 0 lux (when used with infrared light source) (F1.8)
Video overlay:timestamp and text overlay
Imaging:Configurable brightness, contrast, saturation, sharpness, white balance and exposure; automatic, manual or scheduled day/night mode; BackLight Compensation
Viewing, detection & recording
Privacy masking:yes
Simultaneous users:10
Alarm detection:triple-window video motion detection, tamper detection
External alarm inputs and outputs:1 input
Alarm notifications:event notification using HTTP, SMTP or FTP, local recording of MP4 files
Recording triggers:motion, tampering, external sensor
On-camera recording:MicroSD/SDHC memory card slot (card not included)
Recording software included:Vivotek 32-channel recording software
Power:socket for DC connection
Network:10/100Mbps RJ-45 Ethernet connection; Power over Ethernet (IEEE 802.3af)
Alarm I/O:terminal block for 1 alarm input; terminal block for 1 alarm output
Dimensions:ø133mm x 94mm
Colour:white with black dome
Warranty:two years manufacturer's warranty
Mounting methods:wall and ceiling
Operating temperatures:0°C to 50°C
Power consumption:4.5W (max)
Dynamic DNS:yes
Protocols supported:IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Security:Multi-level user access with password protection; IP address filtering; HTTPS encrypted data transmission; 802.1X port-based authentication for network protection
ONVIF compliant:yes
