| SNC-EB640

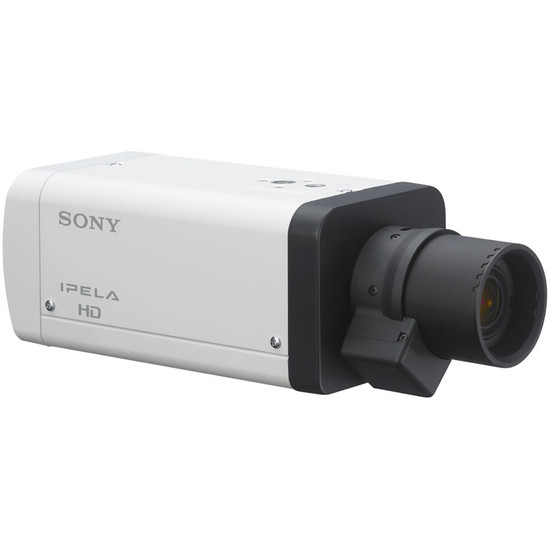

Sony SNC-EB640 indoor box IP camera with full HD 1080p (60fps), XDNR, View-DR, edge storage and PoE

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.

Ideal for busy locations that require smooth and detailed security footage, this indoor IP camera features a varifocal lens that can be adjusted at setup to provide a wide view of the scene. Smartphone viewing also enables remote access.

  • Supports DEPA intelligent video analytics
  • Edge storage provides data backup
  • Improved imaging via View-DR technology
  • Varifocal lens: 114.2°-40° viewing angle
  • HD 1080p resolution
Hurry! Only left

Overview of the Sony SNC-EB640

This product is discontinued, an alternative model is the Bosch DINION IP 5000 indoor.

The Sony SNC-EB640 indoor box IP camera produces HD 1080p images at up to 60 frames per second (fps). It offers support for true day/night recording and can be easily installed via Power-over-Ethernet (PoE). This versatile unit also includes Motion and Face detection, XDNR noise reduction technology and integrated SD card storage.

The camera’s CS-mount varifocal lens offers wide horizontal viewing angles ranging from 114.2° to 40.0° and enables optimum scene coverage to be set during installation. A 2.9x optical zoom allows areas of interest to be investigated in real-time, and a 4x digital zoom is handy for further examination of images. Image Rotation is included and allows the monitoring of narrow scenes such as shopping aisles to be optimised by rotating the sensor 90° - preventing the recording of redundant areas.

With the combination of an Exmor R CMOS image sensor and high-performance XDNR processing, this camera can capture full-colour images in near dark conditions – with significantly reduced noise. Images captured in high contrast scenes are improved with View-DR wide dynamic range technology. By ensuring details in both bright and dark areas are not lost, objects and individuals are more easily visible. Image Stabilisation is also supported, which helps to keep video recordings steady if there is camera shake or vibrations.

Various video motion detection methods can be configured, and Sony’s DEPA advanced video analytics enhance scene awareness through rule-based alarm triggers and object filters, for example ‘passing’ and ‘intrusion’ detection. Users can also easily find and retrieve events where human faces are visible thanks to Intelligent Face Detection, which rapidly indexes the recordings.

Multiple H.264 and Motion JPEG video streams enable users to view a live feed in high-definition and record in a lower definition, saving on storage costs. The on-board SD card slot (card not included) allows data to be stored locally for a handy backup if network connection is suddenly lost. Additionally, Power-over-Ethernet (PoE) supplies the camera with both power and network connectivity via a single cable – simplifying installation.

Please note: this camera does not come with a power supply, please select one from the accessories tab if required.

Key features & benefits

  • Delivers full HD 1080p resolution at up to 60 frames per second for high quality surveillance
  • Varifocal lens offers horizontal viewing angles from 114.2° to 40.0° allowing a wide area of the scene to be captured
  • Exmor R CMOS image sensor and XDNR processing allows for full colour image capture in light levels as low as 0.006 lux
  • True day/night functionality with integrated IR-cut filter enables 24-hour monitoring of indoor areas
  • View-DR wide dynamic range captures detail in scenes with contrasting light levels
  • Improved video quality when the camera is subject to vibrations with image stabilisation technology
  • Intelligent Face detection enables fast retrieval of events by rapidly indexing recordings that include human faces
  • DEPA advanced video analytics and configurable video motion detection alarms help to enhance security monitoring
  • Integrated SD card (not included) provides edge storage and allows the camera to be used as a standalone unit
  • PoE supplies power and network connection over one cable for quick and cost-effective deployment
  • Smartphone viewing provides flexible monitoring whilst on the move via Sony Smartphone Viewer

Compatible recording platforms

Typical applications

With Full HD 1080p resolution and advanced low-light technologies, the Sony SNC-EB640 box IP camera is a suitable option for businesses that require round-the-clock surveillance of indoor spaces. Typical applications include offices, hotel lobbies and leisure centres.



  • Operating Instructions
  • Wire rope
  • Screw m4

Optional (please select from the accessories tab if required):

  • PoE midspan
  • SD card
Back To Top

Key technical features for Sony SNC-EB640


Environment: indoor
Type: fixed box camera
Sensor: 1/2.8-type progressive scan Exmor R CMOS sensor
Lens: CS-mount varifocal lens, horizontal viewing angle 114.2° to 40.0°, vertical viewing angle 60.6° to 22.5°, 2.8 mm to 8.0 mm, F1.2 (wide) to F1.95 (tele)
Zoom: optical zoom 2.9x, digital zoom 4x, total zoom 11.6x
Power: PoE system (IEEE 802.3af compliant)
Compatibility: Windows 7 (32/64 bit) Ultimate, Professional Edition, Windows 8.1 Pro (32/64 bit), Windows 10 Pro (32/64 bit), Intel Corei7 2.8 GHz or higher, Microsoft Internet Explorer Ver. 11.0, Firefox Ver. 50.1 (plug-in free viewer only), Google Chrome Ver. 55.0 (plug-in free viewer only)


Resolution: 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG)
Compression: H.264 (high/main/baseline profile), JPEG
Frame-rate: H.264: 60 fps (1920 x 1080), JPEG: 60 fps (1280 x 720)
Bandwidth control: CBR/VBR (selectable)
Day/night: automatic IR-cut filter
Minimum illumination: minimum illumination (50 IRE) colour: 0.01 lx (F1.2, View-DR off, VE off, AGC on, 1/30s, 30 fps), B/W: 0.007 lx (F1.2, View-DR off, VE off, AGC on, 1/30s, 30 fps), minimum illumination (30 IRE) colour: 0.006 lx (F1.2, View-DR off, VE off, AGC on, 1/30s, 30 fps), B/W: 0.005 lx (F1.2, View-DR off, VE off, AGC on, 1/30s, 30 fps)
Imaging: View-DR wide dynamic range, visibility enhancer, XDNR noise reduction, image stabiliser

Viewing, detection & recording

Privacy masking: 20 zones, quadrangle shape formed by any four corner points, opaque 14 colours (black, white, red, green, blue, cyan, yellow, magenta, gray (6 scales)), mosaic
Number of users: 20
Alarm detection: passing, intrusion, left object detection, removed object detection, tamper alarm, face detection, intelligent video analytics, DEPA advanced analytics architecture
Alarm action: recording
On-camera recording: SD card (not included)
Recording software included: n/a


Power: PoE system (IEEE 802.3af compliant)
Network: RJ-45
Other: mini jack x3


Dimensions: 72 mm x 63 mm x 145 mm (without lens), 72 mm x 63 mm x 199 mm (with lens)
Weight: 0.55kg (with lens, net)
Colour: top cover: Munsell 3.6GY 8.4/0.3, bottom cover: Munsell 3.6GY 8.4/0.3, front panel: Munsell 3.5PB 2.2/0.4, rear panel: Munsell 4.4BG 8.4/0.2
Warranty: 3 years
Mounting methods: wall, ceiling
Operating temperatures: -10 °C to +50 °C (14°F to 122°F)
Power consumption: 6W max
Dynamic DNS: no
Protocols supported: IPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, FTP (client), SNMP (v1, v2c, v3), SSL
ONVIF compliant: yes profile S
