GEN | EM02(B)

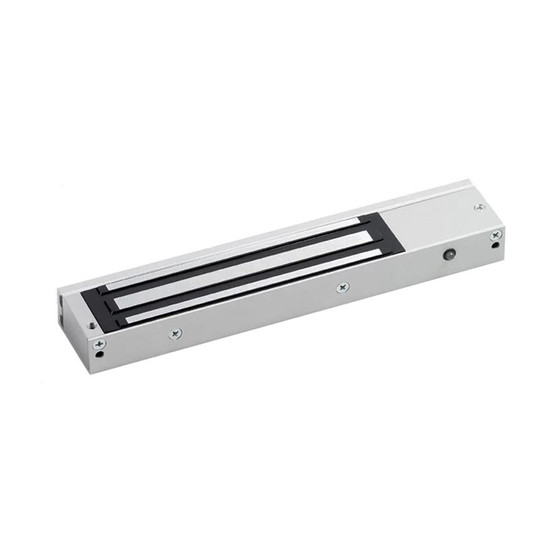

Single slim monitored maglock 12/24 VDC with LED status indicator
Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Compact, lock-monitored magnetic lock with a 275kg holding force, suitable for most indoor applications. Features LED status indication and relay contacts for signalling.
- Single door magnetic lock for access control systems
- Up to 275kg holding force
- Lock-monitoring with LED lock status indication
- MOV provides spike and surge protection
- Selectable dual voltage: 12VDC or 24VDC
- Includes armature plate and fixings
Overview of the Single slim monitored maglock 12/24 VDC
- Lock monitoring with LED status indication
- MOV provides spike and surge protection
- Fail-safe operation (power to lock)
- Dual voltage 12Vdc or 24Vdc (selectable)
- Includes top plate, armature plate and fixings
Slim single lock-monitored magnetic lock. Compact design, making it ideal for most indoor applications where 275kg holding force is sufficient. Monitoring provides LED lock status indication and relay contacts for signalling.
Back To TopKey technical features of the Single slim monitored maglock 12/24 VDC
General |
|
| Environment: | indoor |
| Holding force: | Up to 275kg (600lb) |
| Current draw: | 500mA @ 12Vdc / 250mA @ 24Vdc |
| Voltage tolerance: | +/- 15% |
| Operating temp: | -10°C to +55°C |
| Humidity: | 0-95% non-condensating |
| Relay: | COM/NO/NC (1A @ 24VDC) |
| LED indicator: | Red / Green |
| Weight: | 2kg approx. |
| Dimensions: | See product data sheet |
