Hanwha Vision (Wisenet) | SMT-3232A

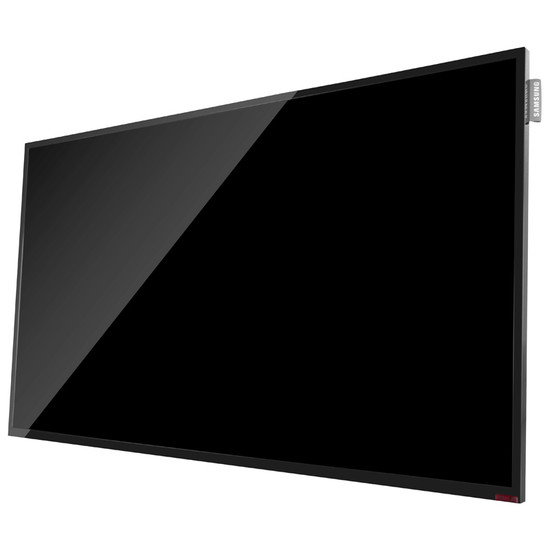

Hanwha Vision SMT-3232A professional 32" HDMI LED monitor with full HD resolution
This product is discontinued, an alternative model is the Hanwha Vision SMT-3234
Overview of the Hanwha Vision SMT-3232A
The Hanwha Vision SMT-3232A is a 32” LED display with Full HD resolution (1920 x 1080) and has the ability to produce crisp, detail-packed images. Designed for continuous use, this surveillance monitor can be wall or desktop mounted (mounting accessories not included) and has a wide 178° viewing angle that allows displayed images to be easily viewed from all around a room. The monitors user-friendly menu system makes configuration a straightforward task and a variety of integrated video ports, such as HDMI and DVI inputs, allow the monitor to be easily integrated into an existing CCTV system.
Key features & benefits
- 32” Full HD 1080p resolution display (16:9)
- 178° viewing angle allows the display to be seen from all around the room
- Power efficient LED backlight for reduced running costs and improved reliability
- 8ms response time minimises motion blur and ghosting effect
- Slim design and flexible mounting options for ease of installation
- Integrated 10W speaker is ideal for audio triggers or event alarms
Typical applications
The Hanwha Vision SMT-3232A is ideal for use in security control rooms where 24-hour surveillance is required, or in a reception area to allow staff to monitor specific locations such as entry and exit points.
Accessories
Included:
- Quick setup guide
- User manual CD
- Remote control and battery
- D-SUB cable
- RS232C(IN) adapter
- Power cord
- Cover-jack
- Screws
- Stereo to BNC & RCA
Key technical features for the Samsung Wisenet SMT-3232A
Monitor
|
|
Environment: | indoor |
Screen size: | 32" |
Screen type: | LED |
Aspect ratio: | 16:9 |
Resolution: | 1920 x 1080 |
Compatible video signals: | not given |
Speakers: | 1 |
Brightness: | 350 cd/m2 |
Viewing angle: | horizontal viewing angle: 178°, vertical viewing angle: 178° |
Contrast ratio: | 5000:1 |
Display colours: | 16.7 million |
Response time: | 8ms |
Multi Media input: | HDMI, VGA, DVI |
Design
|
|
Power: | AC 100-240VAC |
Power consumption: | 77W |
Operating temperature: | 0°C ~ 40°C |
Energy class: | not given |
Panel life: | 50,000 hours |
Mounting method: | desk or wall mountable |
VESA standard: | VESA DPM compatible |
Buttons: | power, plus, minus, up, down |
Dimensions: | 721.4 x 420.3 x 49.9 mm |
Weight: | 4.8kg |
Colour: | black |
Warranty: | 3-years |

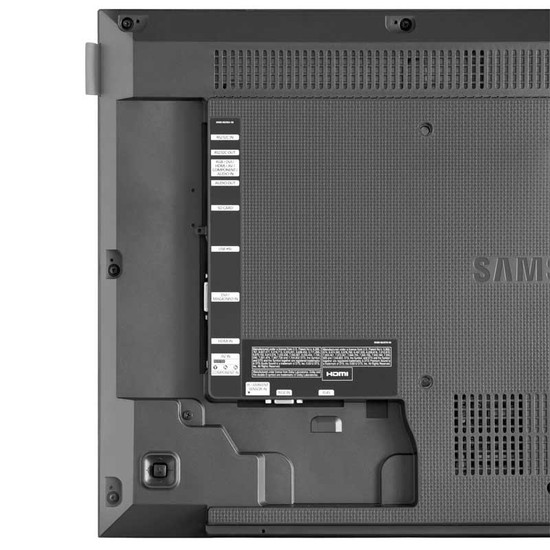

Connections
|
|
Video: | VGA, DVI, HMDI, USB |
Audio: | Stereo mini jack |
Other: | not given |
