| VS-8132U-RP PRO+

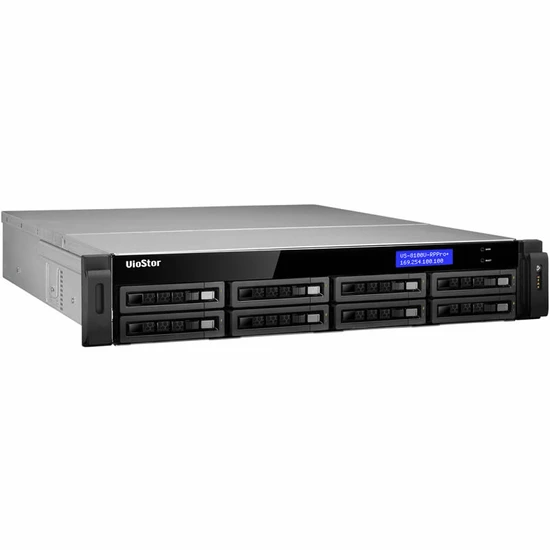

QNAP VioStor VS-8132U-RP PRO+ Network Video Recorder with 32 channels, up to 32TB storage, Linux-based, rackmountable

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is now discontinued, for alternative products see Synology Network Video Recorders (NVRs)

Overview of the QNAP VioStor VS-8132U-RP PRO+

Surveillance-grade, high-performance VS-8132U-RP PRO+ rackmountable network video recorder (NVR) from the QNAP VioStor range, with support for real-time video/audio recording for up to 32 cameras and with 8 HDD slots for up to 32TB storage capacity. Other high-level features include intelligent video, RAID, Dual-Core Intel Dual i3 processor and remote access via the QNAP VMobile app.

Suitable for use in large IP CCTV systems at enterprise-level, the high performance QNAP VS-8132U-RP PRO+ from the VioStor series of network video recorders features a Dual-Core Intel Dual i3 processor and 4GB RAM for the smooth recording of up to 32 network cameras. 8 HDD slots enables up to 32TB storage space and RAID and hot swapping support ensure video data is secure even if a drive fails. Linux-based, the VioStor VS-8132U-RP PRO+ delivers stable, robust recording protected against virus attack and system crash, and in addition to UPS support (UPS not included), provides a reliable 24/7 recording solution ideal for critical applications. The VS-8132U-RP PRO+ can be rackmounted for neat, compact installation, enabling later expansion and making the unit integrate easily into existing rackmounted systems.

The QNAP VioStor VS-8132U-RP PRO+ is easily installed in 6 steps using Internet Explorer and data can be backed up using the simple scheduled remote replication feature. The VS-8132U-RP PRO+ unit also offers intelligent video, easy video search, 4 Gigabit ports, dynamic e-map, multiple compression methods and advanced event management including real-time SMS alert and on screen pop-up on motion detection. Operators can access the NVR remotely using the free QNAP VMobile app available for iOS, Android and Windows devices, an ideal feature for business owners and managers.

Key features & benefits

  • Supports 32 channels - ideal for large IP video systems
  • 8 HDD slots provide up to 32TB storage space suitable for multi megapixel recordings (supports resolutions up to 10 megapixel)
  • Rackmountable form factor provides compact installation and makes integrating the unit into existing systems easy
  • Powerful Dual-Core Intel Core i3 processor and 4GB RAM enables high performance 400 Mbps throughput
  • Protected against virus attack and system crash with Linux-based operating system
  • Multi-stream support
  • Various recording modes can be configured to best suit the requirements, whilst utilising bandwidth and storage space
  • HDMI output for local HD monitoring
  • Video footage can be verified as real with digital water marking feature
  • 6 step set-up in Internet Explorer
  • PTZ, preset positioning, digital zoom and auto cruising camera control
  • Compatible with different browsers and platforms
  • Advanced event management
  • Dynamic e-map
  • Video can be searched by time, date and event
  • Digital watermarking
  • Scheduled remote replication
  • Intelligent video analytics capable of detecting motion, foreign or missing objects, loss of focus and camera obstruction
  • Fisheye camera support
  • Health scanning
  • Free to download VMobile app from QNAP
  • UPS support
  • 4 Gigabit LAN ports
  • Security controls including auto logoff, authority management, detailed event logs

Typical applications

The QNAP VioStor VS-8132U-RP-PRO+ network video recorder is ideal for large enterprise-level IP video installations that require the recording of multi-megapixel IP cameras, and can be used to expand existing rackmounted systems or to create a recording system that can easily be expanded upon in the future. Typical applications include traffic and city surveillance, offices, department stores and stadiums.



  • CD-ROM
  • Ethernet cable x 2
  • Power cord
  • Flat head screw x 35 (for 3.5” HDD)
  • Flat head screw x 32 (for 2.5” HDD)
  • Quick installation guide


  • HDD storage (please select from the above drop down menu)
Back To Top

Key technical features for QNAP VioStor VS-8132U-RP PRO+

Maximum no. of cameras:32
HDD:8 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive, hot-swappable and lockable tray
CPU and OS:Dual Core Intel® Core™ i3 3.3GHz processor, embedded-Linux
Maximum throughput:400 Mbps
Power:input: 100-240V AC, 47-63Hz, output: 300W
Form factor:2U, rackmount
Resolution:maximum 10 megapixel
Compression:H.264/MPEG-4/M-JPEG/MxPEG (depending on the camera models)
Frame-rate:up to 30 fps at 1080p, 720p, VGA for each channel
Viewing, detection & recording
Camera control:digital zoom, PTZ control
Playback control:play, pause, stop, reverse play, next/ previous frame, next/ previous video file, different speed control
Intelligent search:motion detection, missing object, foreign object, out of focus, and camera occlusion
Recording mode:continuous/manual/schedule recording/alarm recording/ multiple alarm recording schedules, auto snapshot
Alarm detection:motion detection, alarm input, connection failure, recording failure, user-defined event
Alarm notifications:video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output and user-defined action
Backup:schedule remote replication to a NAS on the local network
Mobile support:VMobile app for iOS, Android and Windows devices
USB drive backup:2 x USB 3.0 port (rear), 4 x USB 2.0 port (rear), support USB pen drive, USB hub, and USB UPS etc
LAN port:4 x Gigabit RJ-45 Ethernet port
Video output:1x HDMI, 1x VGA
Dimensions:88(H) x 439(W) x 520(D) mm
Weight:12.52 kg (net), 23.42 kg (gross)
Operating temperatures:0°C to 40°C
Power:input: 100-240V AC, 47-63Hz, output: 300W
Power consumption:130W write/read (with 8 x 1TB HDD installed)
Protocols supported:HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP
Security:authority management, host access control, auto log off, event logs, on-line users list, digital watermarking
