| VS-8132 PRO+

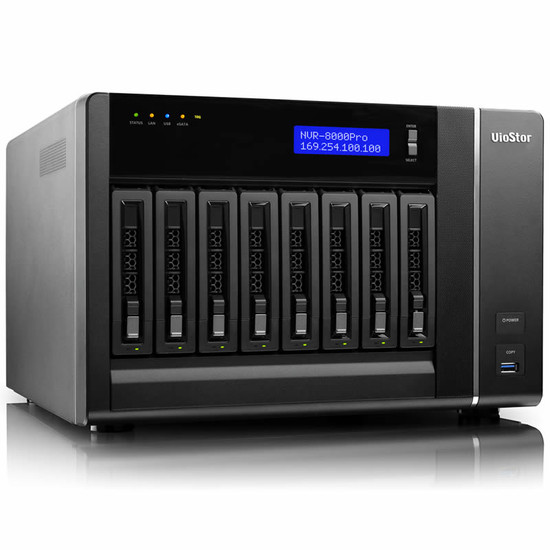

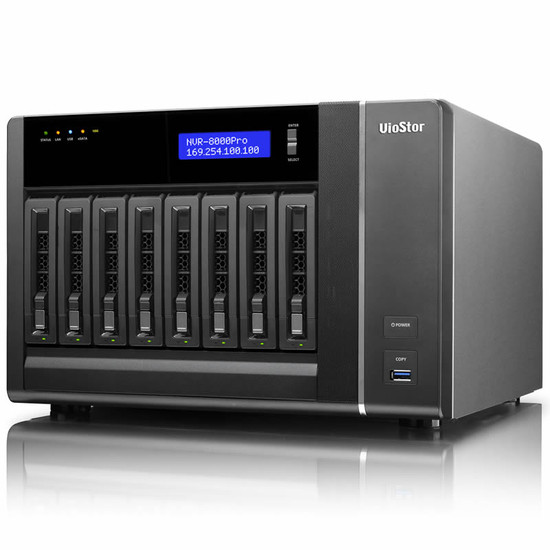

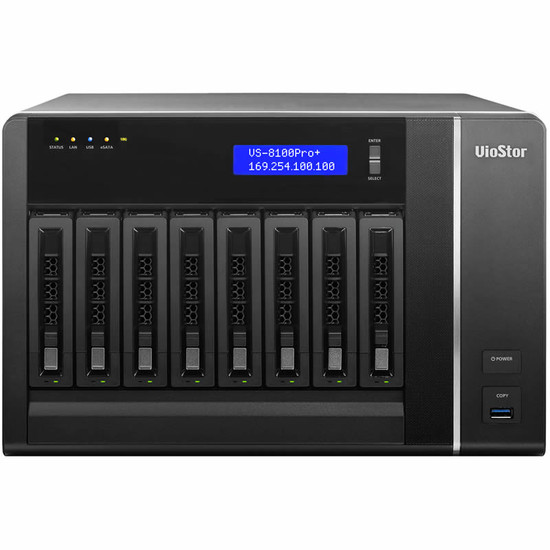

QNAP VioStor VS-8132 PRO+ Network Video Recorder with 32 channels, up to 32TB storage, Linux-based

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is discontinued, for alternatives please see Synology Network Attached Storage (NAS)

Overview of the QNAP VioStor VS-8132 PRO+

32 channel QNAP VioStor VS-8132 PRO+ network video recorder (NVR) from the powerful VioStor series, providing support for up to 32 cameras and up to 32TB storage space. Also with audio, intelligent video analytics and RAID capabilities.

With an Intel® Core™ i3-2120 processor, the robust and powerful Linux-embedded VS-8132 PRO+ from QNAP's VioStor series of network video recorders provides reliable CCTV recording for up to 32 IP cameras and is capable of storing up to 32TB across 8 drives with RAID and hot swapping capabilities, for stable, secure storage of high frame rate and up to 10 megapixel video footage. With multiple codec and wide compatibility with over 1000 IP camera models, the VS-8132 PRO+ delivers a flexible recording solution that is easy to install in 6 simple steps using Internet Explorer. A standalone tower unit with HDMI and VGA output, the VS-8132 PRO+ enables high quality local monitoring and is ideal for applications without a PC.

The QNAP VS-8132 PRO+ provides additional useful features including intelligent video analytics, smart recording, SMS alert on activity detection and dynamic e-map. Users can access video data remotely using the QNAP VMobile app, available for free download on iOS, Android and Windows devices.

key features & benefits

  • Ideal for large IP installations with up to 32 cameras
  • Powerful Intel® Core™ i3-2120 processor
  • Multiple compression formats for flexible integration
  • HDMI and VGA video output
  • Capable of recording cameras with resolutions up to 10 megapixel
  • Multi-server monitoring allows management of up to 128 channels
  • Dual display mode
  • Dynamic e-map
  • Intelligent video analytics and real-time SMS alert on activity detection
  • Linux-based operating system provides reliable performance
  • Real-time digital watermarking
  • Easy video searching using date, time or event
  • 6 step installation using Internet Explorer
  • Support for UPS (not included)
  • QNAP VMobile app for iOS, Android and Windows devices
  • High data redundancy with hot swappable RAID technology
  • Advanced event management
  • Intelligent automatic power on after power recovery

Typical applications

With support for 32 channels and storage space up to 32TB, the QNAP VioStor VS-8132 PRO+ network video recorder provides robust and powerful video recording ideal for medium to large IP video installations. Typical applications include hospitals, prisons, airports, shopping centres and government buildings.



  • CD-ROM
  • Ethernet cable x 2
  • Power cord
  • Flat head screw x 35 (for 3.5” HDD)
  • Flat head screw x 32 (for 2.5” HDD)
  • Quick installation guide


  • HDD storage (please select from the above drop down menu)
Back To Top

Key technical features for QNAP VioStor VS-8132 PRO+

Maximum no. of cameras:32
HDD:8 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive, hot-swappable and lockable tray
CPU and OS:Intel® Core™ i3-2120 processor, embedded-Linux
Maximum throughput:400 Mbps
Power:input: 100-240V AC, 50/60Hz, output: 350W
Resolution:maximum 10 megapixel
Compression:H.264/MPEG-4/M-JPEG/MxPEG (depending on the camera models)
Frame-rate:up to 30 fps at H.264, 720P for each channel
Viewing, detection & recording
Camera control:digital zoom, PTZ control
Playback control:play, pause, stop, reverse play, next/ previous frame, next/ previous video file, different speed control
Intelligent search:motion detection, missing object, foreign object, out of focus, and camera occlusion
Recording mode:continuous/manual/schedule recording/alarm recording/ multiple alarm recording schedules
Alarm detection:motion detection, alarm input, connection failure, recording failure, user-defined event
Alarm notifications:video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output and user-defined action
Backup:one-touch-auto-video-backup button to external USB, schedule remote replication to a NAS on the local network
Mobile support:VMobile app for iOS, Android and Windows devices
USB drive backup:2 x USB 3.0 (front:1; back:1), 4 x USB 2.0 (rear:4), front: for USB storage device (one touch auto video backup), rear: for UPS device
LAN port:2 x Gigabit RJ-45 Ethernet port
Video output:1x HDMI, 1x VGA
Dimensions:217.5(H) x 327(W) x 321.2(D) mm
Weight:8.39 kg (net)
Operating temperatures:0°C to 40°C
Power:input: 100-240V AC, 50/60Hz, Output: 350W
Power consumption:101W write/read (with 8 x 1TB HDD installed)
Protocols supported:HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP
Security:authority management, host access control, auto log off, event logs, on-line users list, digital watermarking, K-Lock security slot for theft prevention
