| VS-8124U-RP PRO+

QNAP VioStor VS-8124U-RP PRO+ Network Video Recorder with 24 channels, up to 32TB storage, Linux-embedded, rackmountable

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is now discontinued, for alternative products see Synology Network Video Recorders (NVRs)

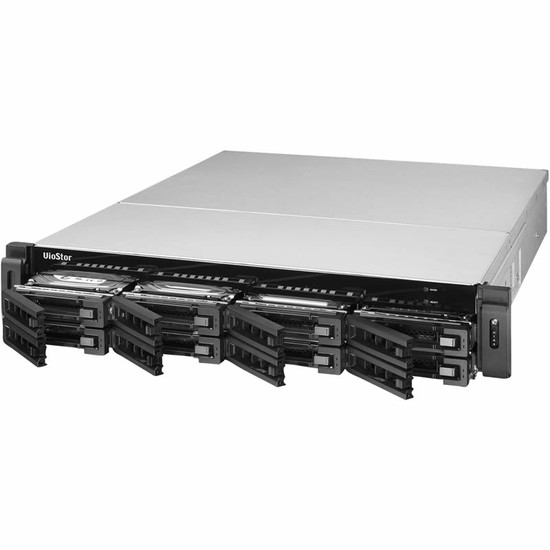

Overview of the QNAP VioStor VS-8124U-RP

Enterprise-grade and rackmountable VS-8124U-RP PRO+ network video recorder (NVR) from the QNAP VioStor series, with support for up to 24 cameras and up to 32TB HDD capacity. Powerful Dual-Core Intel Core i3 processor, 400 Mbps throughput, real-time audio monitoring, e-map and advanced event management. Mobile access available through free QNAP VMobile app.

The high-end QNAP VS-8124U-RP PRO+ rackmountable network video recorder from the VioStor series provides real-time video/audio recording for up to 24 cameras, and provides up to 32TB of storage space across 8 bays. Featuring a powerful Dual-Core Intel Core i3 processor and Linux-based operating system, this NVR unit delivers high performance and stable CCTV recording ideal for medium to large professional IP video installations. The HDMI output enables full HD local display, and the unit can be neatly installed in a rack to easily expand an existing IP video recording system.

Easy to install in 6 simple steps using Internet Explorer, the VioStor VS-8124U-RP PRO+ network video recorder provides user-friendly installation and simple video backup using the scheduled remote replication. Various RAID levels are supported to provide high reliability, and if a drive fails it can be replaced by hot swapping without turning off the server. Additional useful features of the high-level QNAP VioStor VS-8124U-RP PRO+ NVR include smart recording, 4 Gigabit LAN ports, multiple codec, advanced event management and dynamic e-map. The VS-8124U-RP PRO+ NVR can also be accessed remotely using the free QNAP VMobile app.

Key features & benefits

  • 24 channel support, ideal for medium to large IP video installations
  • Up to 32TB HDD space for storing multi-megapixel and high frame rate CCTV footage
  • Dual-core Intel Core i3 processor provides 400 Mbps for smooth recording
  • Unit can be neatly rackmounted to integrate with existing systems
  • Linux operating system provides reliability and stability, preventing virus attack and system crash
  • Recording can be set to continuous in low quality, switching to high quality to record events
  • Multi-stream support
  • Can record cameras with resolutions up to 10 megapixel
  • Real-time digital watermarking prevents unauthorised modification being made to video footage, increasing authenticity
  • HDMI local display output for full HD 1080p monitoring
  • PTZ control, preset positioning and auto cruising provide in depth coverage of a scene
  • Advanced event management including on screen pop alert for events and various other actions
  • Quick set-up
  • Easy video searching by time and date using the local playback interface
  • Cross browser and platform support
  • Dynamic e-map for indication of the location of an IP camera
  • Intelligent video analytics include motion detection, foreign object, missing object, out of focus and camera occlusion
  • Easy backup
  • Remote access to CCTV recordings using free QNAP VMobile app
  • Support for fisheye dewarping
  • Advanced security controls including auto logoff, authority management and detailed event logs
  • Advanced RAID with hot-swap design, online RAID capacity expansion and online RAID level migration
  • Health scanning
  • UPS support to provide 24/7 operation (UPS not included)
  • Four Gigabit LAN ports to provide failover, load balancing and multi-IP settings

Typical applications

Rackmountable, with 24 channels and up to 32TB storage capacity, the QNAP VioStor VS-8124U-RP network video recorder delivers high performance, reliable CCTV recording ideal for enterprise-level applications with medium to large IP video installations where existing NVRs may be rackmounted. Typical applications could include hospitals, shopping centres, office buildings and multi-storey car parks.



  • CD-ROM
  • Ethernet cable x 4
  • power cord x 2
  • Flat head screw x 32 (for 3.5" HDD)
  • Flat head screw x 32 (for 2.5" HDD)
  • Quick installation guide
  • 2U rail kit: SP-X79U-RAIL-KIT

Optional (please select from the above drop down menu):

  • Hard drive disk space
Back To Top

Key technical features for QNAP VioStor VS-8124U-RP PRO+

Maximum no. of cameras:24
HDD:8 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive, hot-swappable and lockable tray
CPU and OS:Dual Core Intel® Core™ i3 3.3GHz processor, embedded-Linux
Maximum throughput:400 Mbps
Power:input: 100-240V AC, 47-63Hz, output: 300W
Form factor:2U, rackmount
Resolution:maximum 10 megapixel
Compression:H.264/MPEG-4/M-JPEG/MxPEG (depending on the camera models)
Frame-rate:up to 30 fps at 1080p, 720p, VGA for each channel
Viewing, detection & recording
Camera control:digital zoom, PTZ control
Playback control:play, pause, stop, reverse play, next/ previous frame, next/ previous video file, different speed control
Intelligent search:motion detection, missing object, foreign object, out of focus, and camera occlusion
Recording mode:continuous/manual/schedule recording/alarm recording/ multiple alarm recording schedules, auto snapshot
Alarm detection:motion detection, alarm input, connection failure, recording failure, user-defined event
Alarm notifications:video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output and user-defined action
Backup:schedule remote replication to a NAS on the local network
Mobile support:VMobile app for iOS, Android and Windows devices
USB drive backup:2 x USB 3.0 port (rear), 4 x USB 2.0 port (rear), support USB pen drive, USB hub, and USB UPS etc
LAN port:4 x Gigabit RJ-45 Ethernet port
Video output:1x HDMI, 1x VGA
Dimensions:88(H) x 439(W) x 520(D) mm
Weight:12.52 kg (net), 23.42 kg (gross)
Operating temperatures:0°C to 40°C
Power:input: 100-240V AC, 47-63Hz, output: 300W
Power consumption:130W write/read (with 8 x 1TB HDD installed)
Protocols supported:HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP
Security:authority management, host access control, auto log off, event logs, on-line users list, digital watermarking
