| VS-8124 PRO+

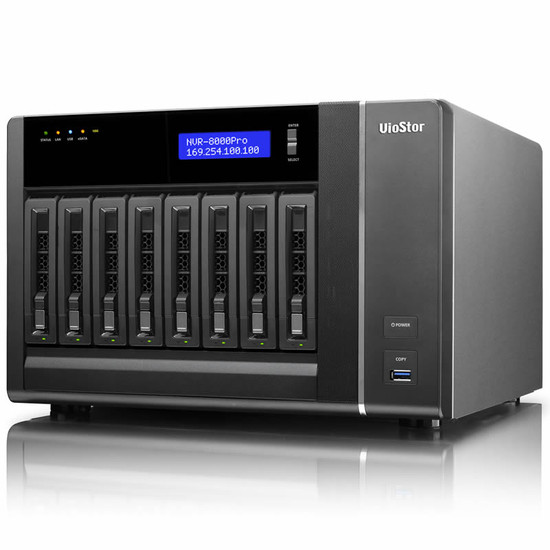

QNAP VioStor VS-8124 PRO+ Network Video Recorder with 24 channels, up to 32TB storage, Linux-embedded

Free delivery on mainland UK and most EU countries. Check delivery charges to where you are.
Hurry! Only left

This product is now discontinued, for alternative products see Synology Network Video Recorders (NVRs)

Overview of the QNAP VioStor VS-8124 PRO+

Linux-based QNAP VioStor VS-8124 PRO+ network video recorder with 24 channels and up to 32TB HDD capability, providing powerful video recording ideal for use in medium to large IP video installations. Also supports intelligent video analytics, audio, RAID and SMS alert

Supporting up to 24 channels, the QNAP VS-8124 PRO+ network video recorder from the QNAP VioStor series provides high quality real-time video and audio recording for cameras with resolutions up to 10 megapixel. The 8 drives provide a maximum of 32TB storage, with hot swappable RAID technology. Capable of H.264, MxPEG, MPEG-4 and M-JPEG recording, the VS-8124 PRO+ delivers a flexible recording solution ideal for a wide range of applications. Linux-based, this standalone tower unit can be easily installed via Internet Explorer and also provides HDMI or VGA local display output. Compatible with over 1000 IP camera models, the QNAP VS-8124 PRO+ NVR is easy to integrate into existing CCTV installations.

Additional handy features include real-time SMS and email alerts, dynamic e-map, intelligent video analytics and digital watermarking. The QNAP VMobile app enables convenient remote access to video using mobile devices.

Key features & benefits

  • Real-time monitoring and recording from up to 24 cameras
  • 32TB HDD space
  • High performance Intel® Core™ i3-2120 processor
  • Multiple codec
  • Records cameras with resolutions up to 10 megapixel
  • HDMI output removes the need for a PC
  • Multi-server monitoring
  • Dual display mode
  • Dynamic e-map
  • Video can be searched by time, date and event
  • Intelligent video analytics
  • Multi-view playback from multiple NVR servers
  • Real-time digital watermarking
  • Real-time SMS and email alert
  • Simple installation
  • Linux-based
  • Advanced RAID with hot swappable design
  • Online RAID extension and level migration
  • UPS support
  • Intelligent automatic power on after power recovery
  • VMobile app for handy remote access

Typical applications

The QNAP VioStor VS-8124 PRO+ network video recorder is ideal for applications that require a standalone, powerful and stable CCTV recording solution. Typical examples include medium to large sized IP video installations in applications such as shopping centres, supermarkets, storage facilities, warehouses and production lines.



  • CD-ROM
  • Ethernet cable x 2
  • Power cord
  • Flat head screw x 35 (for 3.5” HDD)
  • Flat head screw x 32 (for 2.5” HDD)
  • Quick installation guide


  • HDD storage (please select from the above drop down menu)
Back To Top

Key technical features for QNAP VioStor VS-8124 PRO+

Maximum no. of cameras:24
HDD:8 x 3.5-inch SATA 6Gb/s, SATA 3Gb/s hard drive, hot-swappable and lockable tray
CPU and OS:Intel® Core™ i3-2120 processor, embedded-Linux
Maximum throughput:400 Mbps
Power:input: 100-240V AC, 50/60Hz, output: 350W
Resolution:maximum 10 megapixel
Compression:H.264/MPEG-4/M-JPEG/MxPEG (depending on the camera models)
Frame-rate:up to 30 fps at H.264, 720P for each channel
Viewing, detection & recording
Camera control:digital zoom, PTZ control
Playback control:play, pause, stop, reverse play, next/ previous frame, next/ previous video file, different speed control
Intelligent search:motion detection, missing object, foreign object, out of focus, and camera occlusion
Recording mode:continuous/manual/schedule recording/alarm recording/ multiple alarm recording schedules
Alarm detection:motion detection, alarm input, connection failure, recording failure, user-defined event
Alarm notifications:video recording, email alert, SMS alert, buzzer, PTZ camera control, alarm output and user-defined action
Backup:one-touch-auto-video-backup button to external USB, schedule remote replication to a NAS on the local network
Mobile support:VMobile app for iOS, Android and Windows devices
USB drive backup:2 x USB 3.0 (front:1; back:1), 4 x USB 2.0 (rear:4), front: for USB storage device (one touch auto video backup), rear: for UPS device
LAN port:2 x Gigabit RJ-45 Ethernet port
Video output:1x HDMI, 1x VGA
Dimensions:217.5(H) x 327(W) x 321.2(D) mm
Weight:8.39 kg (net)
Operating temperatures:0°C to 40°C
Power:input: 100-240V AC, 50/60Hz, Output: 350W
Power consumption:101W write/read (with 8 x 1TB HDD installed)
Protocols supported:HTTP, TCP/IP, SMTP, DHCP, Static IP, DNS, DDNS, FTP, NTP, UPnP
Security:authority management, host access control, auto log off, event logs, on-line users list, digital watermarking, K-Lock security slot for theft prevention
