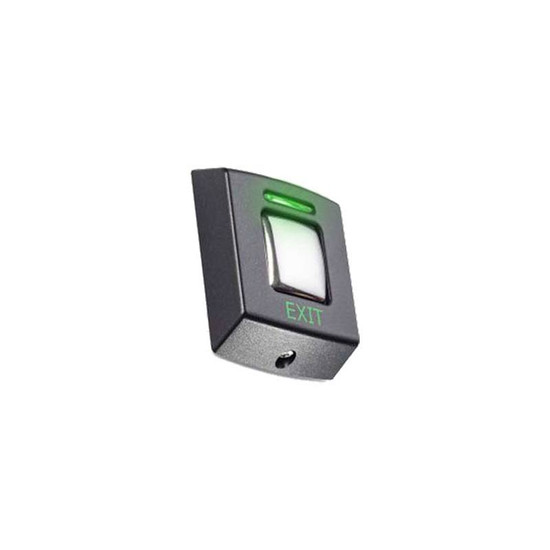

Overview of the Paxton Exit Button - E50
- Push to exit button for access controlled doors
- Compatible with Paxton Net2 systems
- Green LED shows door release status
- Indoor use only
- 10 to 14V DC operation with low 70mA current consumption
The Paxton Exit Button E50 is a push to exit button designed for use with Paxton Net2 access control systems. Compact and easy to install, the unit measures 58mm x 50mm and can be surface mounted.
The button features a green LED that remains illuminated and flashes when pressed to confirm door release. Designed for internal use, it provides a simple and reliable exit solution for Paxton Net2 controlled doors. Supplied with a black cover, white/grey covers are available on request.
Back To TopKey technical features of the Paxton Exit Button - E50
System Specifications |
|
| Cable length: | 5m/16ft (Screw connector - None) |
| Cable extension length and type: | ≤ 25m/82ft - Belden 9538/ Belden 5506FE (USA)
≤ 100m/328ft - Belden 9540/ Belden 5306FE (USA) |
| Additional coloured covers available: | Yes |
| Hands free compatible: | No |
Electrical |
|
| Operating voltage: | 10 - 14V DC |
| Current consumption: | 70mA |
Environment |
|
| Operating temperature: | -20°C - +55°C
-4°F - +131°F |
| Moisture resistance: | No |
| Vandal resistance: | Medium |
| Dimensions: | 58mm (H) x 50mm (W) |
